LED, vandal resistant, wet location, IP
vandal resistant, IP rated, LED

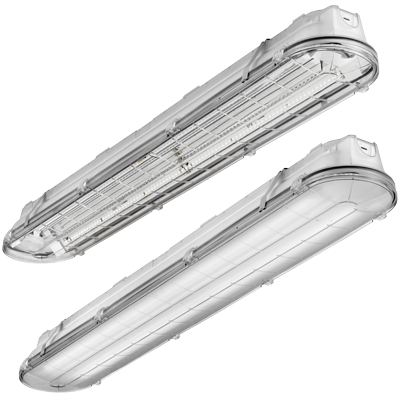

EVT4 LED Linear

LED Architectural Vandal-Resistant Enclosed and Gasketed Industrial Linear Fixture

By Holophane

    DLC PremiumCA Title 20Buy America(n) Option Available
  • Overview
  • Specifications
The EVT4 LED series is an energy-efficient, enclosed and gasketed industrial LED fixture utilizing a vandal resistant polycarbonate body. With a shallow 4 1/8” overall depth, the 8 1/4”-wide EVT4 LED is available in 4’ lengths in a variety of lumen packages. The housing is UV-stabilized, injection-molded, impact-resistant, frosted polycarbonate housing with continuous poured-in-place, closed-cell gasket. 20-gauge steel channel and channel cover. Aluminum sheet metal board plate for thermal conduction and support. Fixture design allows for uplight. The optics are UV-stabilized, injection-molded, impact-resistant, clear transparent, polycarbonate lens with aesthetic rib detail (.080" thick). Clear transparent, tamper-resistant, polycarbonate latches standard (8 tamper-resistant screws included). Stainless steel latches also available. For mounting stainless steel surface spring-mounting brackets standard (2 included). A variety of stainless steel mounting options available: surface conduit entry on each end and on top, j-box mounting and mounting brackets for suspension with aircraft cable (cable not included). Optional stainless steel V-hooks available for chain hanging (chain not included). For Parking Garages, Industrial facilities, Canopies, Cold Storage Facilities, Transit Stations, Stairwells, Locker Rooms, and Hospitals. Certain airborne contaminants can diminish the integrity of acrylic. Please refer to the Acrylic Environmental Compatibility Chart (HL-2445) for suitable uses.
Read More
Read Less
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Compliance Listing BAA, CA Title 20, DLC Premium, DLC Standard
Environmental Listing IP65, IP66, Wet Location
Regulatory Listing CSA
Product Type Linear
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 277, 347, 347-480, 480, HVOLT, MVOLT
Mounting Type Surface, Suspended
Mounting Location Ceiling
Primary Material Polycarbonate
Architectural Style Traditional
Series EVT4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVT4-LED_.pdf EVT4 Rough Service Linear LED 1/10/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EVT4 LED Installation Instructions U2131602HOL 7/31/2019 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures EVT4 LED and FLUOR Brochure EVT4 LED and FLUOR Brochure View
    Brochures EVT4 LED Brochure EVT4 LED Vapor-Tight Linear Brochure View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 9/26/2022 View
