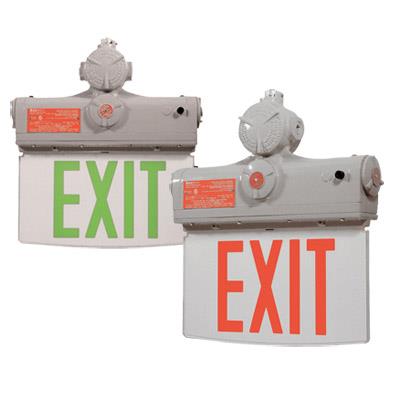

HDXE Emergency Exit Sign

Hazardous Location Emergency Exit Sign

By Holophane

  • Overview
  • Specifications
Suitable for use in Class I, Div. 1, Groups C& D, Zone 1, Groups IIA & IIB; Zone 2, Groups IIA, IIB + H2 &IIC; Class I, Div. 2, Groups A, B, C & D; Class II Div. 1&2, Groups E, F & G; and Class III hazardous location areas. Certain airborne contaminants can diminish the integrity of acrylic. Please refer to the Acrylic Environmental Compatibility Chart (HL-2445) for suitable uses. The HDX Series features an LED light engine and a copper free cast aluminum enclosure designed to withstand the pressure of internal arc generated explosions without allowing propagation to the hazardous atmosphere. Available in wall/pendant or end mount configurations with 1/2" NPT conduit entries.
Read More
Read Less
Light Source LED - Static
Environmental Listing Class I, Div 1, Class I, Div 2, Class II, Div 1, Class II, Div 2, Class III, IP65, Wet Location
Regulatory Listing UL
Product Type Emergency Exit Sign
Mounting Type Pendant, Surface
Mounting Location Ceiling, Wall
Primary Material Aluminum
Series HDXE
