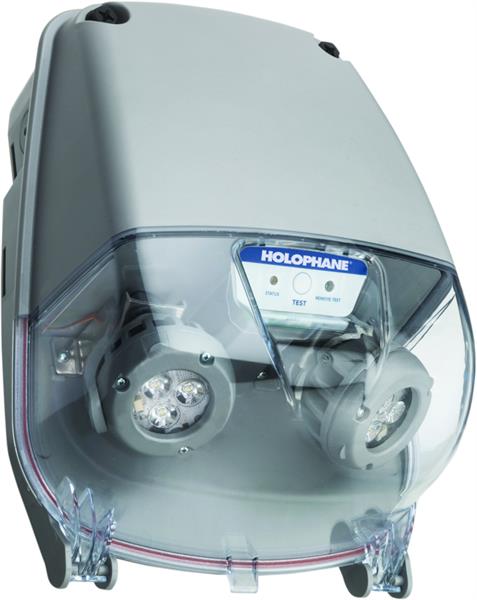

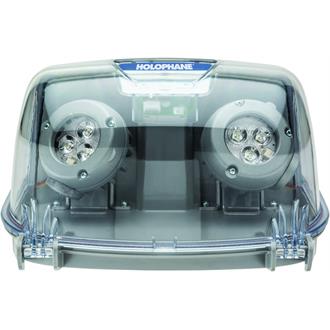

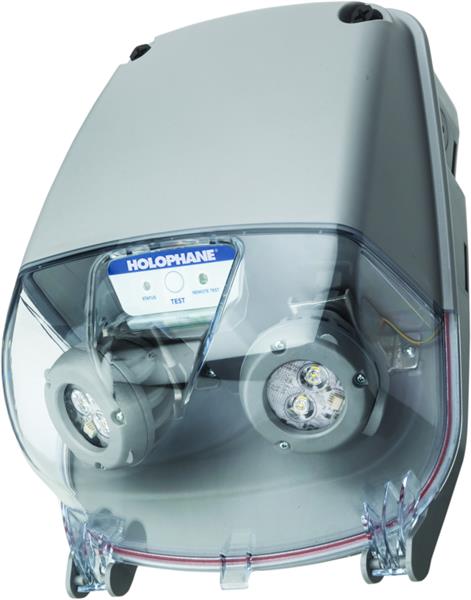

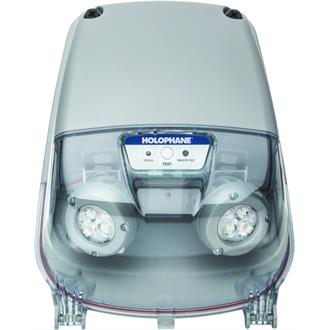

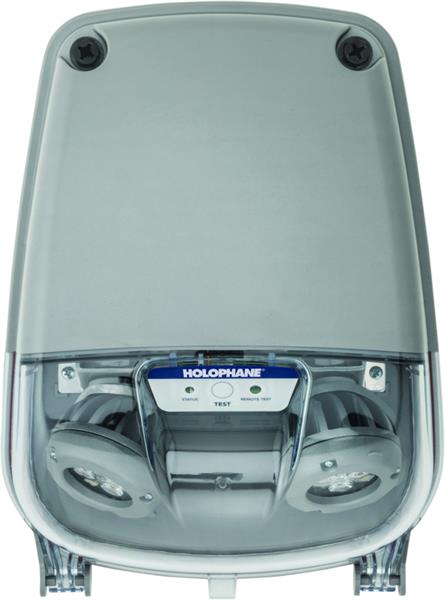

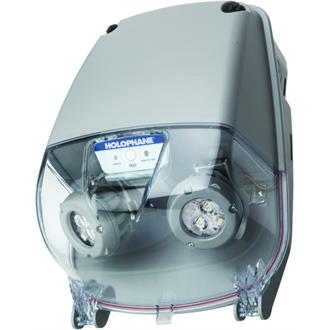

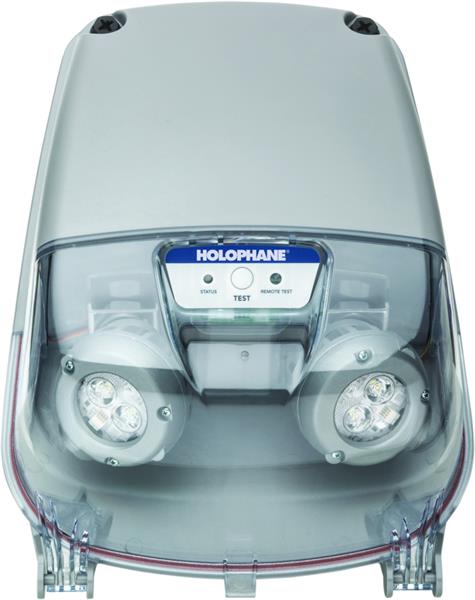

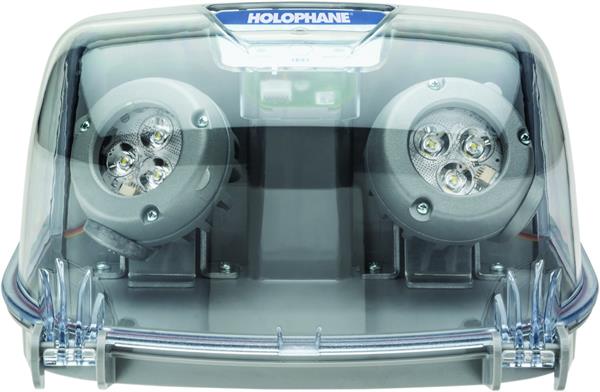

DSL46 Emergency Lighting Unit

DeSoto™ Industrial LED NEMA 4X Rated Emergency Light

By Holophane

    CA Title 20Buy America(n)
  • Overview
  • Specifications

The DeSoto™ DSL46 is NEMA 4X, IP66 and NSF rated providing protection in hose-down or harsh environments where moisture, dirt and dust would limit the life of ordinary emergency lighting.

The DeSoto™ DSL46 comes standard with Quick-mounting brackets for ease of installation and provides great spacing at higher mounting heights. The upgraded Lithium Iron Phosphate batteries provide extended run-times and remote capacity. The remote testing and self-diagnostics feature meets and exceeds code required testing while significantly reducing the time and cost of compliance. The DSL46 provides a minimum of 90-minutes of illumination upon loss of AC power with constant light output over the full discharge period.


  • STAR Self-Testing Automated Reporting option
Read More
Read Less
Light Source LED - Static
Lumens 640 LM, 1100 LM, 2200 LM
CCT / LED Color 5000 K
CRI 73
Compliance Listing BAA, CA Title 20
Environmental Listing IP66, NEMA 4X, NSF, Wet Location
Regulatory Listing CSA, NFPA 101, NFPA 70, NOM
Product Type Emergency Lighting Unit
Voltage Rating 120-347
Mounting Type Surface
Mounting Location Ceiling, Wall
Primary Material Thermoplastic
Series DSL46

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET DSL3_DSL46.pdf DESOTO™ Industrial LED Emergency Lights, DSL3 Wet Location & DSL46 NEMA 4X 4/12/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00070-002_Rev A.pdf RTKITHLP remote tester kit installation instruction sheet 12/5/2019 View
    Installation Instructions DSL46 INSTALLATION INSTRUCTIONS 912-00032-002 REV J.pdf DSL46 Emergency Lighting Unit installation instruction sheet (English/French/Spanish), Rev J 12/17/2021 View
    Material Safety Data Sheet ChangHong Grand-Pro Tech Co.,Ltd., SDS-12.8V-6000mAh-4S2P.pdf SDS sheet for battery ELB 12P806LTPCW & ELB 12P806LTPCWH, 12.8V, 6.0Ah (EHO, EHO CW) 3/16/2022 View
    Material Safety Data Sheet ChangHong Grand-Pro Tech Co.,Ltd., SDS-9.6V-3000mAh-3S1P.pdf SDS sheet for battery ELB 9P63LTPCW & ELB 9P63LTPCWH, 9.6V, 3.0Ah(STD and STD CW battery types) 3/16/2022 View
    Material Safety Data Sheet SDS-Lithium-Iron-Phosphate_9.6V-6000mAh-3S2P.pdf SDS sheet for battery ELB 9P606LTPCW & ELB 9P606LTPCWH, 9.6V 6.0AH, (HO, HO CW) 3/16/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Holophane Life Safety Portfolio Holophane Life Safety Portfolio 12/27/2021 View
    Sell Sheet DeSoto_Sell_Sheet.pdf DeSoto Sell Sheet PDF 8/19/2021 View
    White Paper Non Title 20 Life Safety Flyer Non Title 20 Life Safety Flyer 2/24/2021 View
