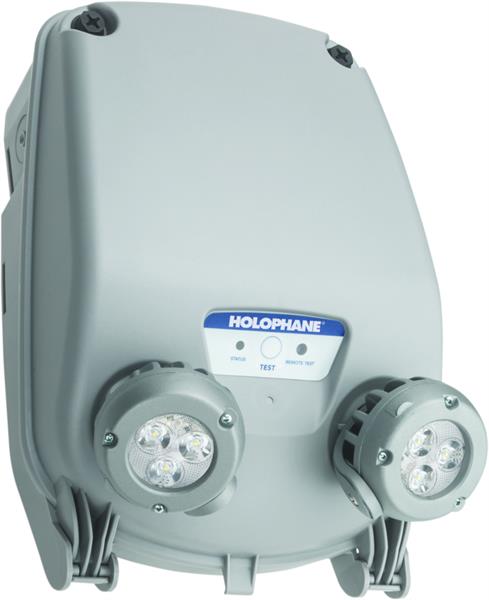

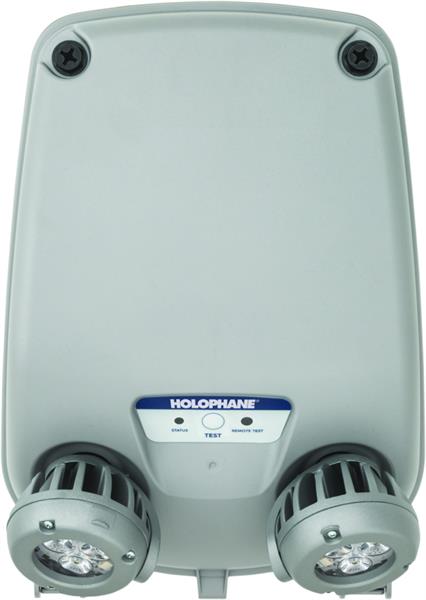

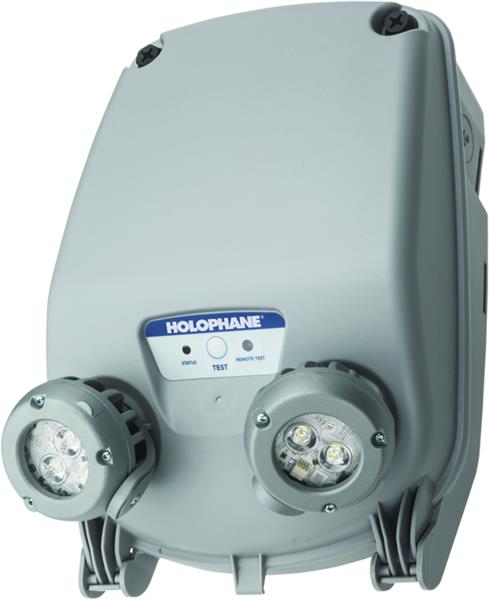

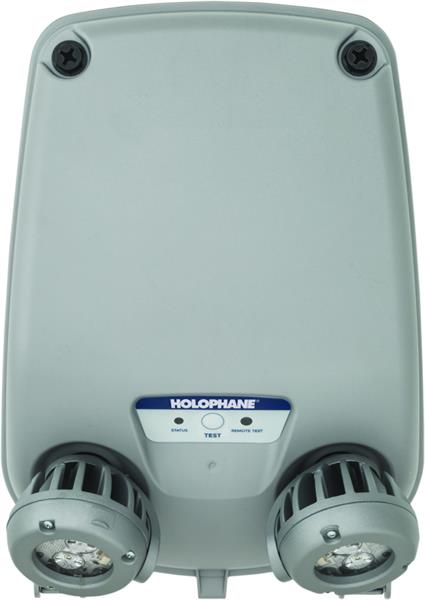

DSL3 Emergency Lighting Unit

DeSoto™ Industrial LED Wet Location Emergency Light

By Holophane

    CA Title 20
  • Overview
  • Specifications
DeSoto™ DSL3 features a vertically-oriented housing ideal for light industrial mounting applications such as a pole, I-beam or Unistrut.

The DeSoto™ DSL3 comes standard with Quick-mounting brackets for ease of installation and provides great spacing at higher mounting heights. The upgraded Lithium Iron Phosphate batteries provide extended run-times and remote capacity. The remote testing and self-diagnostics feature meets and exceeds code required testing while significantly reducing the time and cost of compliance. The DSL3 provides a minimum of 90-minutes of illumination for the rated wattage upon loss of AC power with constant light output over the full discharge period.
  • STAR Self-Testing Automated Reporting option
Read More
Read Less
Light Source LED - Static
Lumens 640 LM, 1100 LM, 2200 LM
CCT / LED Color 5000 K
CRI 73
Compliance Listing CA Title 20, FCC 47CFR Part 15 Consumer
Environmental Listing Wet Location
Regulatory Listing C-UL-US, NFPA 101, NFPA 70, NOM
Product Type Emergency Lighting Unit
Voltage Rating 120-347
Mounting Type Surface
Mounting Location Ceiling, Wall
Primary Material Thermoplastic
Series DSL3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET DSL3_DSL46.pdf DESOTO™ Industrial LED Emergency Lights, DSL3 Wet Location & DSL46 NEMA 4X 1/30/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00070-002_Rev A.pdf RTKITHLP remote tester kit installation instruction sheet 12/5/2019 View
    Installation Instructions DSL3 INSTALLATION INSTRUCTIONS 912-00031-002 REV K.pdf DSL3 Emergency Lighting Unit installation instruction sheet (English/French/Spanish), Rev K 12/17/2021 View
    Material Safety Data Sheet ChangHong Grand-Pro Tech Co.,Ltd., SDS-12.8V-6000mAh-4S2P.pdf SDS sheet for battery ELB 12P806LTPCW & ELB 12P806LTPCWH, 12.8V, 6.0Ah (EHO, EHO CW) 3/16/2022 View
    Material Safety Data Sheet ChangHong Grand-Pro Tech Co.,Ltd., SDS-9.6V-3000mAh-3S1P.pdf SDS sheet for battery ELB 9P63LTPCW & ELB 9P63LTPCWH, 9.6V, 3.0Ah(STD and STD CW battery types) 3/16/2022 View
    Material Safety Data Sheet SDS-Lithium-Iron-Phosphate_9.6V-6000mAh-3S2P.pdf SDS sheet for battery ELB 9P606LTPCW & ELB 9P606LTPCWH, 9.6V 6.0AH, (HO, HO CW) 3/16/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Holophane Life Safety Portfolio Holophane Life Safety Portfolio 12/27/2021 View
    Sell Sheet DeSoto_Sell_Sheet.pdf DeSoto Sell Sheet PDF 8/19/2021 View
    White Paper Non Title 20 Life Safety Flyer Non Title 20 Life Safety Flyer 2/24/2021 View
