BARFK Low Bay Retrofit

Bantam LED Low Bay Retrofit Kit

By Holophane

    DLC Standard / Premium
  • Overview
  • Specifications

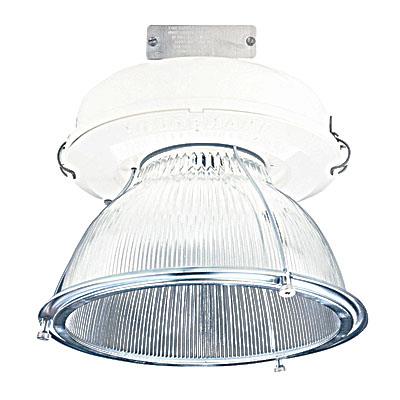

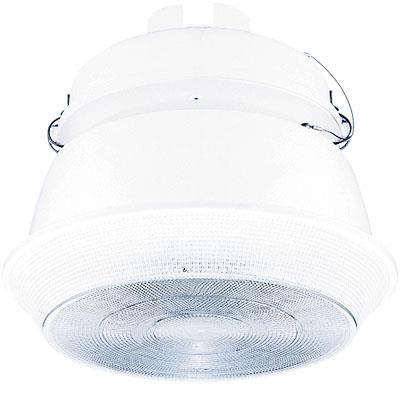

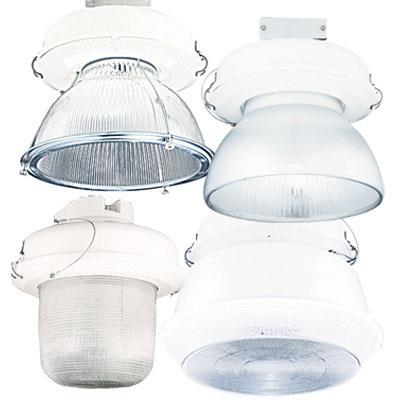

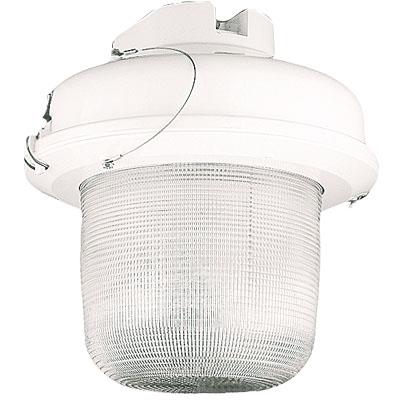

Bantam 2000 Series retrofit kit is the perfect fixture for a variety of heavy-duty industrial and low-ceiling height applications. Typical applications for luminaires in the Bantam 2000 Series include mezzanines, parking garages, retail stores, and stairwells. Low-profile design characterizes units in the Bantam 2000 Series, providing clearance in low ceiling heights. Bantam 2000 Series fixtures are available in a choice of four rugged glass reflector or refractor designs that efficiently provide solutions for a variety of environments. Rated for ambient temperatures up to 77°F (25°C). Bantam 2000 Series fixtures are also UL, IP65, and Wet or Damp Locations listed.
Read More
Read Less
Light Source LED - Static
Lumens 5000 LM, 8000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70, 80
Compliance Listing DLC Premium, DLC Standard
Environmental Listing Wet Location
Regulatory Listing cULus Classified
Product Type Retrofit Kit
Dimming Protocol 0-10V
Voltage Rating 120-277
Mounting Type Fixture Embedded
Mounting Location Fixture
Primary Material Aluminum
Architectural Style Traditional
Series BARFK

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET BALED-BARFK Bantam 2000 LED & BARFK LED Retrofit Kit Spec Sheet 8/4/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions BALED Installation Instructions IM-353-B View
    Installation Instructions BARFK Installation Instructions IM-358-F 6/25/2021 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet BALED-BARFK Replacement Parts LED Board, Driver, Lens, SPD, Fuse Kit, and Mounting Arm Repair Kits 7/28/2021 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Bantam 2000 LED Flyer Bantam 2000 LED Flyer View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 10/13/2021 View
