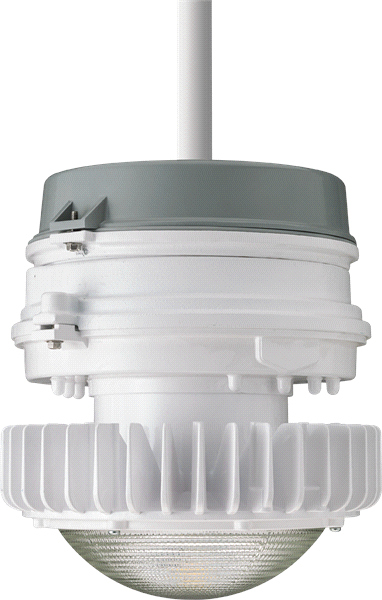

PXLW AR Top Cap Adapter

Petrolux® PXLW LED Low Bay Adapter

By Holophane

    DLC Standard / PremiumCA Title 20
  • Overview
  • Specifications

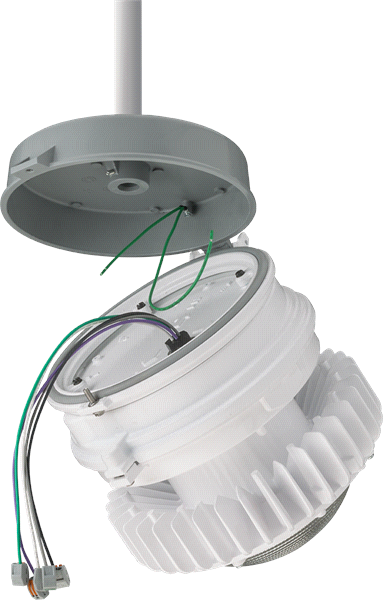

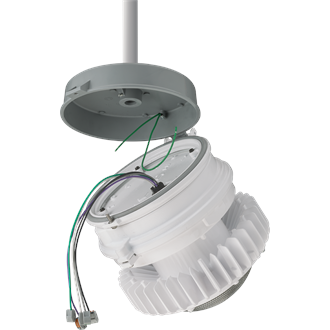

The ultra-lightweight PXLW Top Cap Adapter is designed to retrofit the most common low bay HID fixtures without the costly and time-consuming drawback of rewiring and replacing the full fixture. In just a few minutes, you can simply use the existing conduit and top cap to install the adapter for an energy-efficient LED upgrade.
Read More
Read Less
Light Source LED - Static
Lumens 3000 LM, 5000 LM, 8000 LM, 10,000 LM
CCT / LED Color 3000 K
CRI 70, 80, 90
Compliance Listing CA Title 20, DLC Premium, DLC Standard
Environmental Listing IP65, IP66, IP67, Marine Rated, NEMA 4X, Wet Location
Regulatory Listing C-UL-US
Product Type Low Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 277-480, 347, 347-480, 480, XVOLT
Mounting Type Arm Mount, Pendant, Pole Mount, Surface, Suspended, Yoke
Mounting Location Ceiling, Fixture, Pole, Wall
Primary Material Aluminum
Architectural Style Traditional
Series PXLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PXLW_ Petrolux LED Low Bay 6/6/2022 View
    SPEC SHEET PXLW_AR_ Petrolux LED Low Bay Top Cap Adapter 6/6/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IN-24-C HSCK Safety Chain Kit 4/14/2020 View
    Installation Instructions PXLW Instructions IM-440-E.pdf IM-440-E 6/30/2021 View
    Installation Instructions PXLW_AR Instructions IM-456-C.pdf IM-456-C 6/30/2021 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet PXLW Replacement Parts.pdf Petrolux (PXLW) Replacement Kits 1/28/2022 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 9/26/2022 View
    Brochures Petrolux PXLW Brochure Petrolux PXLW Brochure 10/7/2021 View
    Brochures XVOLT Driver Protection Holophane XVOLT Zeta Shield Driver Protection 1/24/2022 View
    FAQ XVOLT Driver Protection FAQ Holophane XVOLT Zetashield Driver Protection FAQ 7/19/2022 View
