PXLH Low Bay

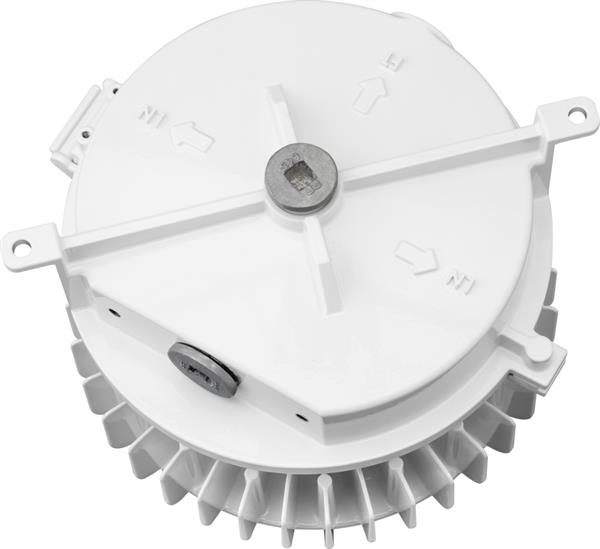

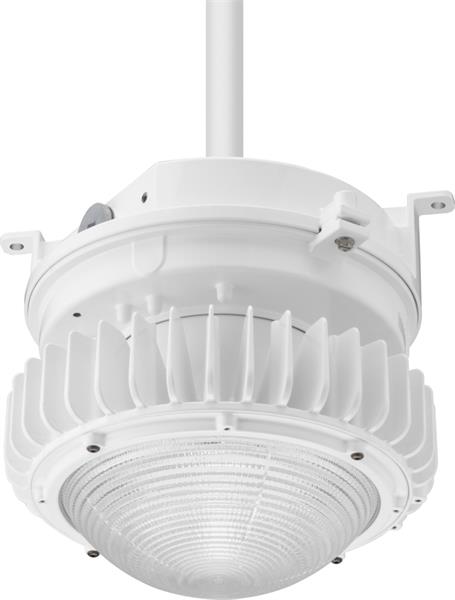

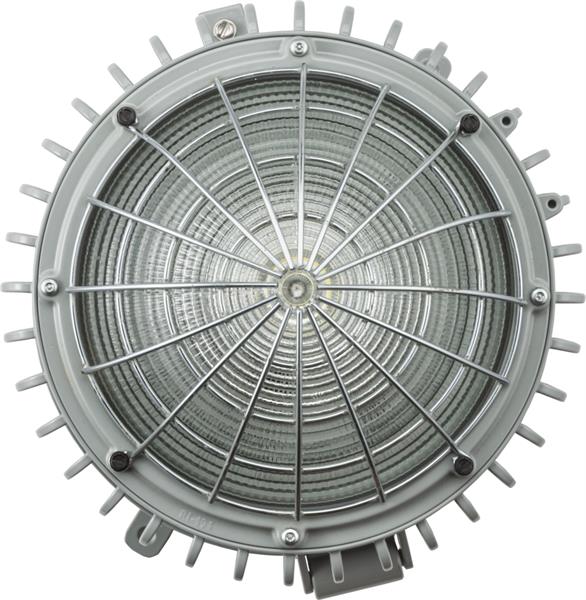

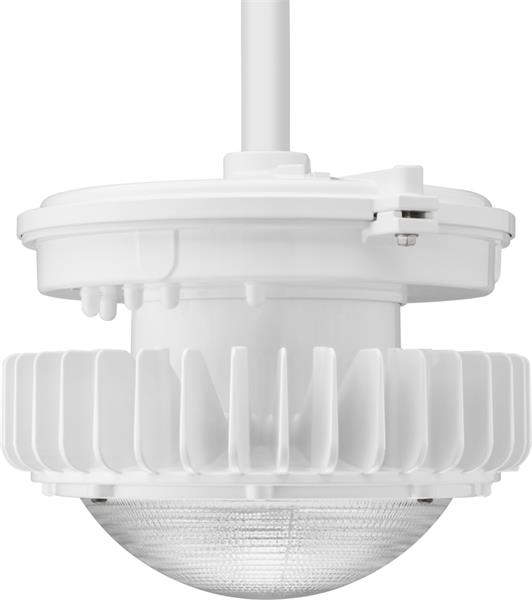

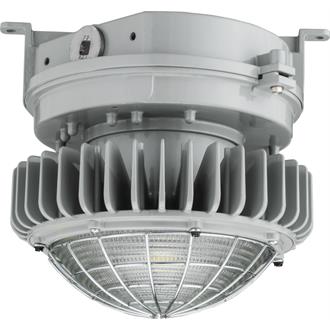

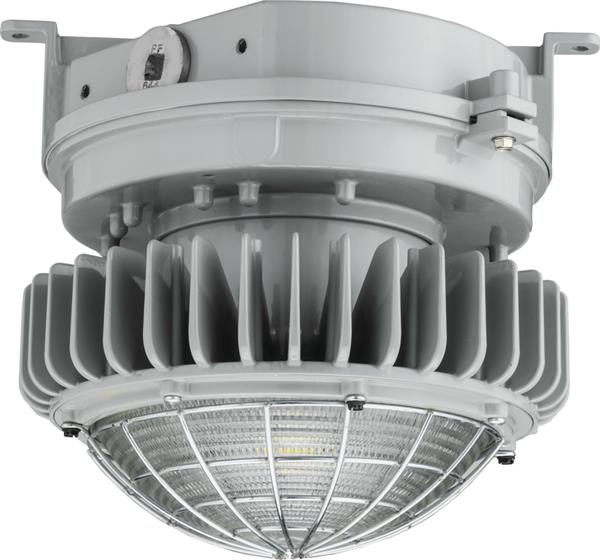

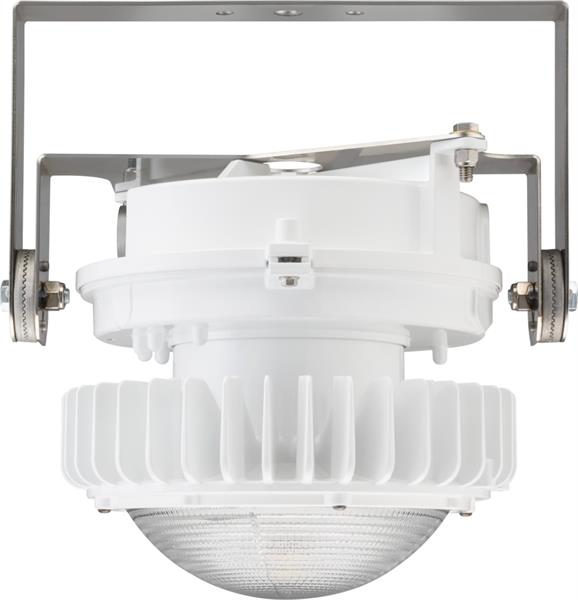

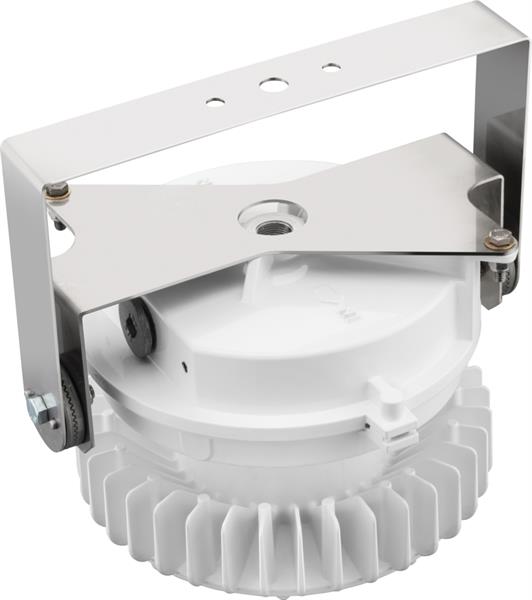

Petrolux® PXLH LED Round Hazardous Location Low Bay

By Holophane

    DLC Standard / PremiumCA Title 20
  • Overview
  • Specifications
At only 19 pounds, Petrolux® PXLH LED round low bay is an extremely versatile hazardous location single LED replacement up to 250W HID with unparalleled features. The Petrolux® PXLH LED round low bay meets or exceeds the code requirements to be used in harsh hazardous location applications including petroleum refineries, ethanol facilities, chemical plants, power plants, textile mills, water treatment, grain elevators and foundries.
Read More
Read Less
Light Source LED - Static
Lumens 3000 LM, 5000 LM, 8000 LM, 10,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing CA Title 20, DLC Premium
Environmental Listing Class I, Div 2, Class II, Div 1, Class II, Div 2, Class III, IP65, IP66, IP67, Marine Rated, NEMA 4X, NSF, Wet Location
Regulatory Listing C-UL-US
Product Type Low Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 347, 347-480, 480
Mounting Type Arm Mount, Pole Mount
Mounting Location Pole, Wall
Primary Material Aluminum
Architectural Style Traditional
Series PXLH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PXLH_ Petrolux LED Hazardous Low Bay 7/11/2022 View
    SPEC SHEET PXLH_AR_ Petrolux LED Hazardous Low Bay Adapter Ring 7/11/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Bluetooth Sensor Programming Instruction Videos.pdf Click the link below the QR code for access to the video. 5/23/2019 View
    Installation Instructions IM-455-C Petrolux® PXLH LED Round Hazardous Location Low Bay 7/1/2021 View
    Installation Instructions IM-461-D Petrolux® PXLH LED Round Hazardous Location Low Bay Adapter Ring 11/17/2021 View
    Installation Instructions IN-24-C HSCK Safety Chain Kit 4/14/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Holophane Hazardous Lighting Guide Holophane Hazardous Lighting Guide 2/21/2021 View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 10/13/2021 View
    Brochures Petrolux PXLH Hazardous Brochure Petrolux PXLH Hazardous Brochure 3/21/2019 View
