HZ Arm

Horizontal Non-Decorative Roadway Arm

By Holophane

  • Overview
  • Specifications

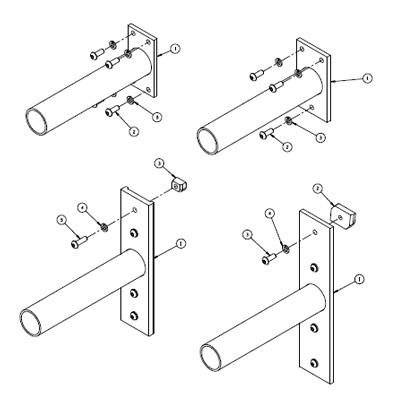

Contemporary designed horizontal arms to be mounted on square poles and SiteLink poles. The luminaire arms are made from aluminum pipe and utilize stainless steel hardware. The arms mount on the side of the pole through the use of a mounting kit. Arms are finished with polyester powder paint applied to ensure maximum durability.
Read More
Read Less
Product Type Arm
Mounting Type Surface
Primary Material Aluminum
Pole Shaft Shape Fluted, Round
Pole Shaft Style Fluted, Smooth, Tapered
No. of Fixtures 1, 2
Architectural Style Traditional, Utility
Series HZ
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ARM_HZ_.pdf Horizontal arm 1/25/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD d7278.pdf 2D DWG Horizontal Arm Dimensions 8/5/2020 View
