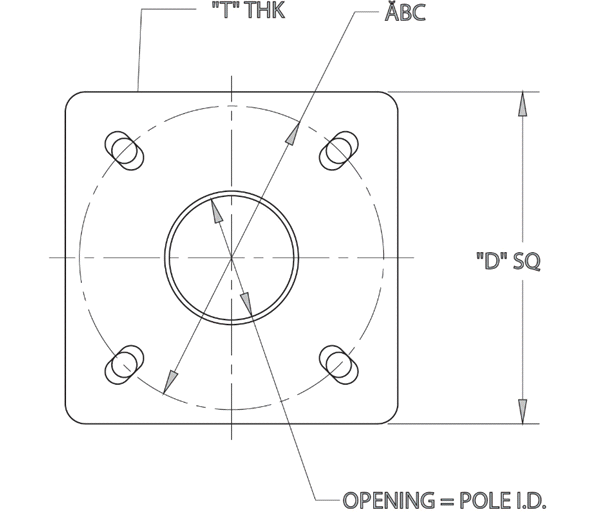

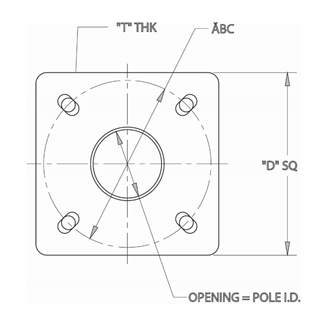

RTS Base.PNG

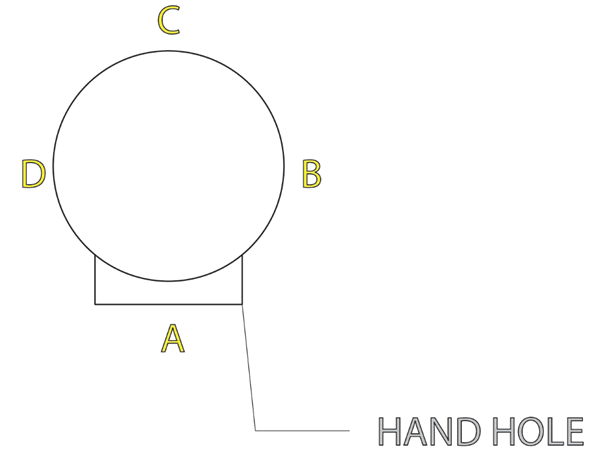

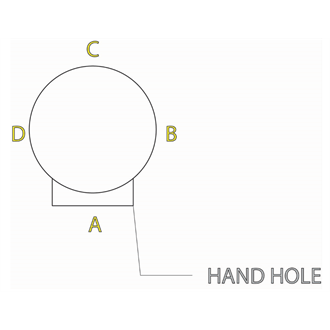

RTS Orient.PNG

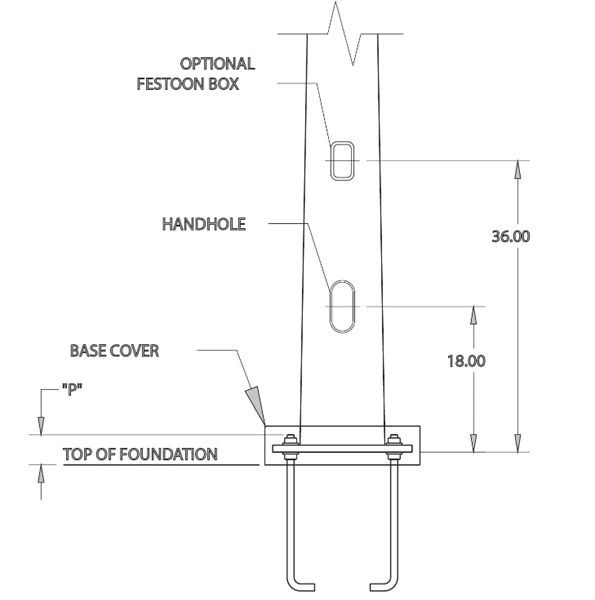

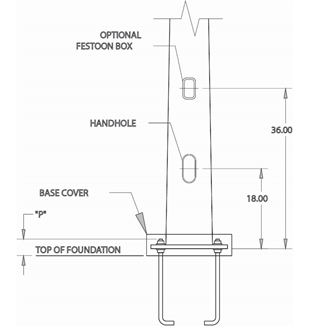

RTS Shaft.PNG

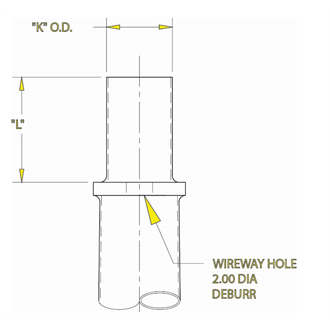

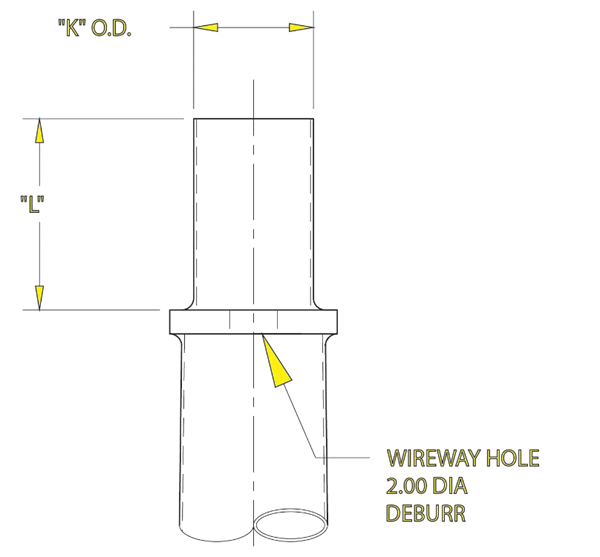

RTS Tenon.PNG

RTS HLP Pole

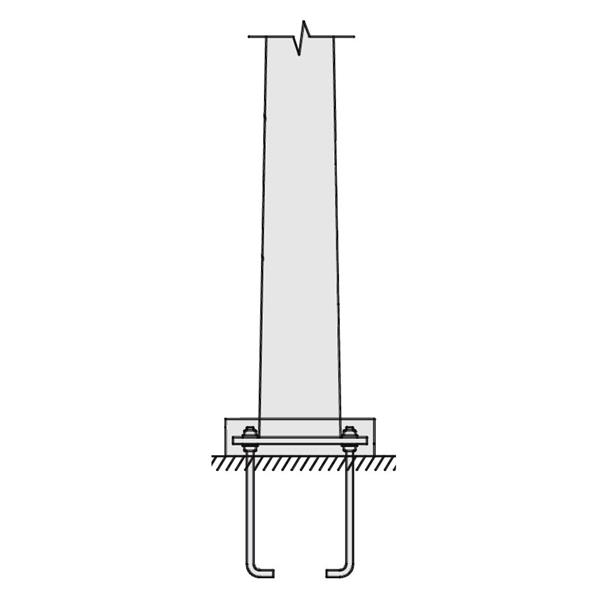

Round Tapered Steel Pole

By Holophane

    Buy America(n)
  • Overview
  • Specifications
Pole shaft is one piece, low carbon alloy steel per ASTM A595, Grade A with 55,00-PSI minimum yield strength. Pole base shall be per ASTM A36 and shall telescope pole shaft and be circumferentially welded top and bottom. Hand hole is 2” x 4” minimum, cover and fasteners are included. Base covers shall be two piece, interlocking construction. Finish shall match pole. Removable pole cap shall be provided with each drill pattern type pole. Non-structural fasteners shall be stainless steel. Galvanized poles will be finished per ASTM A123. Painted poles shall be semi-gloss powder paint.
Read More
Read Less
Compliance Listing BAA
Product Type Pole
Mounting Type Anchor Based
Primary Material Steel
Pole Height 39, 50
Pole Shaft Shape Round
Pole Shaft Style Straight
Anchor Bolt Circle Dia. 10, 10.5, 11, 11.5, 12.5, 13, 13.5, 9, 9.5
Architectural Style Utility
Series RTS

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET RTS_AORTS_.pdf Holophane Round Tapered Steel (RTS) Pole 4/20/2022 View
    SPEC SHEET RTS-NON-AASHTO_.pdf NON-AASHTO Round Tapered Steel (RTS) Pole 3/17/2021 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Templates TMP41.pdf Bolt Circle Template 3/17/2021 View
    Templates TMP-42.pdf Bolt Circle Template 3/17/2021 View
    Templates TMP-43.pdf Bolt Circle Template 3/17/2021 View
    Templates TMP-44.pdf Bolt Circle Template 3/17/2021 View
    Templates TMP45.pdf Bolt Circle Template 2/10/2021 View
    Templates TMP-46.pdf Bolt Circle Template 3/17/2021 View
