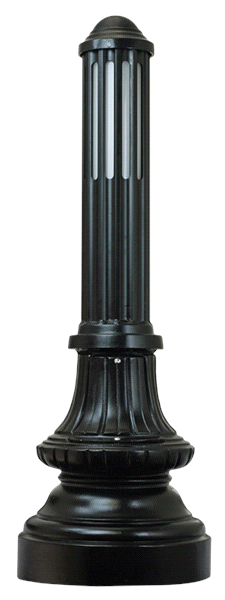

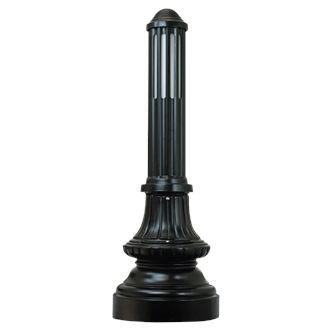

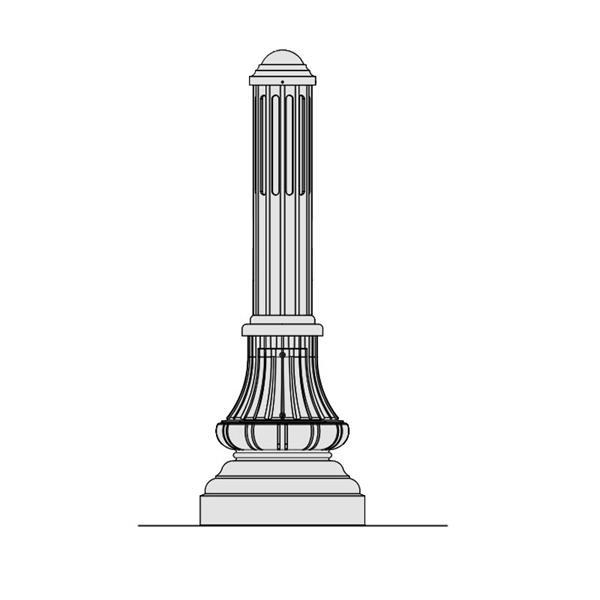

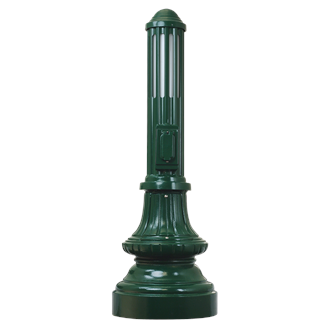

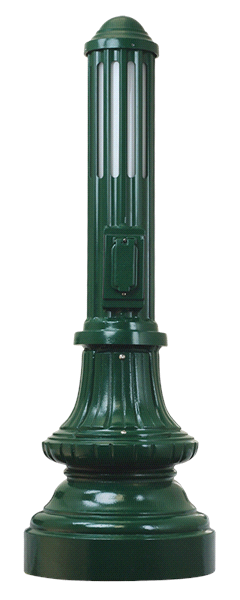

WDBOL Bollard

Wadsworth Cast Aluminum Bollards

By Holophane

  • Overview
  • Specifications

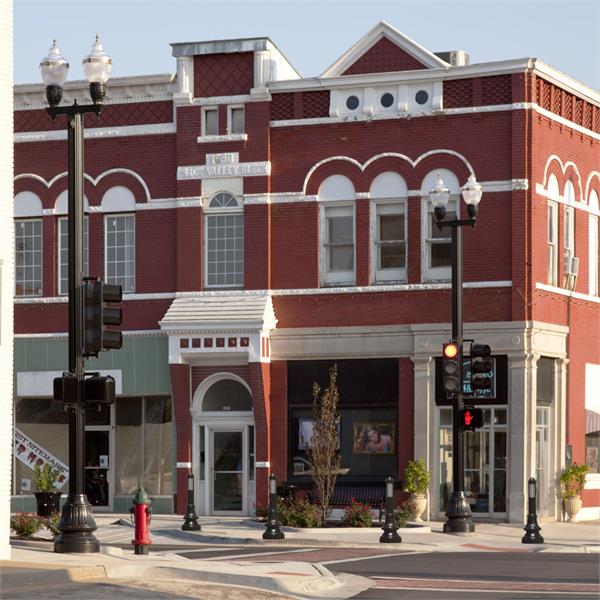

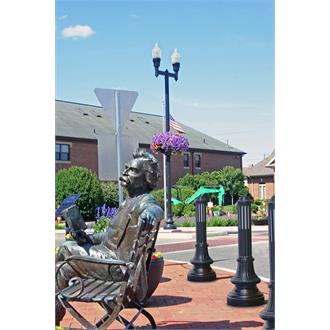

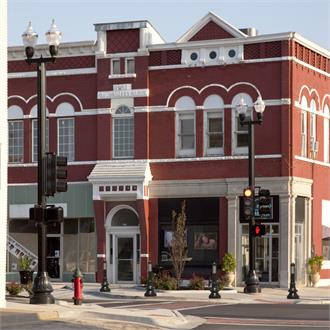

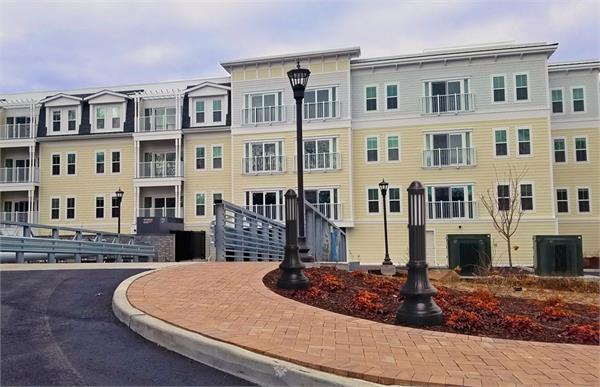

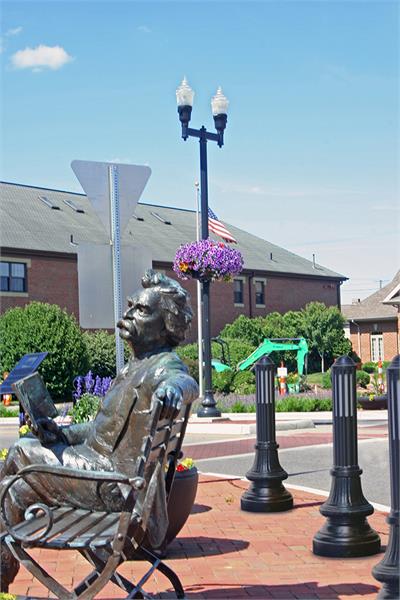

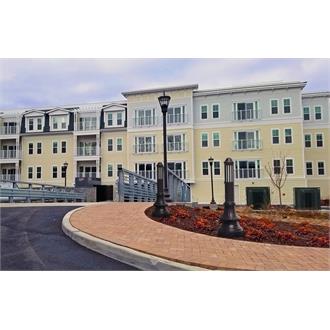

Bollard for city streetscapes, public areas and parks, higher education campuses, paths and walkways. Wadsworth decorative bollards provide an attractive pedestrian area solution to complement the full line of decorative posts by transitioning flawlessly from the street to pedestrian walkway. Our bollards offer superior finish through the application of a polyester powder coat finish. Refer to spec sheets for exact specifications and non-illuminating, HID or LED configuration options.
Read More
Read Less
Light Source LED - Static
Lumens 850 LM, 1000 LM, 1300 LM, 1400 LM, 1700 LM, 1800 LM, 1900 LM, 2100 LM, 2300 LM
CCT / LED Color 2700 K, 3000 K, 4000 K
CRI 70
Environmental Listing IP65
Regulatory Listing cUL, UL
Product Type Bollard
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 347, 347-480, 480, MVOLT
Mounting Type Anchor Based, Direct Burial
Primary Material Aluminum
Series WDBOLED, WDBOL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WDBOL CA.pdf Wadsworth bollard 3/31/2022 View
    SPEC SHEET WDBOLED_.pdf Wadsworth LED Bollard 5/11/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD WDBOL Wadsworth CA.dwg Wadsworth Cast Aluminum 2/17/2021
    Installation Instructions CHBOLED-NYBOLED-WDBOLED Installation Instruction Sheet.pdf CHBOLED-NYBOLED-WDBOLED Installation Instruction Sheet 6/10/2020 View
    Templates TMP-69.pdf Salem 9" Bolt Circle; 9" Base 2/17/2021 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures LED Bollards Family Brochure.pdf LED Bollards Family Brochure 8/4/2020 View
