TNLED2 Tunnel

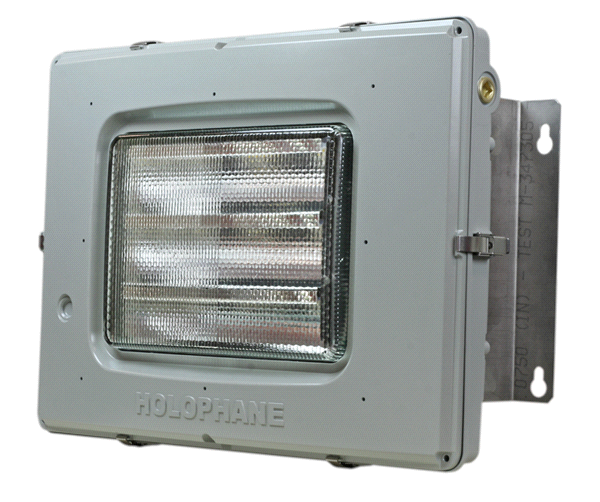

TunnelPass LED™ Large Tunnel Light

By Holophane

    DLC Standard / Premium  Buy America(n)
  • Overview
  • Specifications

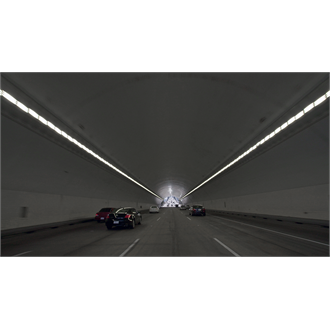

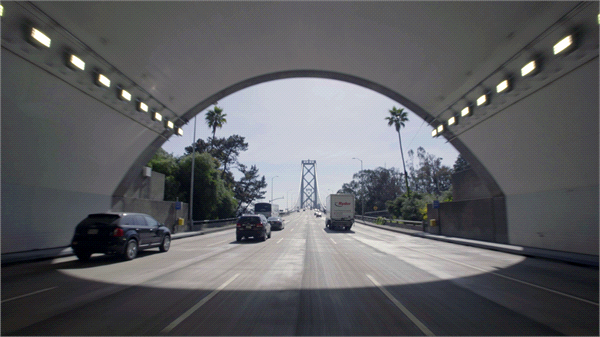

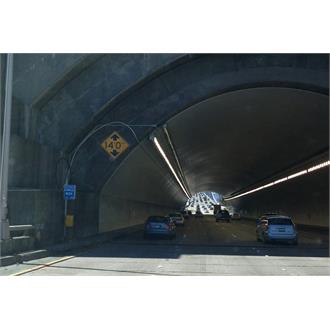

The TunnelPass LED™ is suitable for use in all tunnel and underpass areas for roadway and railroad applications. TNLED2 utilizes robust design with an IP66 rating, low copper 360 alloy castings, 3G vibration rating, and a paint finish designed to meet a 5000 hour salt fog rating. Features borosilicate prismatic glass lens for durability, permanence, and glare control and multiple lighting distributions to include ceiling counterbeam, long and narrow, and wall mount crossbeam. Universal design of TNLED2 can be applied to either wall or ceiling mount underpass or tunnel lighting applications with lumen packages to replace up to 1,000 watt HPS. The product ships complete with mounting brackets attached to aid in the installation of the product by one installer. Differentiating features include a removable power door to simplify and expedite installation, maintenance or future upgrades. Available with integral Nyx Hemera control module. DALI drivers also available. Consult with your Holophane sales rep to define details.
Read More
Read Less
Light Source LED - Static
Lumens 24,000 LM, 25,000 LM, 26,000 LM, 27,000 LM, 28,000 LM, 29,000 LM, 30,000 LM, 31,000 LM, 32,000 LM, 33,000 LM, 34,000 LM, 35,000 LM, 36,000 LM, 37,000 LM, 38,000 LM, 39,000 LM, 40,000 LM, 41,000 LM, 42,000 LM, 43,000 LM, 44,000 LM, 45,000 LM, 46,000 LM, 47,000 LM, 48,000 LM, 50,000 LM, 52,000 LM, 53,000 LM, 54,000 LM, 55,000 LM, 56,000 LM, 57,000 LM, 58,000 LM, 59,000 LM, 60,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing IP66, Wet Location
Regulatory Listing C-UL-US
Product Type Tunnel Light
Dimming Protocol 0-10V
Voltage Rating 120-277, 277-480, 347/480, HVOLT, MVOLT, XVOLT
Mounting Type Surface
Primary Material Aluminum
Architectural Style Traditional
Series TNLED2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Confidential Documents

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Holophane products are primarily sold through our factory direct sales team, as well as, a network of agents and distributors for the utility market.

    •  Find a Representative or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information

    •  Contact Us (Lighting)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


Videos

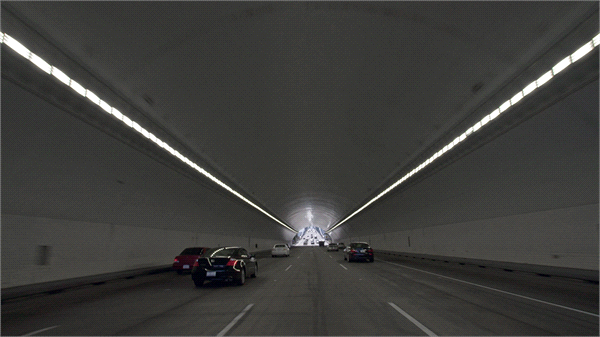

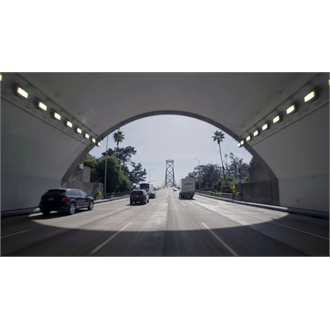

TunnelPass LED Luminaire for Tunnels & Underpasses video thumbnail

TunnelPass LED

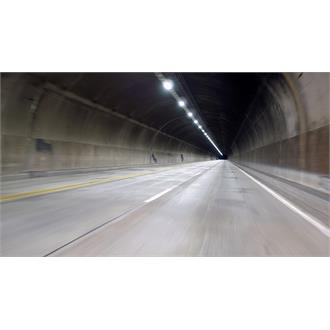

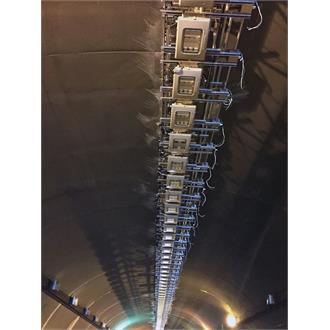

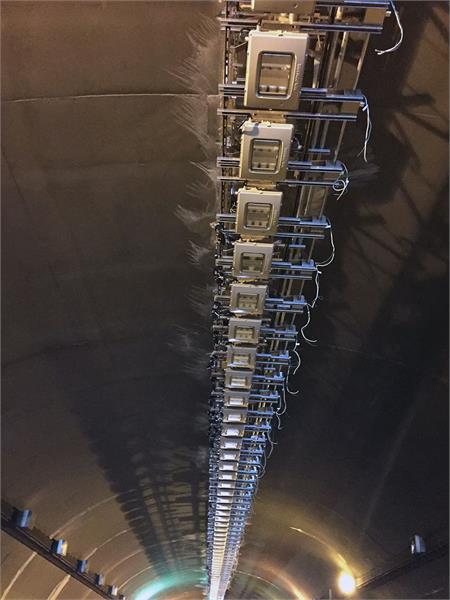

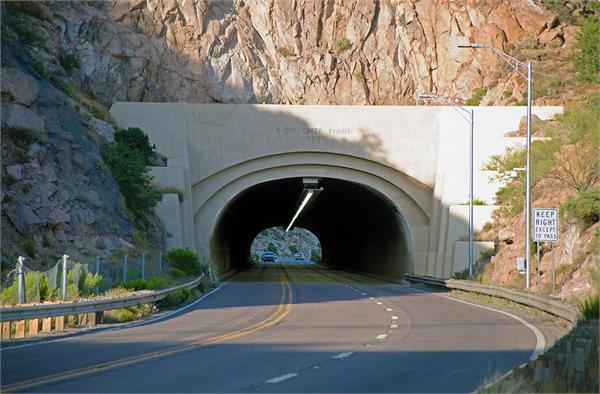

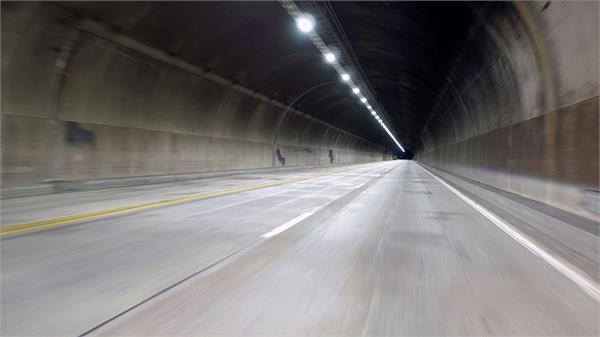

Arizona Tunnel case study video thumbnail

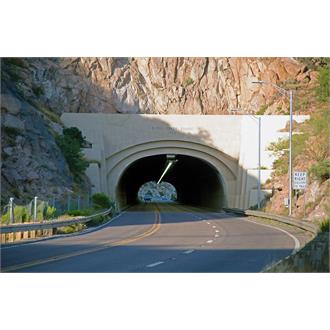

Arizona Tunnel light
