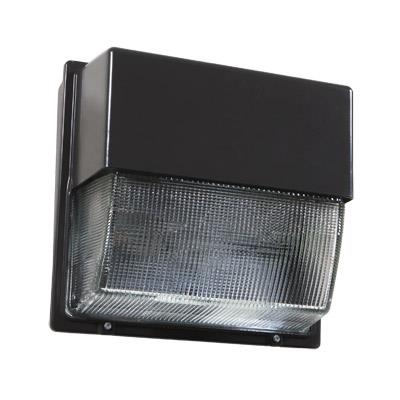

Wallpack® LED for Wall and Canopy Lighting

By Holophane

  • Overview
  • Specifications
LED wall-mounted lighting for building facades, office complexes, roadway underpass, industrial perimeters, storage areas Perimeter and security lighting requires excellent control and uniformity. Light trespass and glare must be minimized, and the Wallpack® LED luminaires excel at this requiring fewer units to achieve needed light levels. This control readily transfers to lighting from other areas such as uniflow garages and underpasses for the most economical solutions. The Wallpack LED features a choice of borosilicate glass or polycarbonate refractors for precise illumination. All housings are die cast aluminum for corrosion resistance. Cast in a traditional dayform, the Wallpack LED offers a classic appearance which produces an aesthetically consistent look throughout the site. Powered by advanced LEDs, Wallpack LED wall-mounted lighting delivers maintenance-free illumination for more than 15 years, eliminating frequent lamp changes while producing well-lit sites that are reliably illuminated. The Wallpack LED is available in 3 lumen packages to replace up to 400 watt HID luminaires with energy savings up to 77% over traditional HID alternatives.
Read More
Read Less
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 6000 LM, 8000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Wallpack
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Mounting Type Surface
Primary Material Aluminum
Architectural Style Traditional

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET W4GLED_W4PLED.pdf Wallpack IV Glass LED 5/11/2023 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD W4GLED and W4PLED.DWG Wallpack IV LED Plastic & Glass LED 11/5/2020
    Installation Instructions Wallpack LED Installation Manual Wallpack LED Installation Manual View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions IN-263.pdf W4GLED & W4PLED Wire and Vandal Guard Installation 11/29/2022 View
    Replacement Part Spec Sheet W4GLED Repair Kits.pdf W4GLED Replacement Kits 3/1/2023 View
    Replacement Part Spec Sheet W4PLED Repair kits.pdf W4PLED Replacement kits 1/18/2023 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Nomenclature Crossover W4GLED.xlsx Wallpack IV Glass LED Crossover 10/10/2022
    Sell Sheet Wallpack LED Sell Sheet.pdf Wallpack LED Sell Sheet.pdf View
