AWDE3

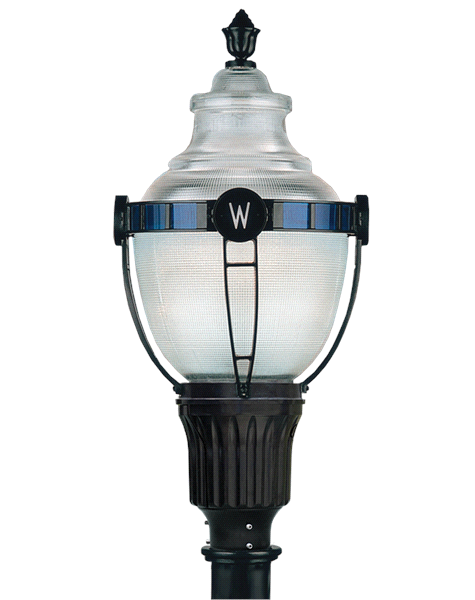

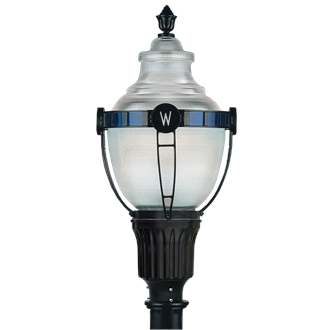

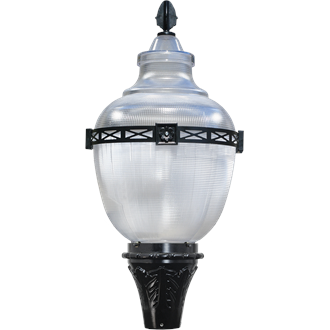

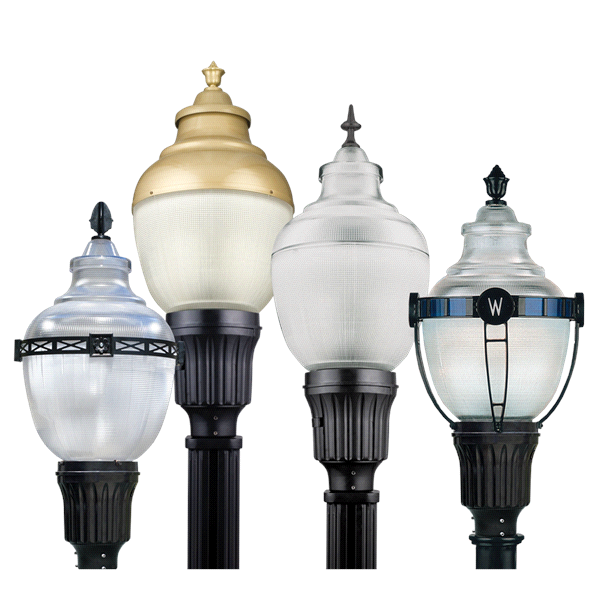

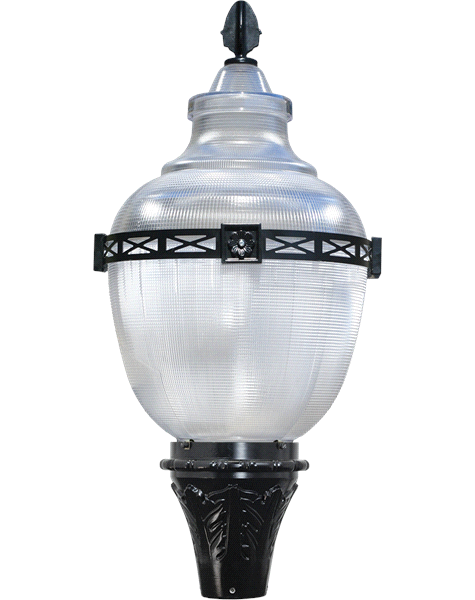

Washington Postlite® LED - Acrylic Acorns

By Holophane

    DLC StandardBuy America(n) Option Available
  • Overview
  • Specifications

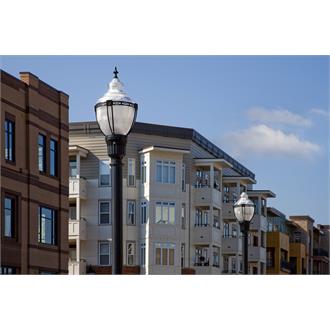

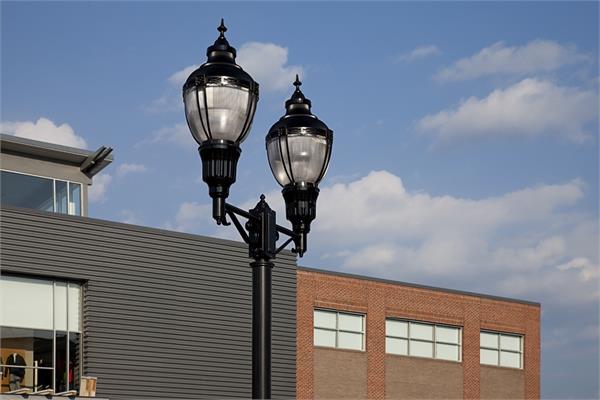

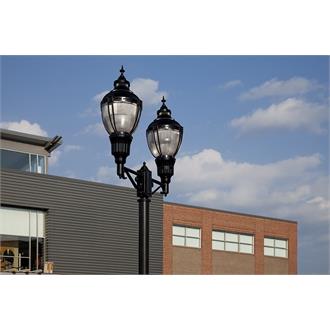

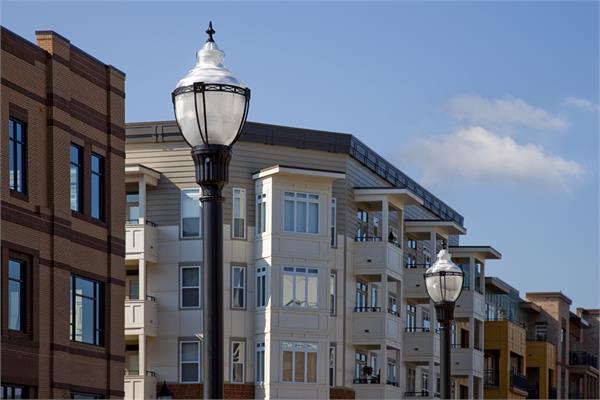

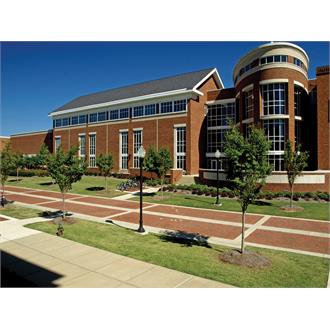

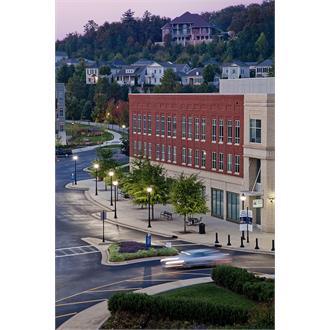

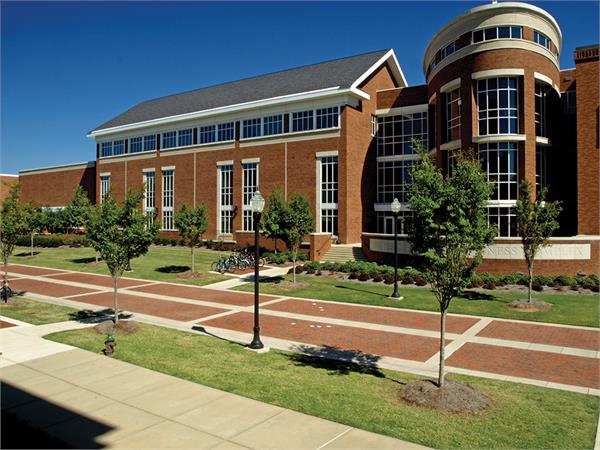

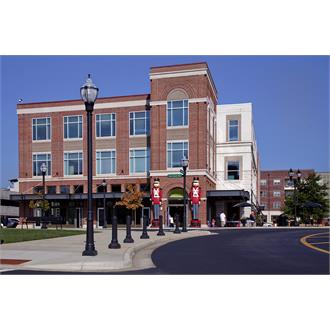

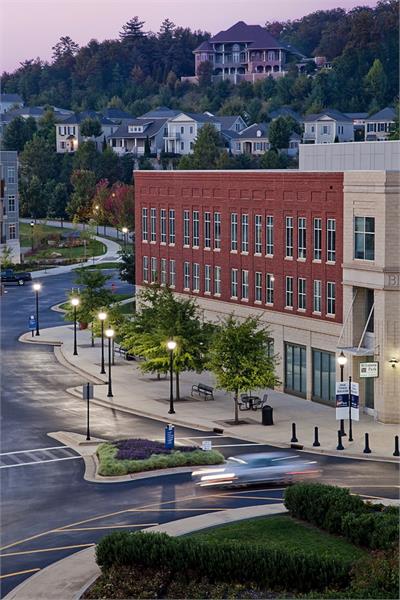

Replacing up to 400 watt HID products, typical applications for AWDE3 include city streets, downtown renovation, historical districts, campuses, residential areas, parking lots, parks and walkways. Acrylic Washington Postlite® LED luminaires utilize Holophane prismatic acrylic optics to produce high performance with a wholly luminous appearance. The AWDE3 series also provides enhanced historical aesthetics, application flexibility and great overall value for retrofit opportunities. The larger classic acorn style form factor of the Washington family scales well for taller mounting heights and wider pole spacing.
Read More
Read Less
Light Source LED - Static
Lumens 2500 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM, 21,000 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing Wet Location
Regulatory Listing cCSAus, cCSAus Component
Product Type Post Top
Dimming Protocol 0-10V
Voltage Rating 120-277, 347-480
Mounting Type Post Top
Mounting Location Pole
Primary Material Aluminum
Architectural Style Historical
Series AWDE3, AWDERETRO3, AWDEORIGRETRO3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AWDE3s_.pdf AWDE3 Acrylic Washington Postlite Standard LED3 8/11/2023 View
    SPEC SHEET AWDE3u_.pdf AWDE3 Acrylic Washington Postlite Utility LED3 5/1/2023 View

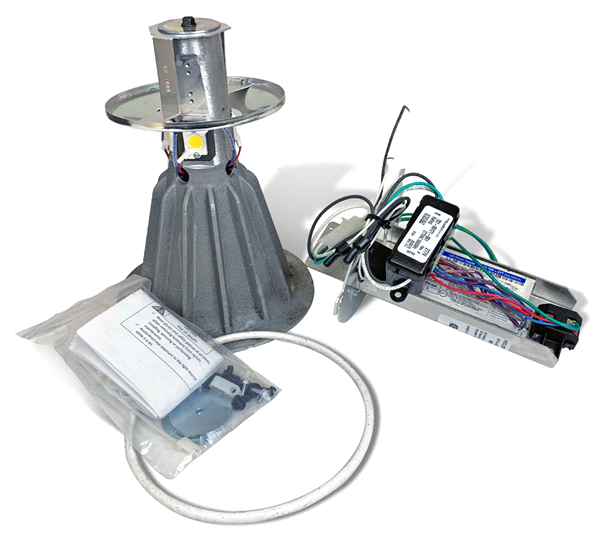

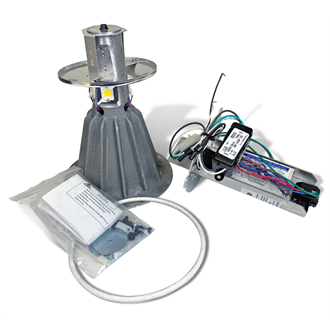

    SPEC SHEET AWDEORIGRETRO3.pdf AWDEORIGRETRO3 Acrylic Washington Utility (pop-off door) LED3 Retrofit Kit 2/21/2023 View
    SPEC SHEET AWDERETRO3s.pdf Acrylic Washington Postlite LED 3 Retrofit - Standard 2/21/2023 View
    SPEC SHEET AWDERETRO3u.pdf AWDERETRO3 Acrylic Washington Postlite LED 3 Retrofit - Utility 5/1/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_HLP_AWDE3_27K_70CRI.pdf SpectralDataSheet_HLP_AWDE3_27K_70CRI 3/8/2023 View
    Spectral Data Sheet SpectralDataSheet_HLP_AWDE3_30K_70CRI.pdf SpectralDataSheet_HLP_AWDE3_30K_70CRI 3/8/2023 View
    Spectral Data Sheet SpectralDataSheet_HLP_AWDE3_40K_70CRI.pdf SpectralDataSheet_HLP_AWDE3_40K_70CRI 3/8/2023 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD AW ARC ST.dwg 2D DWG AW ARC Post Top Dimensions 2/25/2021
    CAD AW CLF ST RB.dwg 2D DWG AW CLF ST RB Post Top Dimensions 2/25/2021
    CAD AW CLF ST.dwg 2D DWG AW CLF ST Post Top Dimensions 2/25/2021
    CAD AW CON ST.dwg 2D DWG AW CON ST Post Top Dimensions 2/25/2021
    CAD AW LS ST BAND FC.dwg 2D DWG AW LS ST BAND FC Post Top Dimensions 2/25/2021
    CAD AW LS ST FC.dwg 2D DWG AW LS ST FC Post Top Dimensions 2/25/2021
    CAD AW LS ST RB FC.dwg 2D DWG AW LS ST RB FC Post Top Dimensions 2/25/2021
    CAD AW MS ST BAND.dwg 2D DWG AW MS ST BAND Post Top Dimensions 2/25/2021
    CAD AW MS ST RB.dwg 2D DWG AW MS ST RB Post Top Dimensions 2/25/2021
    CAD AW MS ST.dwg 2D DWG AW MS ST Post Top Dimensions 2/25/2021
    CAD AW SPL ST.dwg 2D DWG AW SPL ST Post Top Dimensions 2/25/2021
    CAD AWDEORIGRETRO3.dwg Utility Acrylic Washington LED Original Housing 2/25/2021
    Installation Instructions AWDEORIGRETRO3.pdf Acrylic Washington Utility LED3 Retrofit Kit Installation 8/25/2020 View
    Installation Instructions Granville LED House Side Shield Installation Granville II House-side Shield Installation (GVD, GPD & AWDE) View
    Installation Instructions IM-464 _ GVD3-GPD3-AWDE3_Installation.pdf GVD3-GPD3–AWDE3 Utility Installation 2/27/2020 View
    Installation Instructions IM-465 _ GVD3-AWDE3 Standard Installation.pdf GVD3-AWDE3 Standard Installation 1/29/2020 View
    Installation Instructions IM-467 _ GVDRETRO3-GPDRETRO3-AWDERETRO3-PSUERETRO3 Installation.pdf GVDRETRO3-GPDRETRO3-AWDERETRO3 Retrofit Installation 1/29/2020 View
    Installation Instructions IM-469 House Side Shield Installation for GVD3 GPD3 AWDE3 PSUE3.pdf House Side Shield Installation 3/19/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Nomenclature Crossover HLP GVD3-GPD3-AWDE3 Upgrade Crossover Tool R1.xls GVD3-GPD3-AWDE3 Upgrade Crossover Tool 3/15/2022
    Sell Sheet Washington LED Acrylic Sell Sheet.pdf Washington LED Acrylic Sell Sheet 6/24/2020 View

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Holophane products are primarily sold through our factory direct sales team, as well as, a network of agents and distributors for the utility market.

    •  Find a Representative or Agent

    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)

    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


View Stocked Products

  • Stock-Sku-FeedbackIs the new stocked product detail helpful? Please tell us what you think, CLICK HERE.

    SKU data not available, please contact your local agent.
