HMLED4 High-mast

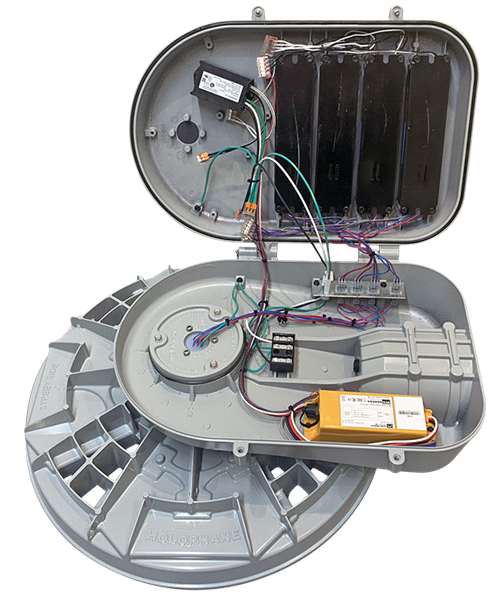

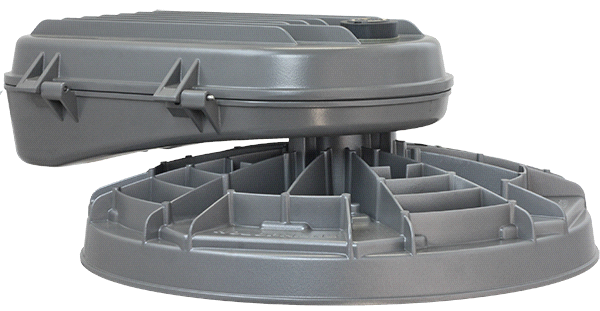

HMAO™ LED IV - Highmast Lighting

By Holophane

    DLC StandardBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 31,000 LM, 42,000 LM, 63,000 LM, 85,000 LM, 105,000 LM, 112,000 LM, 120,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing IP65, IP66, Wet Location
Regulatory Listing C-UL-US
Product Type High Mast
Voltage Rating 120-277, 277-480, 347-480
Mounting Type Arm Mount
Primary Material Aluminum
Architectural Style Traditional
Series HMLED4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUM_HMLED4_.pdf HMLED4 HighMast LED IV 5/2/2023 View
