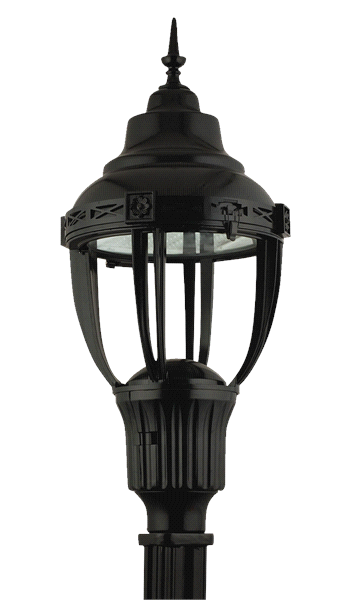

WFCL2 Lantern

Washington LED Post-Top Full Cutoff Lantern

By Holophane

    DLC Standard / PremiumBuy America(n)
  • Overview
  • Specifications
Typical applications for Washington® FCO LED include up to 250 watt replacement in city streets, downtown renovation, historical districts, campuses, residential areas, parking lots, parks and walkways. LED Post-Top Full Cutoff lighting from Holophane allows designers to create the vintage appearance they desire while complying with local lighting ordinances for reduced sky glow. The Washington FCO LED Series represents part of the broadest portfolio of IESNA full cutoff LED post-top products in the industry. Multiple lumen packages are available in three color temperatures as well as symmetric and asymmetric distributions. The utility-grade full cutoff series from Holophane provides the efficiency and sustainability you need with high performance and reliability. UL listed.
Read More
Read Less
Light Source LED - Static
Lumens 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing Wet Location
Regulatory Listing C-UL-US
Product Type Post Top
Dimming Protocol 0-10V
Voltage Rating 120-277, 347-480
Mounting Type Post Top
Primary Material Aluminum
Architectural Style Historical
Series WFCL2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WFCL2.pdf Utility Washington FCO LED 4/19/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD WFCL2.dwg Utility Washington Series Luminaire Full Cutoff LED2 3/3/2021
    Installation Instructions House-Side Shield Installation Sheet House-Side Shield Installation Sheet 8/20/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Post Top FCO LED Brochure.pdf Post Top FCO LED Brochure 8/20/2020 View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Holophane products are primarily sold through our factory direct sales team, as well as, a network of agents and distributors for the utility market.

    •  Find a Representative or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information (Lighting Fixtures)

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim
