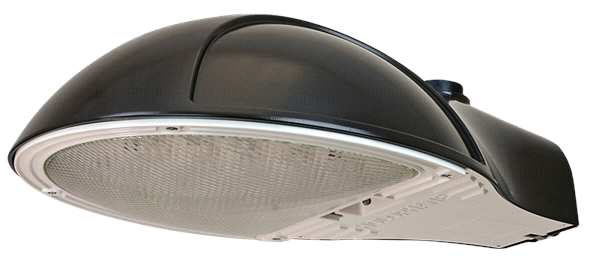

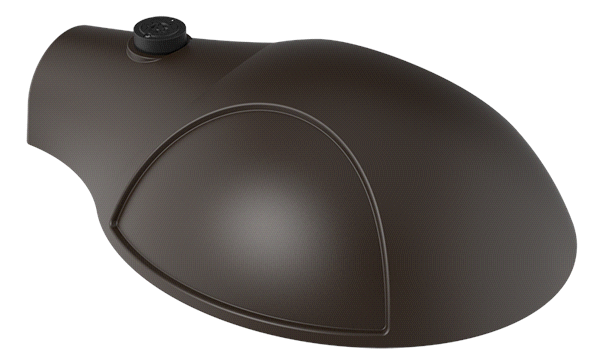

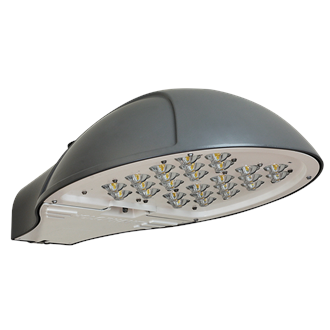

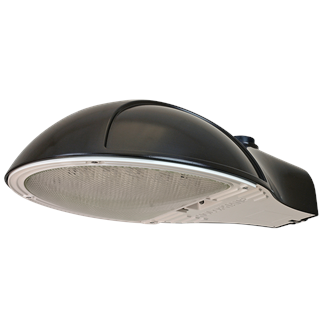

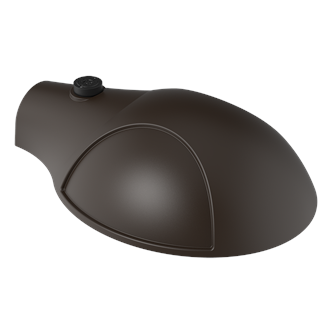

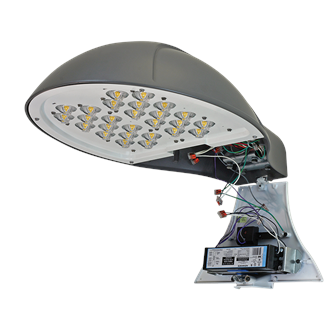

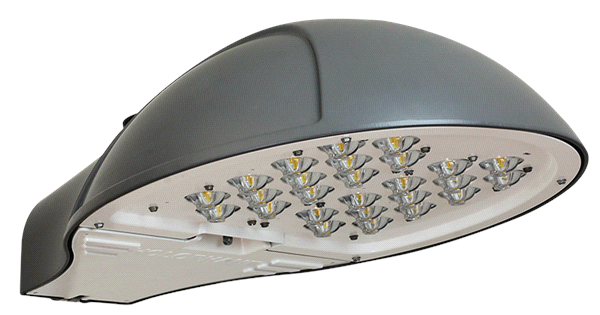

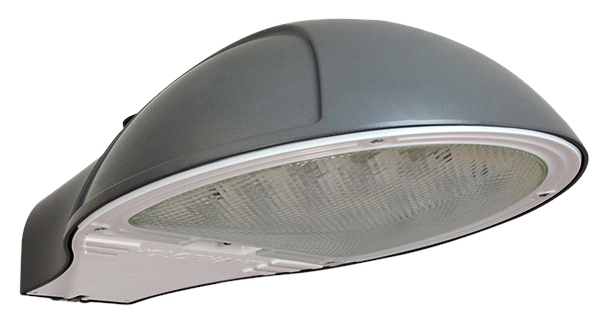

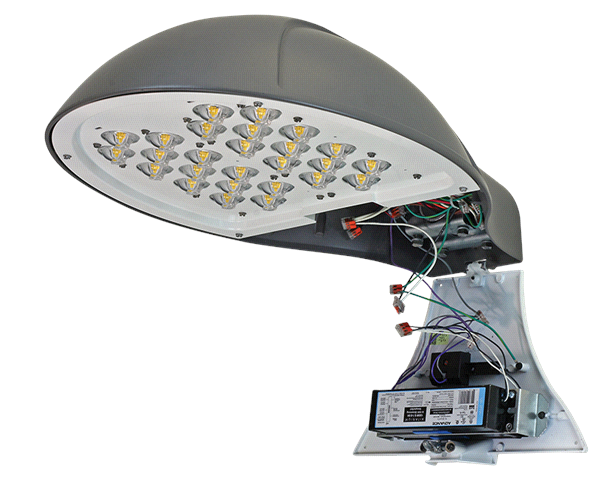

LEDG2 Cobra Head

LEDgend™ LED Roadway & Area Cobra Head

By Holophane

    DLC Standard / Premium  Buy America(n)
  • Overview
  • Specifications

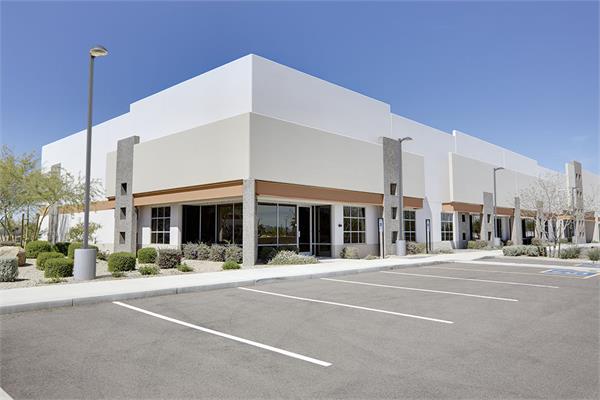

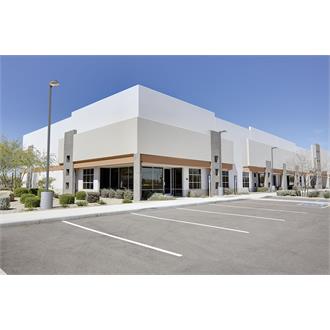

For LED roadway, area, and site lighting, the LEDgend® from Holophane provides a very attractive and flexible alternative to traditional 100-400 watt HID cobra head and shoebox fixtures. With energy savings up to 60%, and an expected service life of over 20 years, the LEDgend combines reliability, economic performance and visually comfortable lighting into an aesthetically appealing form factor to enhance your streetscape or sitescape. Typical applications that benefit from the LEDgend include municipal streets, freeways, expressways, boulevards and commercial parking applications.
Read More
Read Less
Light Source LED - Static
Lumens 8500 LM, 8600 LM, 8700 LM, 8800 LM, 8900 LM, 9000 LM, 9100 LM, 9200 LM, 9300 LM, 9500 LM, 9600 LM, 9700 LM, 9800 LM, 9900 LM, 10,000 LM, 10,100 LM, 10,200 LM, 10,400 LM, 10,500 LM, 10,600 LM, 10,700 LM, 10,800 LM, 10,900 LM, 11,000 LM, 11,100 LM, 11,200 LM, 11,300 LM, 11,400 LM, 11,600 LM, 11,700 LM, 11,800 LM, 11,900 LM, 12,000 LM, 12,100 LM, 12,300 LM, 12,400 LM, 12,500 LM, 12,700 LM, 13,000 LM, 13,400 LM, 13,600 LM, 14,200 LM, 14,400 LM, 14,500 LM, 14,600 LM, 14,700 LM, 14,800 LM, 15,000 LM, 15,100 LM, 15,200 LM, 15,300 LM, 15,400 LM, 15,600 LM, 15,900 LM, 16,000 LM, 16,100 LM, 16,300 LM, 16,400 LM, 16,600 LM, 16,800 LM, 16,900 LM, 17,000 LM, 17,100 LM, 17,400 LM, 17,800 LM, 18,000 LM, 18,200 LM, 18,300 LM, 18,500 LM, 18,600 LM, 18,800 LM, 19,000 LM, 19,200 LM, 19,300 LM, 19,400 LM, 19,500 LM, 19,700 LM, 20,200 LM, 20,400 LM, 20,700 LM, 20,800 LM, 21,000 LM, 21,300 LM, 21,400 LM, 21,500 LM, 21,600 LM, 21,700 LM, 21,900 LM, 22,000 LM, 22,100 LM, 22,300 LM, 22,500 LM, 22,600 LM, 22,800 LM, 23,000 LM, 23,100 LM, 23,300 LM, 23,400 LM, 23,500 LM, 23,700 LM, 24,100 LM, 24,200 LM, 24,300 LM, 24,400 LM, 24,500 LM, 24,600 LM, 24,800 LM, 24,900 LM, 25,000 LM, 25,200 LM, 25,300 LM, 25,500 LM, 25,600 LM, 25,700 LM, 25,800 LM, 25,900 LM, 26,000 LM, 26,100 LM, 26,300 LM, 26,500 LM, 26,900 LM, 27,000 LM, 27,100 LM, 27,200 LM, 27,600 LM, 27,700 LM, 27,800 LM, 27,900 LM, 28,100 LM, 28,200 LM, 28,400 LM, 28,500 LM, 28,600 LM, 28,700 LM, 28,900 LM, 29,000 LM, 29,300 LM, 29,400 LM, 29,500 LM, 29,700 LM, 29,900 LM, 30,200 LM, 30,900 LM, 31,000 LM, 31,200 LM, 31,400 LM, 31,600 LM, 31,800 LM, 31,900 LM, 32,200 LM, 32,500 LM, 32,800 LM, 32,900 LM, 33,200 LM, 33,800 LM, 34,600 LM, 35,600 LM, 36,000 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Environmental Listing IP66, Wet Location
Regulatory Listing cCSAus
Product Type Cobra Head
Dimming Protocol 0-10V, DALI
Voltage Rating 120-277, 277-480, 347, 480
Mounting Type Arm Mount
Primary Material Aluminum
Architectural Style Contemporary, Traditional
Series LEDG2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Holophane-LEDgend-LEDG2-FAO.pdf LEDgend FAO Module Spec Sheet 4/13/2021 View
    SPEC SHEET LEDG2.pdf LEDgend Gen2 Spec Sheet 9/2/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD LEDG2.dwg LEDgend LED 11/5/2020
    Installation Instructions 912-00211-001.pdf LEDG2 House-side shield installation 11/17/2020 View
    Installation Instructions 912-00212-001.pdf LEDG2 Light Trespass Shield Installation 11/17/2020 View
    Installation Instructions IM-304-B.pdf LEDgend Gen 2 Installation 11/17/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures LEDgend Gen2 Brochure.pdf LEDgend Gen2 Brochure 12/1/2020 View
