Cylindrical Wall Mount Arm (CWMA)

Mounting Accessory for use with SAF series Floods
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Product Type Mounting Kit
Color Black, Bronze, Green, Silver, White
Series CWMA12E, CWMA12T, CWMA18E, CWMA18T, CWMA24E, CWMA24T, CWMA30E, CWMA30T, CWMA36E, CWMA36T, CWMA42E, CWMA42T, CWMA48E, CWMA48T

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet CWMAE_CWMAT.pdf CWMA_E Cylindrical Wall Mount Arm End available in 12"-48" lengths used for SAF7 Flood Series 3/13/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View

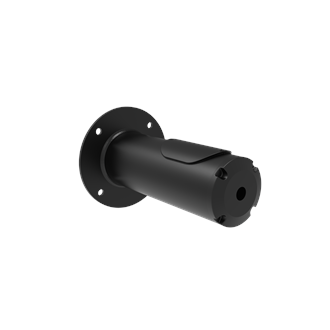

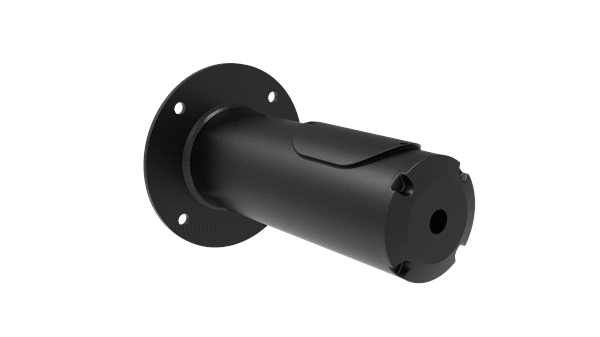

    Installation Instructions CWMA EM -- Installation Manual-v2.pdf CWMA_E Cylindrical Wall Mount Arm End available in 12"-48" lengths used for SAF7 Flood Series 1/12/2021 View

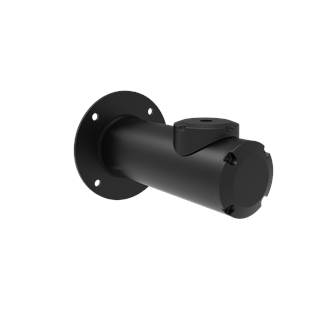

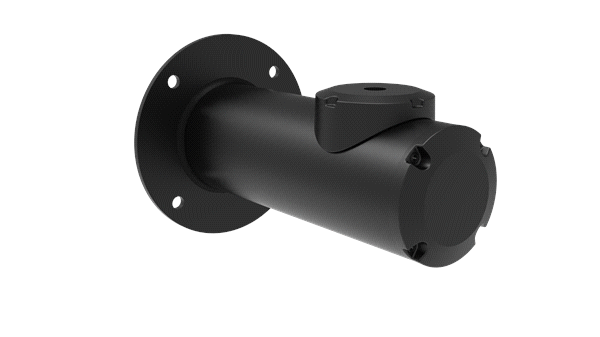

    Installation Instructions CWMA TM -- Installation Manual-v2.pdf CWMA_T Cylindrical Wall Mount Arm Top Mount available in 12"-48" used for SAF7 & SAF14 Flood Series 1/12/2021 View
