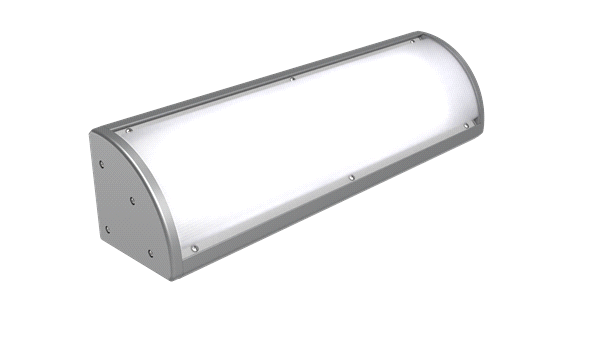

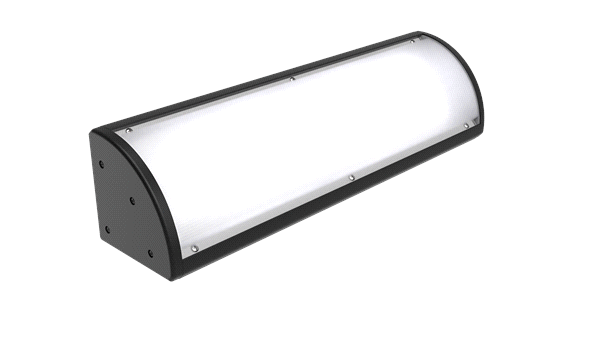

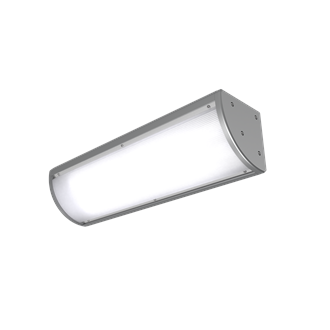

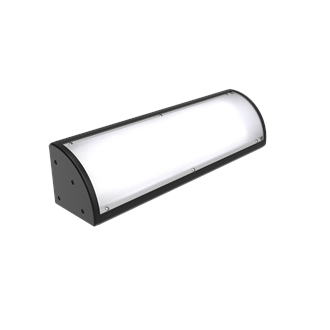

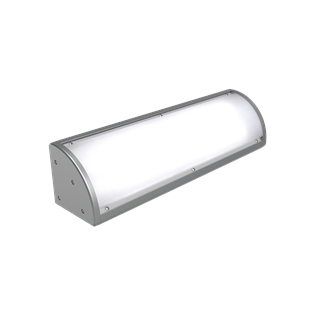

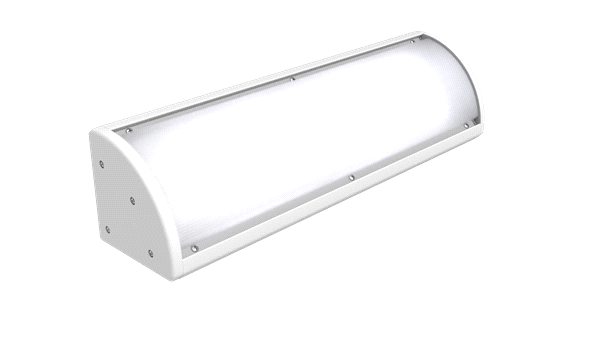

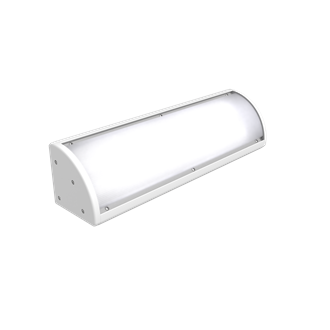

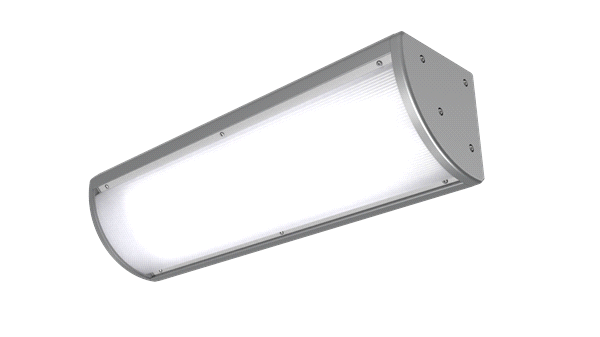

VCM8 Corner Mount

8" wide corner mount luminaire

By Luminaire LED

    Buy America(n)
  • Overview
  • Specifications
The IP65-rated, 3G vibration compliant, corner mount VCM8 complements the existing Vision (VPF) family. VCM8 features a highly durable, marine-grade finish that withstands a 4,000-hour salt spray test and an optional behind-the-lens occupancy sensor. Complete with a lifetime warranty against vandalism and an IK10 rating. Available in 2 ft., 3 ft., and 4 ft. lengths, and black, bronze, gray, silver and white standard finishes with RAL custom color options. Suitable for mounting on ceilings and walls, plus a pendant form is available. Delivers up to 11,000 lumens. VCM8 features an all-aluminum, ligature-resistant construction, polycarbonate lens, and red or amber night light options.
Read More
Read Less
Light Source LED - Static
Lumens 500 LM, 600 LM, 700 LM, 800 LM, 900 LM, 1000 LM, 1100 LM, 1200 LM, 1300 LM, 1400 LM, 1500 LM, 1600 LM, 1700 LM, 1800 LM, 1900 LM, 2000 LM, 2100 LM, 2200 LM, 2300 LM, 2400 LM, 2500 LM, 2600 LM, 2700 LM, 2800 LM, 2900 LM, 3000 LM, 3100 LM, 3200 LM, 3300 LM, 3400 LM, 3500 LM, 3600 LM, 3700 LM, 3800 LM, 3900 LM, 4000 LM, 4100 LM, 4200 LM, 4300 LM, 4400 LM, 4500 LM, 4600 LM, 4700 LM, 4800 LM, 4900 LM, 5000 LM, 5100 LM, 5200 LM, 5300 LM, 5400 LM, 5500 LM, 5600 LM, 5700 LM, 5800 LM, 5900 LM, 6000 LM, 6100 LM, 6200 LM, 6300 LM, 6400 LM, 6500 LM, 6600 LM, 6700 LM, 6800 LM, 6900 LM, 7000 LM, 7100 LM, 7200 LM, 7300 LM, 7400 LM, 7500 LM, 7600 LM, 7700 LM, 7800 LM, 7900 LM, 8000 LM, 8100 LM, 8200 LM, 8300 LM, 8400 LM, 8500 LM, 8600 LM, 8700 LM, 8800 LM, 8900 LM, 9000 LM, 9100 LM, 9200 LM, 9300 LM, 9400 LM, 9500 LM, 9600 LM, 9700 LM, 9800 LM, 9900 LM, 10,000 LM, 10,100 LM, 10,200 LM, 10,300 LM, 10,400 LM, 10,500 LM, 10,600 LM, 10,700 LM, 10,800 LM, 10,900 LM, 11,000 LM, 11,100 LM, 11,200 LM, 11,300 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Compliance Listing BAA
Environmental Listing IP65
Regulatory Listing ANSI C136.31-2010 (Vibration), cUL, UL
Product Type Surface Light
Series VCM8

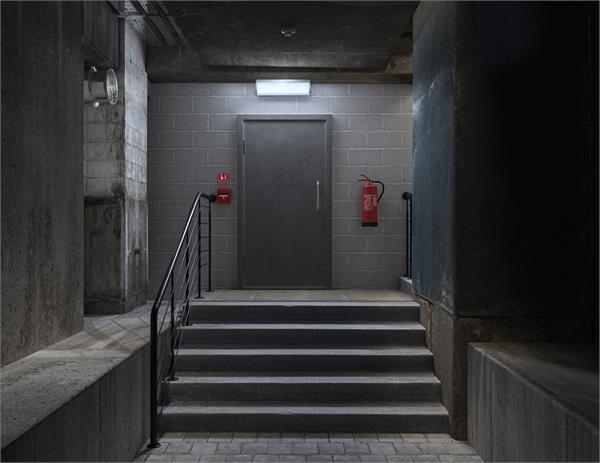

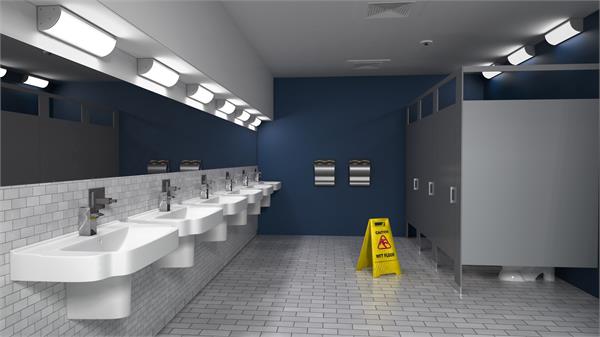

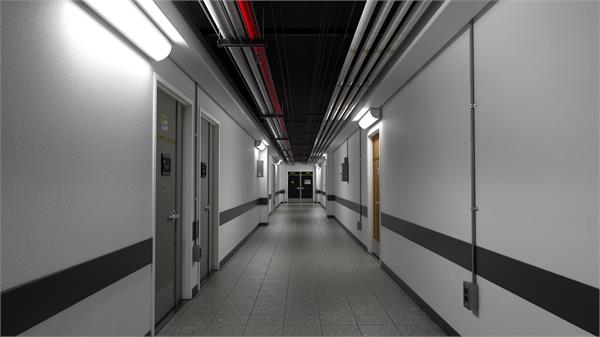

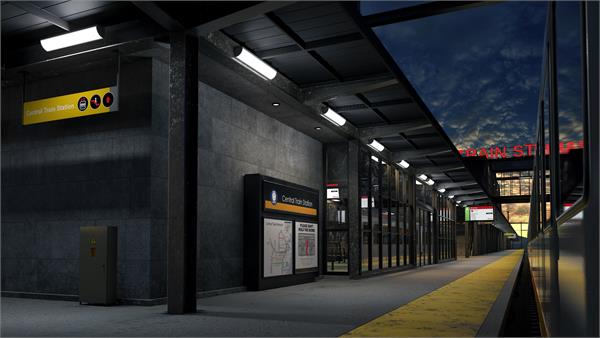

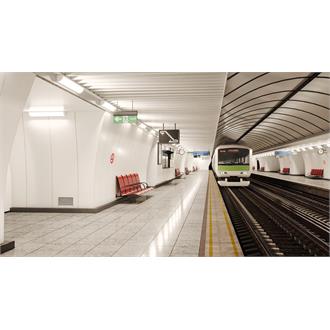

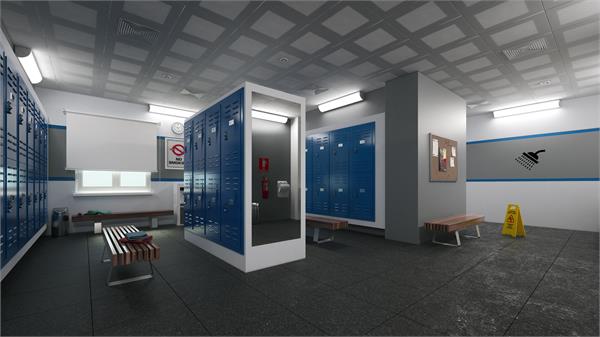

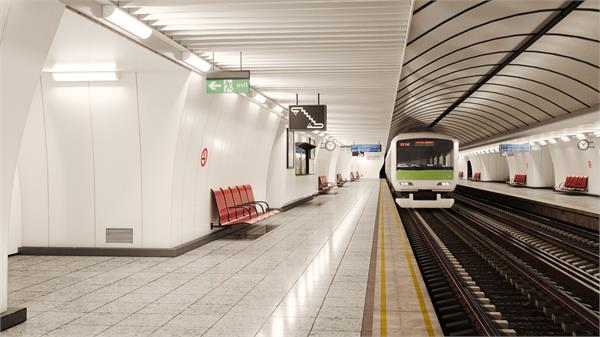

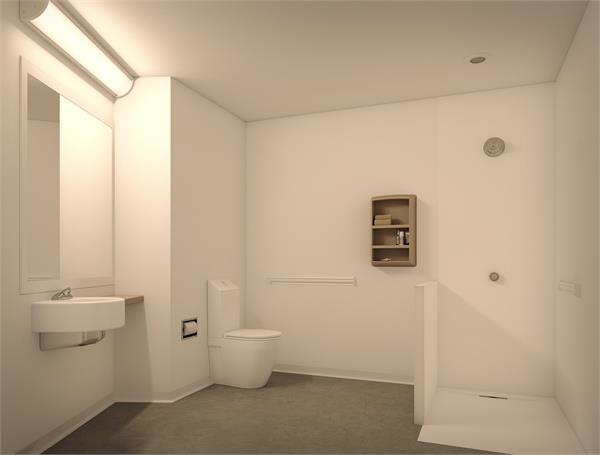

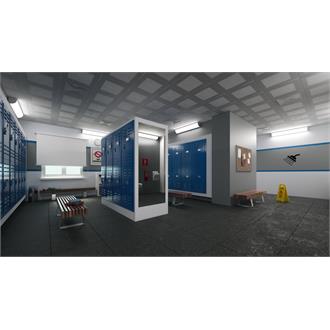

Application Type Behavioral Health, Education, Healthcare, Natatorium, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 115, 119, 15.5, 19.2, 19.5, 21.4, 24.8, 25.1, 25.4, 28.3, 28.5, 28.8, 32, 32.3, 42.2, 45.9, 46.2, 55, 58, 59, 61, 62, 81, 85
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less
