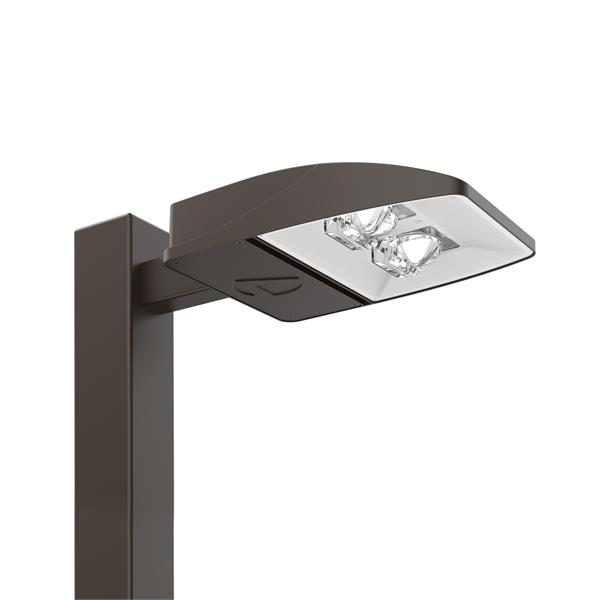

ESX1 LED Area Luminaire

Two ALO Packages – 8,000 and 14,000 Lumens or 21,000 and 25,000 Lumens Discontinued
    DLC Premium
  • Specifications
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 8000 LM, 14,000 LM, 21,000 LM, 25,000 LM
CCT / LED Color 4000 K, 5000 K
CRI 80
Product Type Area Light
Environmental Listing Wet Location
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Fixture Wattage 100, 200
Voltage Rating 120-277, 347-480
Color Bronze
Mounting Type Arm Mount, Surface
Series ESX1

Read More Read Less

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet CONTRACTOR SELECT ESX1 LED.pdf CS ESX1 LED Specification Sheet 7/15/2024 View
    Spec Sheet Lithonia ESX1 Area LED.pdf ESX1 LED Specification Sheet 7/15/2024 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INST SHT ESX WBA 2020 912-00197-001 REV A_121520.pdf ESX1 LED WBA Installation instructions 1/5/2021 View
    Installation Instructions Instruction Sheet_ESX1_111820.pdf ESX1 LED Installation instructions 1/5/2021 View
    Templates Template20.pdf Pole drill template #20 1/19/2021 View
