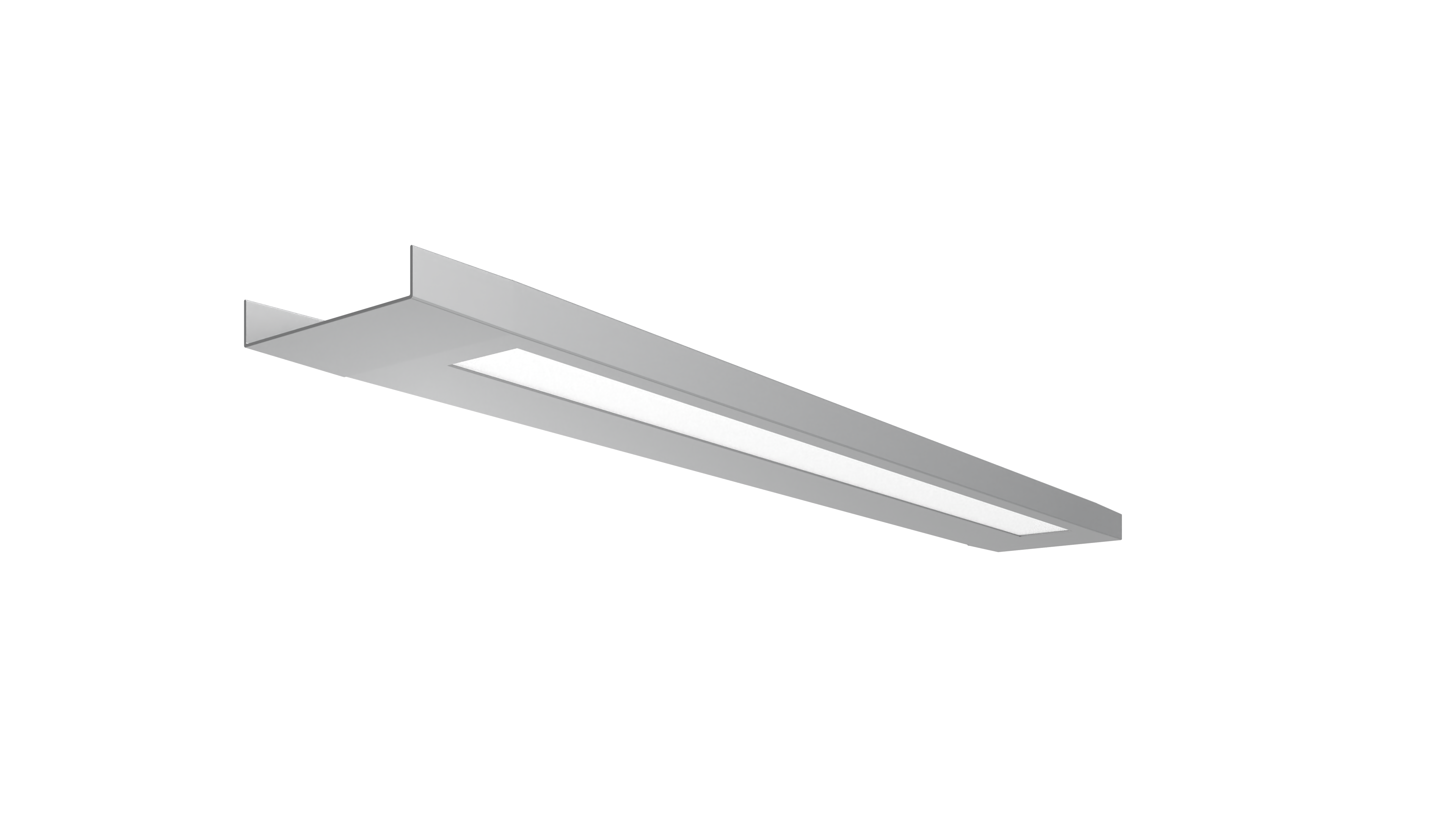

MK-R-765-0001-wall no shadoes.1690.png

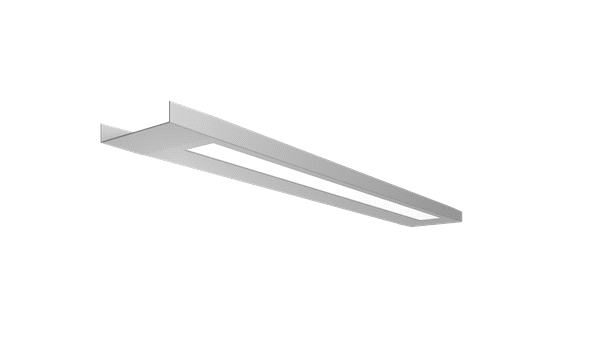

Planar Wall

Planar Wall Linear Lighting in Indirect with Static White

By Mark Architectural Lighting

  • Overview
  • Specifications
The Planar wall mount features a low profile and energy-saving optics. Eight available distributions form a palette of intensity ratios that provide the best optical effect. Available in 4ft. And 8 ft. sections with flat or sculpted end caps, place Planar Wall fixtures across classrooms, or commercial office and hospitality spaces. The Planar wall mount's asymmetric optic is artfully calibrated to deliver indirect direct illumination at 3000K, 3500K or 4000K.
Planar is now Declare listed
Read More
Read Less
Size 4FT, 8FT
Light Source LED - Static
Lumens 400 LM, 650 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Linear
Compliance Listing Declare
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Mounting Type Surface
Voltage Rating 120, 120-277, 277
Series PLW8

Read More Read Less
