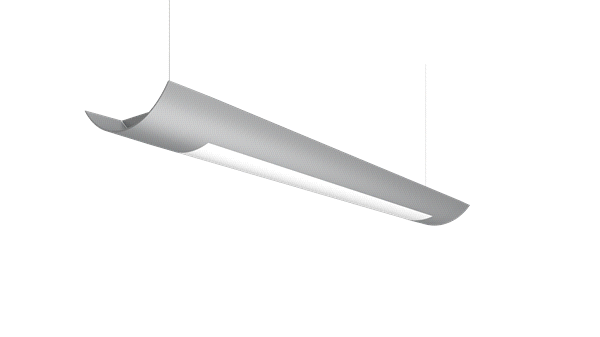

Pillar Pendant

Pillar Suspended Linear Lighting in Direct|Indirect with Static White and Tunable White

By Mark Architectural Lighting

    Tunable White
  • Overview
  • Specifications

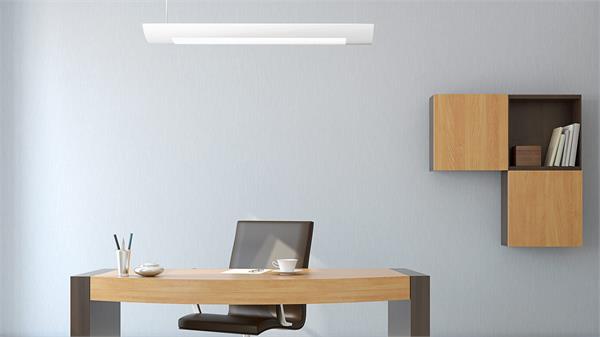

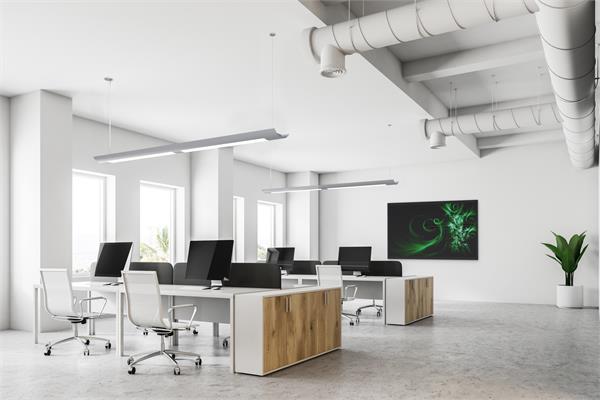

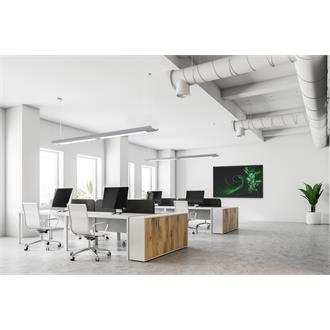

Combining a classic form factor and elevated optical performance, the Pillar cable-suspended pendant adds a minimalist element to classrooms, commercial offices, and hospitality spaces. Its standard batwing distribution delivers up to 1000 lumens per foot direct and 1300 lumens per foot indirect at color temperatures of 3000K, 3500K or 4000K. Available in Static White and Tunable White, choose from 4 ft. or 8 ft. sections, flat or sculpted end caps, and standard and custom colors for added design impact. Complete with optional nLight® wired or wireless controls. Pillar is now Declare listed
Read More
Read Less
Size 4FT, 8FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 300 LM, 500 LM, 700 LM, 1000 LM, 1300 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Linear
Compliance Listing Chicago Plenum, Declare
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Pendant
Voltage Rating 120, 120-277, 277, 347
Series PLLR10ID

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PLLR10ID TUWH.pdf Pillar Indirect/Direct Pendant Tunable White 4/14/2022 View
    SPEC SHEET PLLR10ID.pdf Pillar Indirect/Direct Pendant 4/14/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataReport_PLLR10ID.pdf PLLR10ID 80CRI 27K 6/27/2022 View
  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00203-001_PLLR10ID.pdf Pillar Pendant 10/27/2020 View
    Installation Instructions 912-00208-001_F1_Mounting.pdf F1 T-Bar Ceiling Pendant Mount w/ Universal Mounting Bracket 10/27/2020 View
    Installation Instructions 912-00209-001_F1A_Mounting.pdf F1A T-Bar Ceiling Pendant Mount UMB w/ Integrated J-Box 10/27/2020 View
    Installation Instructions 912-00210-001_F2_Mounting.pdf F2 Hard Ceiling Pendant Mount 10/27/2020 View
    Technical Bulletins NL_1008400_nLight Wired Architectural Ambient Tech Guide_0122_002.pdf nLight Wired Linear Technical Guide 2/3/2022 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Pillar Brochure Pillar Brochure 11/18/2020 View
