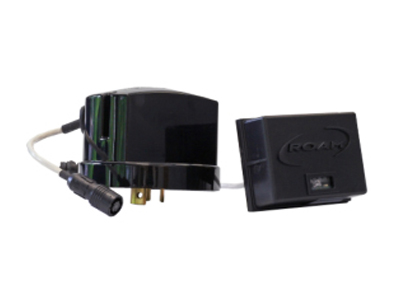

REN127 CM1A

120-277 Volt Decorative Utility Node Assembly

By ROAM

  • Overview
  • Specifications
The decorative utility ROAM node has all the features of the standard ROAM node, but is designed to accommodate Utility Style Decorative Fixtures

PHOTOCONTROL
  • 40¿400 watt fixtures; Voltage 100¿305 VAC 60Hz
  • 320J MOV - 9500 amp surge protection
  • Average Power consumption 1.94 watts
  • Complies with ANSI C136.10 and FCC part 15
  • -40 to +70°C ambient operating temperature
  • ANSI - standard 2.5-5 second turn off/on delay
  • Acrylic window, brass legs, black polycarbonate cover, neoprene gasket
  • Filtered silicon light sensor
  • Optical indicator to alert line crew of problem or malfunction
  • US/Canadian UL Recognized component: File #E331898
WIRELESS ENABLED COMMUNICATION
  • 2.4GHz - IEEE 802.15.4 compatible
  • FCC part 15 approved
  • Range - 1,000 foot clear line of sight
WIRELESS CONTROL
  • Remote on/off control
  • Grouped scheduling (energy savings)
Read More
Read Less
A+ Capable Yes
Application Type Automotive & Parking, Roadways, Bridges & Tunnels
Brand ROAM
Environment Outdoor
Regulatory Listing C-UR, UR
Mounting Type Fixture Attached
Product Type Photo Control
Series REN127
