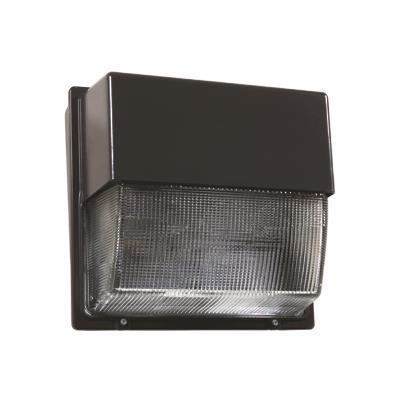

TWH LED

Die-Cast Wall Pack LED Outdoor, Glass

By Lithonia Lighting

    DLC Standard / Premium
  • Overview
  • Specifications
The TWH LED wall pack, cast in a traditional dayform, is standard with adjustable light output allowing distributors to reduce inventory with one product vs three. While contractors can easily adjust to customers’ lighting needs. Customers can save up to 83% in energy compared to traditional light sources.

The TWH LED has a glass refractor providing a long-life solution with great optical control. The flexibility, energy savings, long-life and easy-to-install design of the TWH LED with adjustable light output makes it the smart choice for building-mounted doorway and pathway illumination for nearly any facility.

Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Wallpack
Compliance Listing DLC Standard
Environmental Listing Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V
Fixture Wattage 78
Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
Color Black, Bronze, Silver, White
Mounting Type Surface
Series TWH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET TWH LED Classic.pdf LED Wall Luminaire 11/30/2022 View
    SPEC SHEET TWH-LED-2018-Upgrade_non-ALO.pdf Die-Cast Wall Pack LED Outdoor, Glass 11/30/2022 View
    SPEC SHEET TWH-LED-2018-Upgrade-ALO.pdf TWH LED 2018 Upgrade 11/30/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Instruction Sheet TWH LED Installation Instructions View
    Material Safety Data Sheet SDSForNiCdBatteries.pdf SDS sheet for Bodine_NiCad batteries factory installed with AcuityBrands fixtures 3/26/2019 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet TWH LED Replacement and Repair Kits.pdf TWH LED Door and Lens Repair Kits 3/23/2022 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View

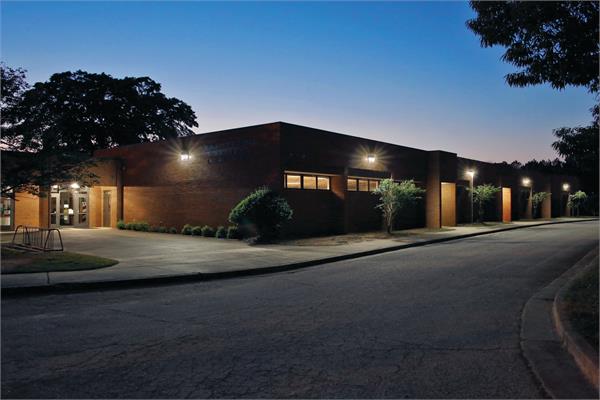

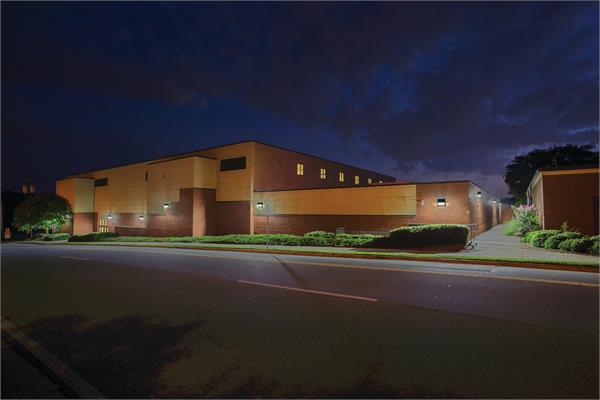

    Brochures Gwinnett Schools_CS TWH LED Case Study - Gwinnett County Schools View
    Brochures Rockdale County Schools_CS TWH LED Wallpack Luminaires Case Study View
    FAQ TWH_TWP LED FAQ.pdf TWH_TWP LED FAQ View
    Sell Sheet TWH TWP Sell Sheet TWH TWP Wall Packs Sell Sheet View
