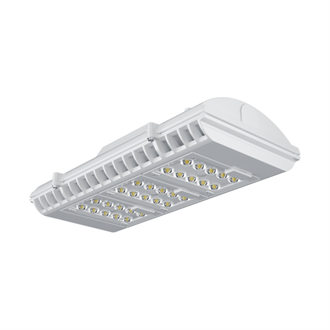

The energy savings, long life, and easy-to-install design of the D-Series LED Surface Canopy luminaire make it the smart choice for canopy lighting in commercial, industrial and institutional applications with mounting heights of 8-15’.
Construction
Two-piece die-cast aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling. Modular design allows for ease of maintenance and future light engine upgrades. The LED drivers are mounted in direct contact with the casting to promote low operating temperature and long life. Housing is completely sealed against moisture and environmental contaminants (IP66) and is suitable for hose-down.
Finish
Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling.
Optics
Precision-molded proprietary acrylic lenses provide five different photometric distributions suited to a variety of canopy and walkway applications. Light engines are available in 3000K (80 min. CRI), 4000K (70 min. CRI) or 5000K (65 min. CRI) configurations.
Electrical
Light engines consist of 10 high-efficacy LEDs mounted to a metal-core circuit board to maximize heat dissipation and promote long life. The electronic driver has a power factor of >90%, THD <20%, and a minimum 2.5 KV surge rating. When ordering the SPD option, a separate surge protection device is installed within the luminaire which meets a minimum Category C low operation (per ANSI/IEEE C62.41.2).
Installation
Mounts to a 4x4” recessed or surface mount outlet box using a quick-mount kit (included); kit contains galvanized steel luminaire and outlet box plates and a full pad gasket. Kit has an integral mounting support that allows the luminaire to hinge down for easy electrical connections. Luminaire and plates are secured with captive screws.
Other
Warranty
Five year limited warranty. Full warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx.
Note: Specifications subject to change without notice.
Shape | Rectangular |
Light Source | LED - Static |
Lumens | 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM |
CCT / LED Color | 3000 K, 4000 K, 5000 K |
CRI | 70 |
Product Type | Canopy |
Compliance Listing | BAA |
Regulatory Listing | CSA |
Dimming Protocol | 0-10V |
Voltage Rating | 120, 208, 240, 277, 347, 480, MVOLT |
Color | Bronze, Silver, White |
Mounting Type | Surface |
Series | DSXSC |
