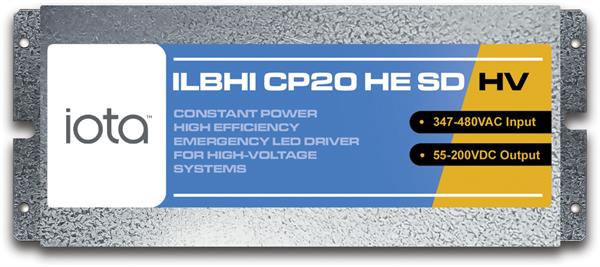

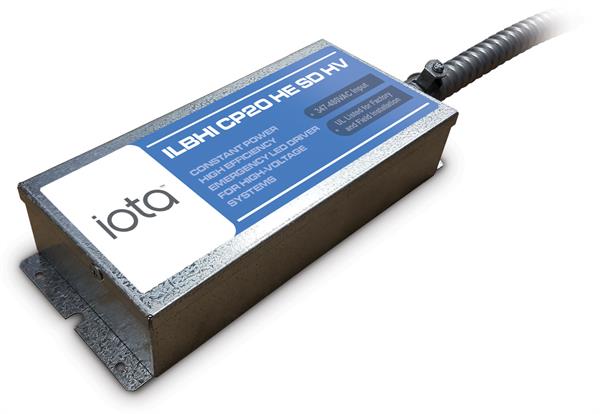

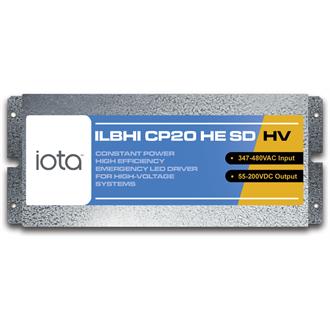

IOTA ILBHI CP20 HE SD HV
IOTA ILBHI CP20 HE SD HV Top View
Dimensions - ILBHI CP HE SD HV - Length: 10.29 in., Width: 4.45 in., Height: 2.04 in., Mounting Center: 9.9 in. by 3.0 in.

ILBHI CP20 HE SD HV Emergency LED Driver

20 Watt Emergency LED Driver for 347-480 VAC Luminaires with 55-200 VDC Non-Class 2 LED Loads

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA ILBHI CP20 HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBHI CP20 HE SD HV switches from the existing AC driver to operate the fixture from the battery supply for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 20 Watts Constant Power
  • 55-200 VDC Nominal Output
Product Advantages
  • 347 to 480V Input
    Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
  • Auto-Sensing Non-Class 2 Output
    Auto-adjusting 55-200 VDC output range accommodates a wide range of Non-Class 2 forward voltage designs

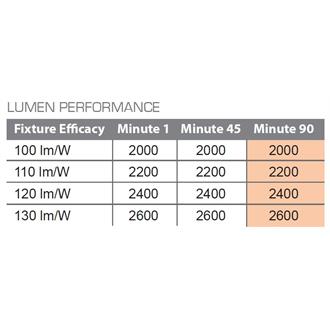

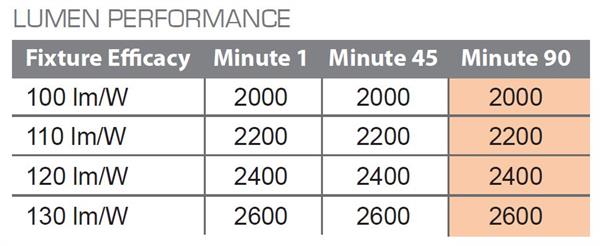

  • Constant Power Performance
    Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-test feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
  • High Output for Increased Illumination
    20W Emergency output is ideal for elevated mounting heights and high-bay fixtures
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 347-480
Frequency 50/60HZ
Load Voltage Rating 55-200 VDC
Output Power 20 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US
Compliance Listing CA Title 20, ROHS
Series ILBHI

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy and Paste Specification Copy and Paste Specs for IOTA ILBHI CP20 HE SD HV emergency driver 1/13/2021
    SPEC SHEET ILBHI CP20 HE SD HV Specification sheet for ILBHI CP20 HE SD HV models 4/19/2022 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Manual - A (Dual Flex) Configuration Installation manual for ILBHI CP HE SD HV A (Dual Flex) models 5/6/2022 View
    Installation Instructions Manual - B (Integral) Configuration Installation manual for ILBHI CP HE SD HV B (Integral Mounting) models 5/6/2022 View
    Installation Instructions Manual - S (Single Flex) Configuration Installation manual for ILBHI CP HE SD HV S (Single Flex) models 5/6/2022 View
    Material Safety Data Sheet MSDS Datasheet for 20W LiFePO Emergency Driver Safety Data Sheet for lithium emergency driver component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins ILBHI CP20 HE SD HV_TC Reference Point Thermal Testing Reference Document 10/6/2020 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram (English) Wiring Diagram DWG Format - Wiring diagram of ILBHI HV models with the TBTS test accessory 5/6/2022
    Wiring Diagram (English) Wiring Diagram PDF Format - Wiring diagram of ILBHI HV models with the TBTS test accessory 5/6/2022 View
    Wiring Diagram (French) Schéma de Câblage Format DWG - Schéma de câblage des modèles ILBHI HV avec l'accessoire de test TBTS 5/6/2022
    Wiring Diagram (French) Schéma de Câblage Format PDF - Schéma de câblage des modèles ILBHI HV avec l'accessoire de test TBTS 5/6/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide Emergency Lighting Solutions for 347-480 VAC Know all of your options for providing emergency lighting to applications using 347-480VAC power. 1/13/2022 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Brochures IOTA ILBHI Flipbook An at-a-glance overview of the IOTA ILBHI Series products and application 11/8/2021 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 View
    Sell Sheet Product Spotlight_ILBHI HV.pdf Feature and benefit highlights of the IOTA ILBHI HV high-voltage emergency drivers. 9/14/2020 View
    Sell Sheet Sell Sheet - ILBHI Series Quick overview of IOTA ILBHI Series products and benefits. 6/17/2021 View
