4800 SWM LED

LED Swimming Pool Fixture

By Hydrel

    Buy America(n)
  • Overview
  • Specifications

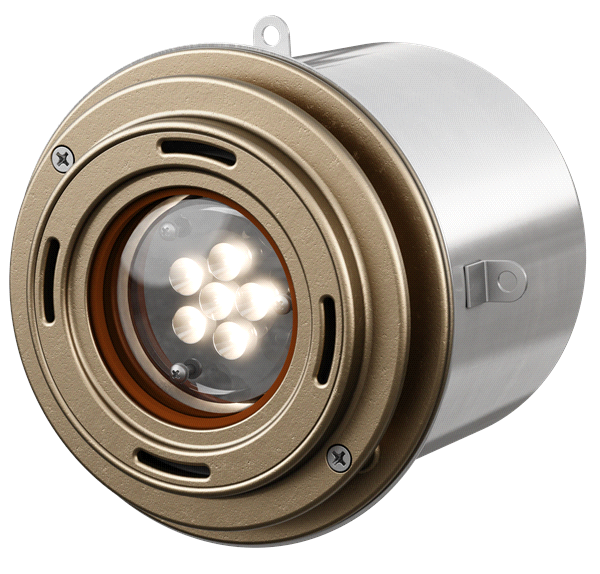

The 4800 Series fixture is a wet niche-mounted pool light with temperature-sensing low water cut-off. The unit is smaller in size than conventional units. It uses 120 or 12 volt LED. The lamp housing and niche are stainless steel. The niche includes a bonding lug on a 3/4" conduit hub.
Read More
Read Less
Light Source LED - Static
Lumens 500 LM
CCT / LED Color 2700 K, 3000 K, 4100 K, 5300 K, Amber Limited Wavelength, Amber Phosphor Corrected, Blue, Green, Red
CRI 70, 80
Product Type Underwater
Compliance Listing BAA
Environmental Listing IP68
Regulatory Listing NOM, UL
Light Distribution Medium Flood, Narrow Spot
Fixture Wattage 9
Voltage Rating 120, Low Voltage
Mounting Type Niche Mount
Series 4800

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 4800 LED Swimming Pool Fixture 4800 LED Swimming Pool Fixture 1/26/2022 View
    SPEC SHEET Remote transformers.pdf Remote transformer Guide 11/16/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 4400/4800 Base Mount Installation Instructions 4800 Base Mount Underwater 8/26/2021 View
    Installation Instructions ABL General Warnings, Form No. 503.204 ABL General Warnings, Form No. 503.204 View
    Installation Instructions ABL LED General Warnings, Form No. 503.203 ABL LED General Warnings, Form No. 503.203 View
    Installation Instructions Relamping and Maintenance Instruction - Underwater Relamping and Maintenance Instruction - Underwater View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet Underwater Niches.pdf Underwater niches - dimensions and part numbers View
