4800 BM YM LED

4800 BM YM LED

LED Fountain and Reflecting Pool

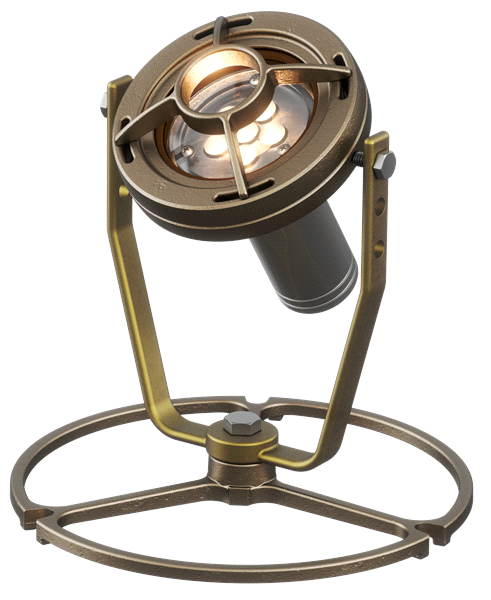

The 4800 Series base or yoke mounted fixture is smaller in size than conventional units and can operate in as little as 10" of water. It uses 120 or 12 volt LED. Rock guard is standard.

Read Less

Light Source	LED - Static
Lumens	500 LM
CCT / LED Color	2700 K, 3000 K, 4100 K, 5300 K, Amber Limited Wavelength, Amber Phosphor Corrected, Blue, Green, Red
CRI	70, 80
Product Type	Underwater
Compliance Listing	BAA
Environmental Listing	IP68
Regulatory Listing	NOM, UL
Light Distribution	Medium Flood, Narrow Spot
Fixture Wattage	9
Voltage Rating	120, Low Voltage
Mounting Type	Base Mount, Yoke
Series	4800

Read More Read Less

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email
SPEC SHEET	4800 Base or Yoke Mounted LED Fountain Fixture	4800 Base or Yoke Mounted LED Fountain Fixture	6/11/2021	View	Download	Email
SPEC SHEET	Remote transformers.pdf	Remote transformer Guide	11/16/2021	View	Download	Email

Create Submittal Spec Sheet

Photometry & Revit (BIM)

Search within... Use %(percent) to separate search terms.

Clear Filters

{{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

View Form Sizing

Description	Report	Design Tools	.ies	BIM

{{photometryItem.Catalog}}	Report	{{tool.Title}}	.ies	BIM

Prev
{{page}}
Next

CLICK HERE to start your request for a BIM Model or IES file.

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Installation Instructions	4400/4800 Base Mount Installation Instructions	4800 Base Mount Underwater	8/26/2021	View	Download	Email
Installation Instructions	4400/4800 Wet Niche Installation Instructions	4800 Wet Niche Underwater	11/8/2012	View	Download	Email
Installation Instructions	ABL General Warnings, Form No. 503.204	ABL General Warnings, Form No. 503.204	11/8/2012	View	Download	Email
Installation Instructions	ABL LED General Warnings, Form No. 503.203	ABL LED General Warnings, Form No. 503.203	11/8/2012	View	Download	Email
Installation Instructions	Relamping and Maintenance Instruction - Underwater	Relamping and Maintenance Instruction - Underwater	11/8/2012	View	Download	Email

Utility Rebate Search

Replacement Parts

Document Type	Document Title	Description	Updated	View	Download	Email
Replacement Part Spec Sheet	Underwater Niches.pdf	Underwater niches - dimensions and part numbers	9/9/2015	View	Download	Email
