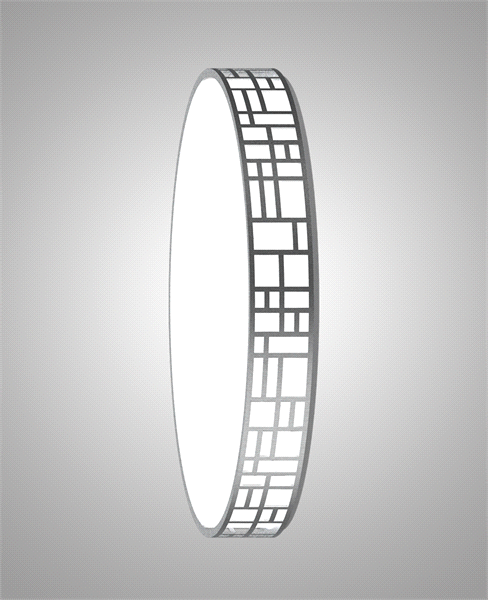

Silhouette HPSS4 Pattern Round Wall Sconce

Silhouette Pattern Round Wall Sconce with Static White, Tunable White and Warm Dimming

By Healthcare Lighting

    WarmDim  Tunable White  Buy America(n)
  • Overview
  • Specifications

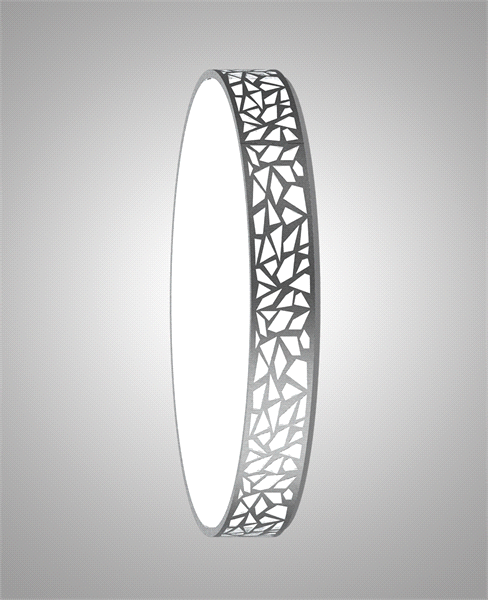

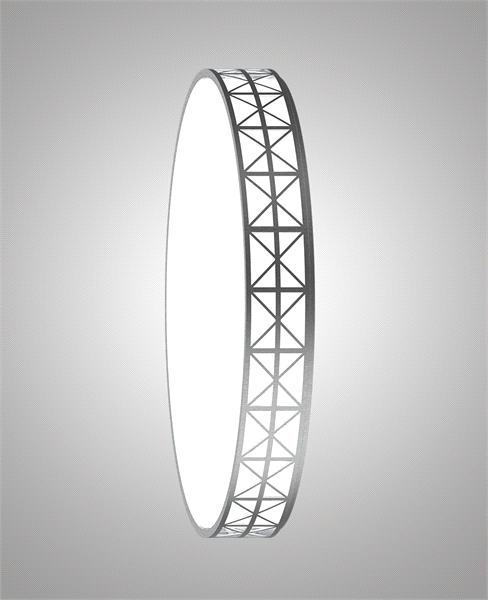

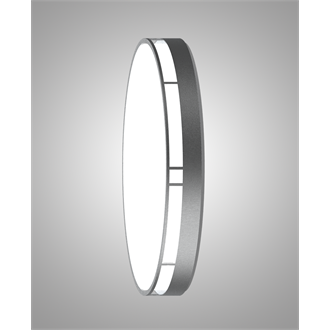

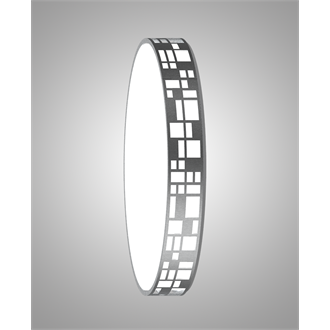

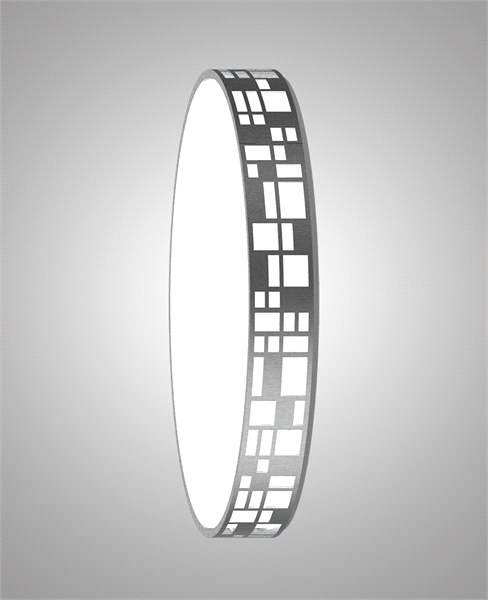

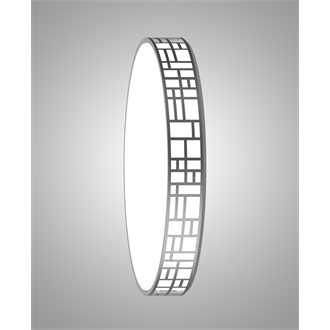

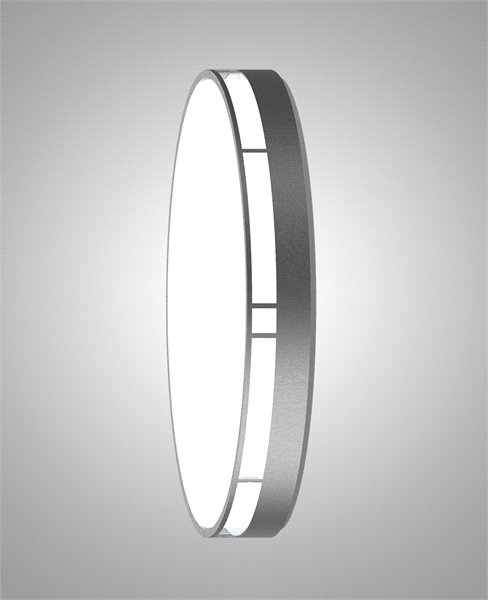

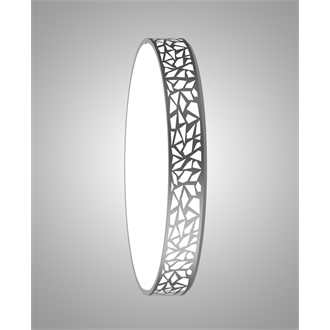

This product is a direct replacement for the former Winona Silhouette wall sconce. The Healthcare Lighting Silhouette pattern round wall sconce pairs smart technology and aesthetics for healthcare settings. Available in a full range of sizes, finishes and patterns, Silhouette is complete with advanced dimming and controls: nLight®, Mainstream Dynamic Tunable White and Warm Dimming. Patterns available for this round wall sconce include: Fence, Rail, Fields, Field Stone and Foliage. The Silhouette round wall sconce is available in the following diameters: 12", 18” and 24”.
Read More
Read Less
Size 12 IN, 18 IN, 24 IN
Light Source LED - Dynamic
Dynamic Feature Tunable White, Warm Dimming
Lumens 600 LM, 800 LM, 1000 LM, 1100 LM, 1400 LM, 1800 LM, 2000 LM, 2200 LM, 2300 LM, 2400 LM, 2600 LM, 2800 LM, 3000 LM, 3200 LM, 3400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Sconce
Compliance Listing BAA
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 11.1, 11.4, 16.6, 20.9, 32.3, 34.2, 35.1, 7.56
Voltage Rating 120, 120-277, 277, 347
Mounting Type Surface
Series HPSS4

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HPSS4_STWH.pdf Silhouette Pattern Round Sconce Static White HPSS4 3/19/2021 View
    SPEC SHEET HPSS4_TUWH.pdf Silhouette Pattern Round Sconce Tunable White HPSS4 3/19/2021 View
    SPEC SHEET HPSS4_WDIM.pdf Silhouette Pattern Round Sconce Warm Dim HPSS4 3/19/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I-HPSS_HPSS4.pdf Installation Instructions HPSS & HPSS4 Round Wall Mount 7/27/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet Silhouette Sell Sheet Silhouette Sell Sheet 8/11/2020 View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent

    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information

    •  Contact Us (Lighting)

    •  Contact Us (Controls Services & Support)


    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim

Product Family

Healthcare Lighting

Silhouette Lighting | Healthcare L...

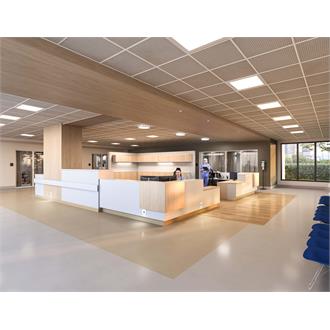

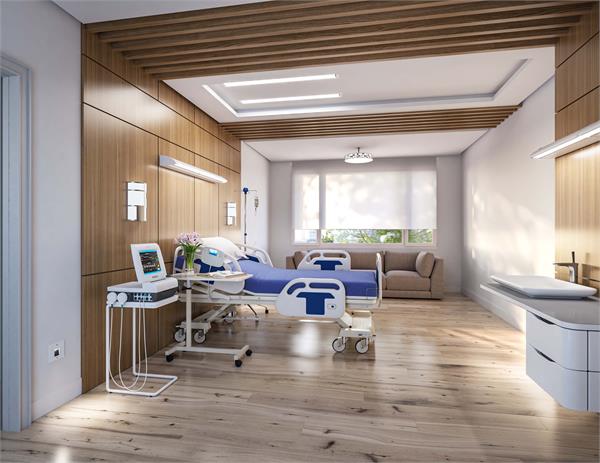

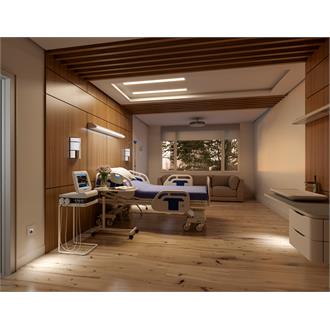

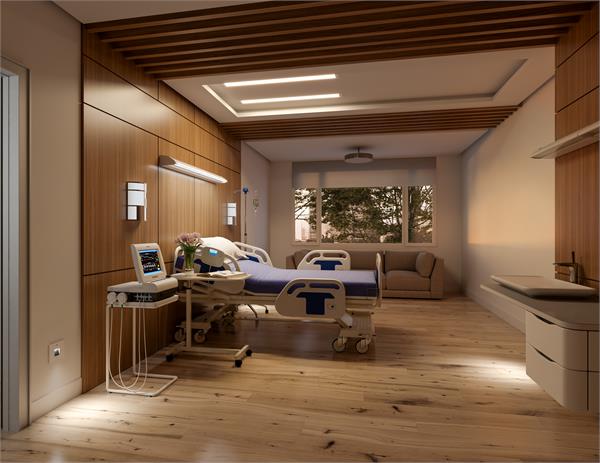

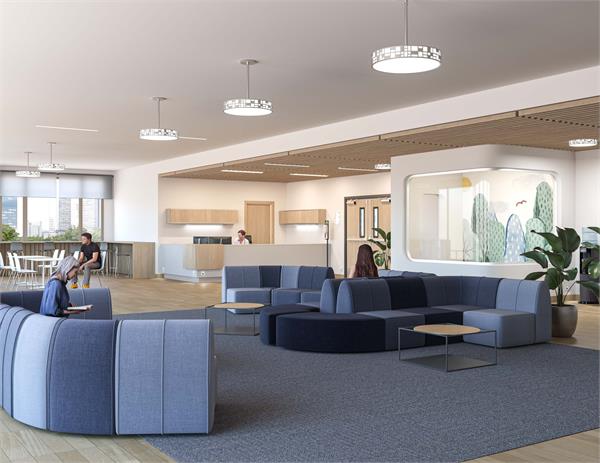

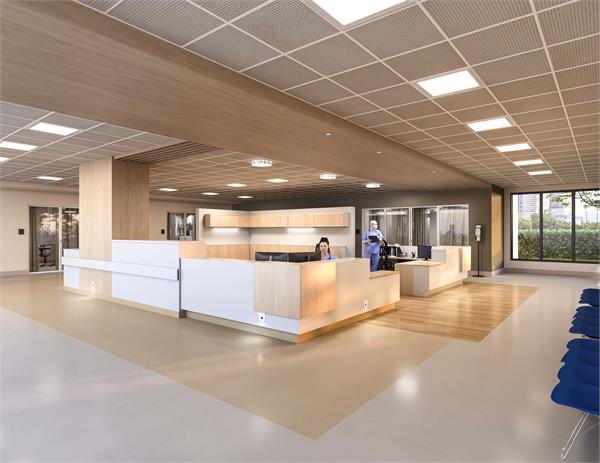

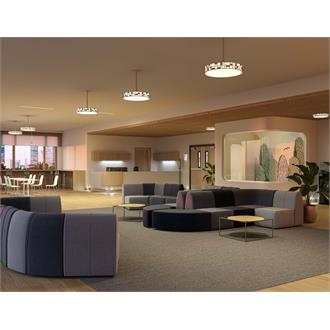

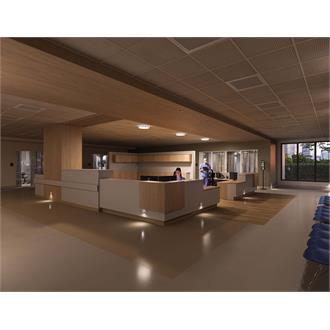

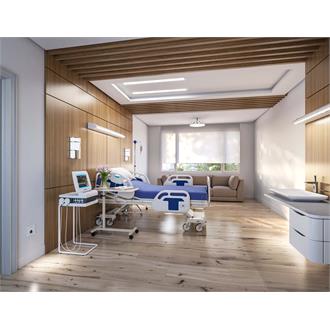

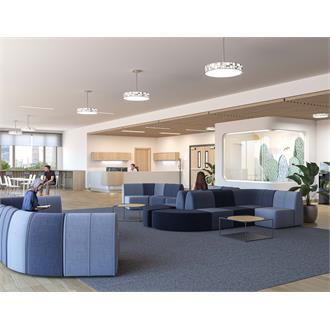

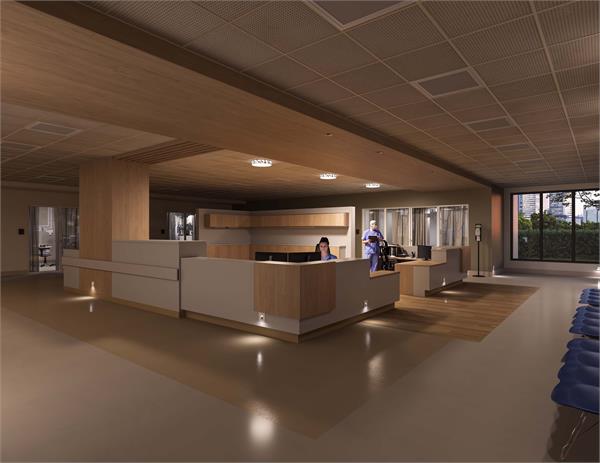

The Silhouette family of performance-decorative luminaires creates subtle or dramatic accents for healthcare spaces.
