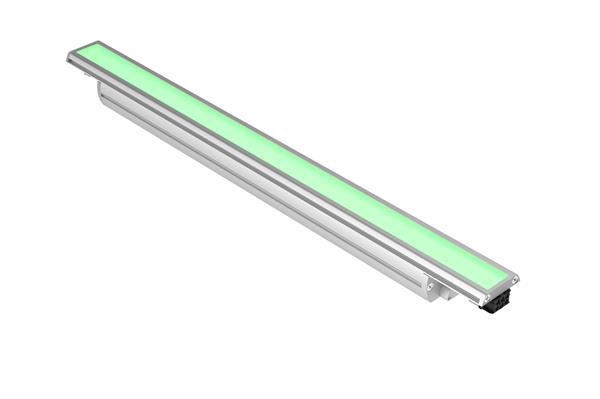

MARKCOVE 502 Cove Luminaire

MARKCOVE Linear Lighting with Static White, Tunable White, Warm Dimming, Static Color and RGBW

By Mark Architectural Lighting

    WarmDimTunable WhiteColor ChangingBuy America(n)
  • Overview
  • Specifications
Craft your cove with Markcove 502. An exceptionally wide distribution and luminous efficacy come in a small profile for today's smaller coves. Markcove 502 is available in a range of lumen packages and ouputs, like Static Color or color changing RGBW, for an added dimension that complements any design atmosphere. Markcove 502 is available in 2 ft., 3 ft. or 4 ft. section lengths, and with a wet location listing.
Read More
Read Less
Size 2FT, 3FT, 4FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Architainment Color, Tunable White, Warm Dimming
Lumens 300 LM, 450 LM, 600 LM, 650 LM, 750 LM, 800 LM, 1000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength, Blue, Green, Red
CRI 80, 90
Product Type Linear
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX
Light Distribution Wide Flood
Mounting Type Arm Mount, Base Mount, Niche Mount, Surface
Voltage Rating 120-277
Series MCV502

Read More Read Less
