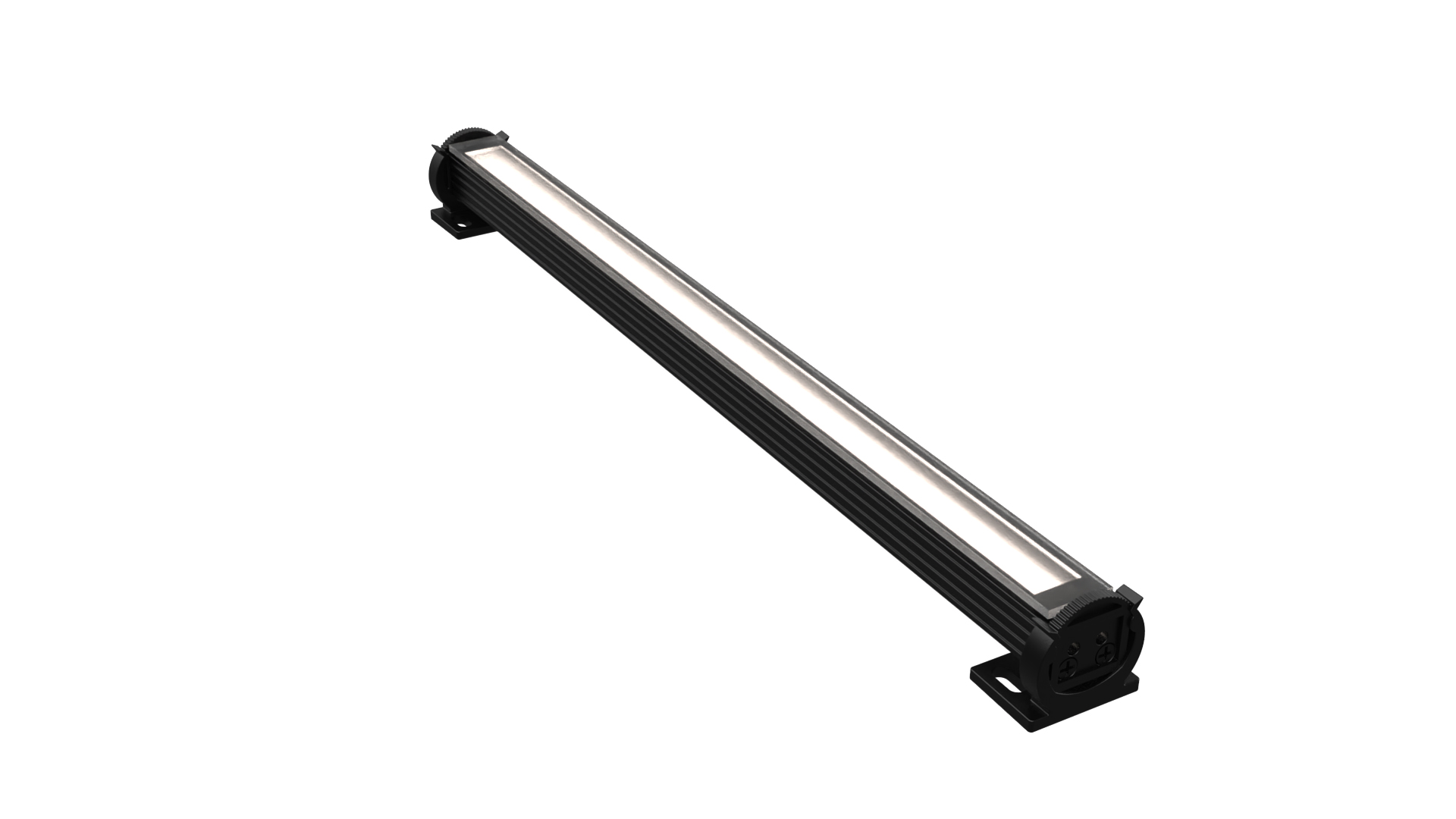

Hyline105 and 107_2.jpg

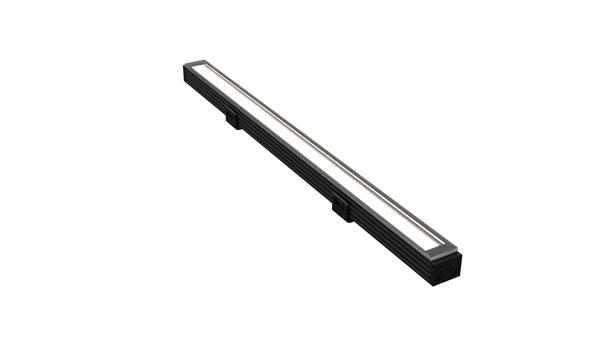

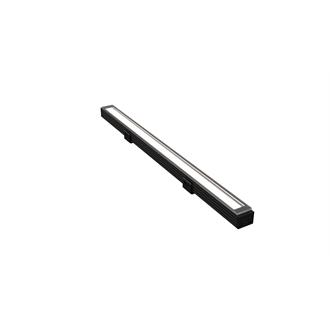

Hyline105 ans 107.jpg

HYLINE100 LED

Exterior High Output Linear Low Voltage Static White LED Surface Mount

By Hydrel

    Buy America(n) Option Available
  • Overview
  • Specifications
This product is a direct replacement for the former Winona Winline 107W and 105W. The HYLINE HLF100 Series is a high performance outdoor linear LED luminaire that is suitable for the illumination and grazing of walls, ceilings and other planes in wet locations. The HLF100 Series operates on 24VAC and can be dimmed with commonly available low voltage magnetic dimming equipment. A wide range of remote transformers are available in 120V and 277V primary.
Read More
Read Less
Size 1FT, 2FT, 3FT, 4FT, 18 IN, 30 IN
Light Source LED - Static
Lumens 160 LM, 184 LM, 190 LM, 200 LM, 240 LM, 280 LM, 290 LM, 310 LM, 320 LM, 370 LM, 380 LM, 390 LM, 400 LM, 410 LM, 470 LM, 480 LM, 500 LM, 560 LM, 590 LM, 610 LM, 620 LM, 635 LM, 640 LM, 650 LM, 670 LM, 720 LM, 750 LM, 780 LM, 800 LM, 925 LM, 950 LM, 1000 LM, 1100 LM, 1125 LM, 1200 LM, 1275 LM, 1300 LM, 1400 LM, 1500 LM, 1600 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Linear
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing ETL
Dimming Protocol 0-10V, Magnetic Low Voltage
Light Distribution Medium Flood
Voltage Rating 024
Mounting Type Surface
Color Black, White
Series HLF105, HLF107

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HLF100.pdf HLF105, HLF107 Hydrel Linear Flood 5/19/2021 View
