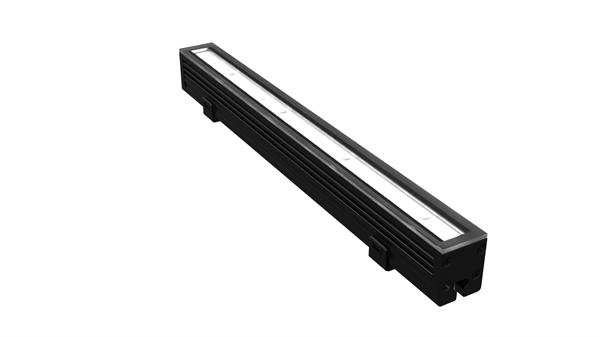

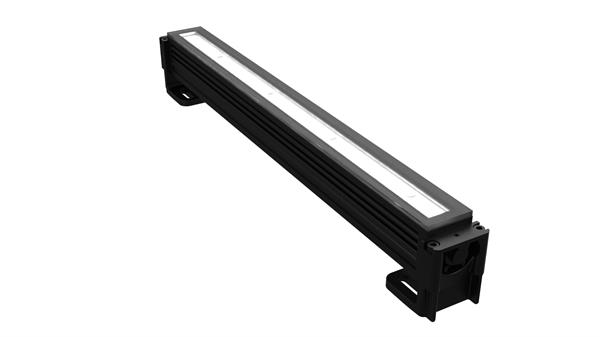

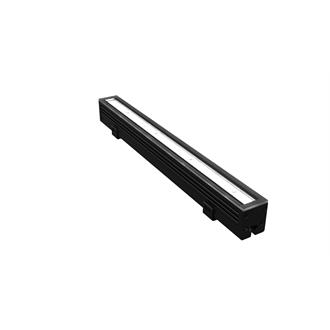

HYLINE200 LED

Exterior Linear Low Voltage Static White LED Surface Mount

By Hydrel

    Buy America(n)
  • Overview
  • Specifications
This product is a direct replacement for the former Winona Winline 207W, 209W and 211W. The HYLINE HLF200 series is a high performance outdoor linear LED luminaire, suitable for the illumination and grazing of walls, ceilings and other planes in wet locations. The HLF200 Series operates on 24VAC and can be dimmed with commonly available low voltage magnetic dimming equipment. A wide range of remote transformers are available in 120V and 277V primary.
Read More
Read Less
Size 1FT, 2FT, 3FT, 4FT, 18 IN, 30 IN
Light Source LED - Static
Lumens 190 LM, 230 LM, 240 LM, 280 LM, 290 LM, 340 LM, 360 LM, 380 LM, 390 LM, 400 LM, 460 LM, 470 LM, 480 LM, 490 LM, 560 LM, 590 LM, 600 LM, 670 LM, 700 LM, 720 LM, 770 LM, 780 LM, 800 LM, 850 LM, 900 LM, 925 LM, 950 LM, 1000 LM, 1045 LM, 1125 LM, 1200 LM, 1300 LM, 1400 LM, 1500 LM, 1600 LM, 1700 LM, 1750 LM, 1800 LM, 1850 LM, 1900 LM, 2100 LM, 2400 LM, 2500 LM, 2600 LM, 2800 LM, 2900 LM, 3000 LM, 3300 LM, 3500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Linear
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing ETL
Dimming Protocol 0-10V, Magnetic Low Voltage
Light Distribution Medium Flood, Spot, Wide Flood
Voltage Rating 024
Mounting Type Surface
Color Black, White
Series HLF207, HLF209, HLF211

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HLF200.pdf Hyline Linear Floods, HLF207, HLF209, HLF211 5/19/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INST_SHT_HLF207_209_211.pdf HYLINE200 HLF207, HLF209 & HLF211 LED Linear 2/17/2022 View
