HYSTEP13 6 Inch

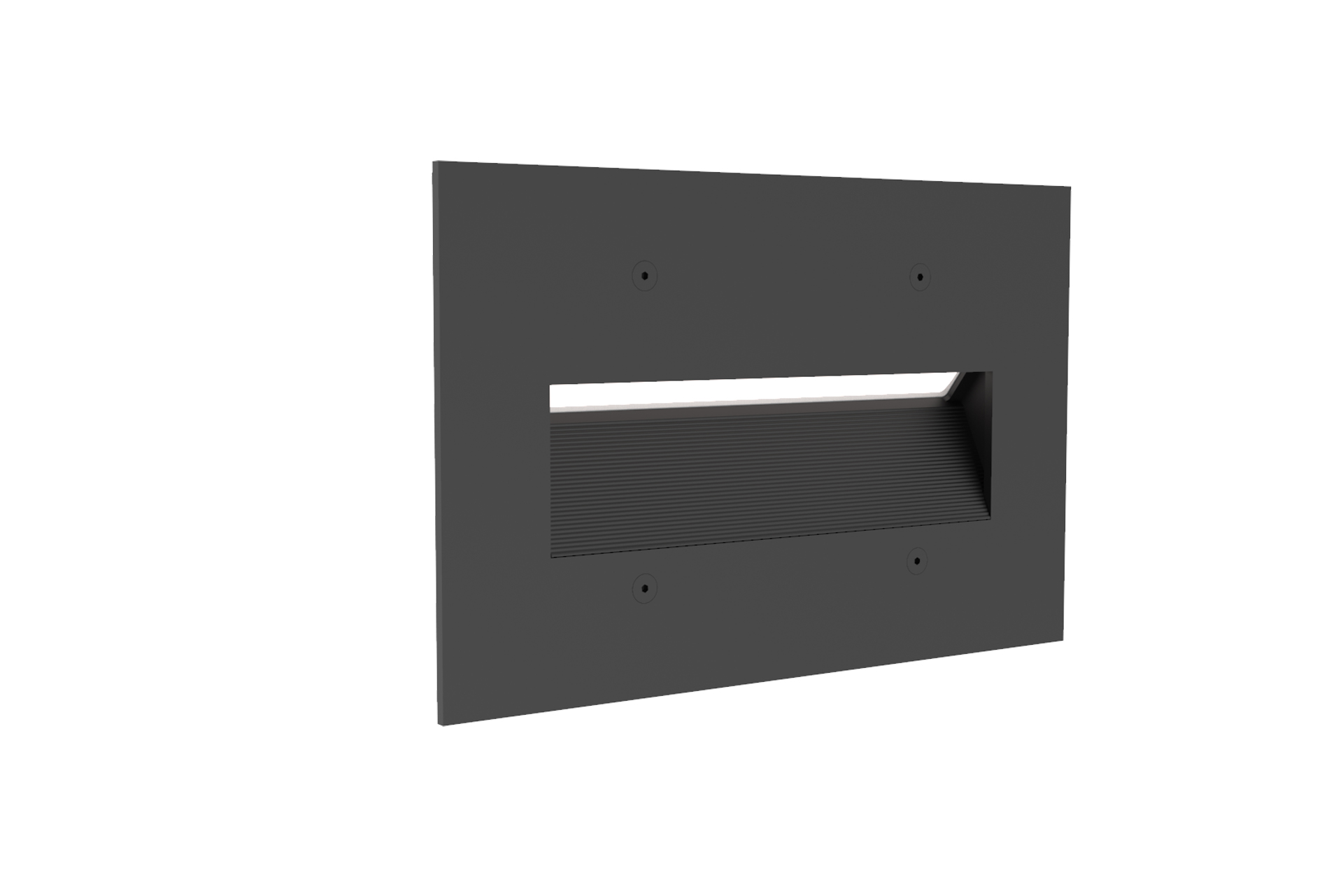

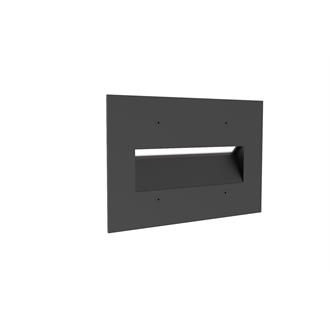

Exterior 6 Inch Long Aperture Step and Pathway LED Light

By Hydrel

    Buy America(n) Option Available
  • Overview
  • Specifications

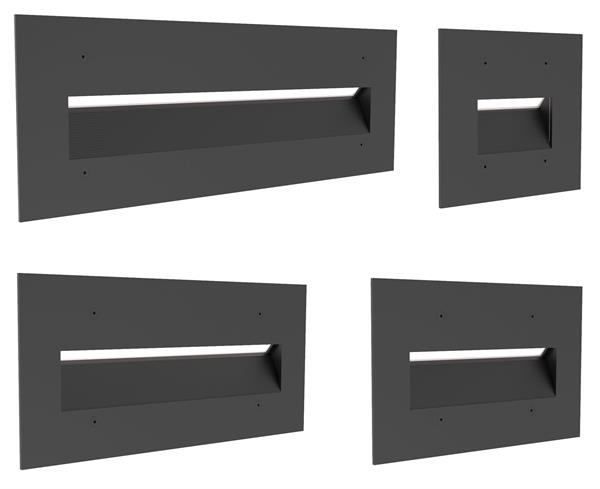

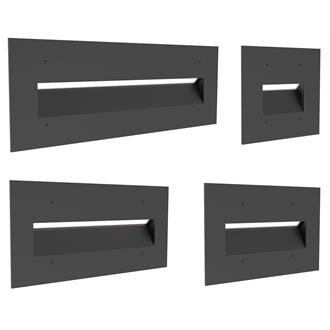

The HYSTEP 6-inch is an architectural outdoor step light that uses a concealed optic. The HYSTEP is available in 11 static LED color choices, including five white and six color temperatures, the step light mounts over a multi-gang junction box based upon size and uses visible fasteners.
Read More
Read Less
Light Source LED - Static
Lumens 190 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength, Blue, Green, Red
CRI 80
Product Type Step Light
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing ETL
Dimming Protocol 0-10V
Light Distribution Low Forward
Fixture Wattage 5
Voltage Rating 120-277
Mounting Type Semi-recessed
Color Black, Bronze, Silver, White
Series HSL13

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HSL13.pdf HSL13 Step Light 1/30/2023 View
    Design Select
