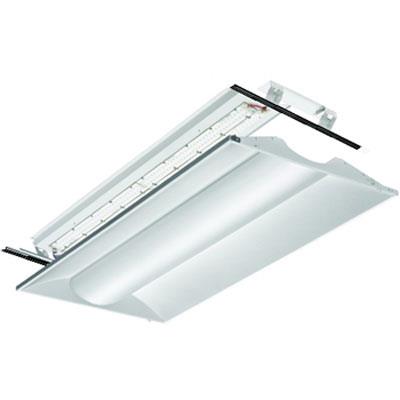

VTLR LED

LED RELIGHT Assembly System for Lensed & Parabolic Troffers (VTLR\VTLRT) featuring eldoLED

By Lithonia Lighting

    DLC Standard / Premium
  • Overview
  • Specifications
The VTLR is a specification grade relight kit from Lithonia Lighting®. VTLR offers a simpler, faster solution to upgrade existing fluorescent parabolics to high-efficiency volumetric LED lighting in Class A spaces. The VTLR refreshes your space with improved quality of light without the need to remove the host fixture. Multiple lumen packages, eldoLED® high-performance driver options and nLight® lighting controls options further enhance energy savings and design flexibility.


  • Easy Installation with universal end brackets
  • Standard kit is UL approved for air-handling host fixtures
  • Available in 2’x2’ and 2’x4’
  • Environmentally friendly
Read More
Read Less
Size 2x2, 2x4
Shape Rectangular
Light Source LED - Static
Lumens 1700 LM, 2000 LM, 2300 LM, 3000 LM, 3300 LM, 3400 LM, 3900 LM, 4000 LM, 4800 LM, 6000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Retrofit Kit
Compliance Listing DLC Premium, DLC Standard
Environmental Listing Dry Location
Regulatory Listing UL
Dimming Protocol 0-10V, Not Applicable
Fixture Wattage 17.5, 26.4, 29.5, 33.2, 35.7, 39.1, 44.2
Voltage Rating 120-277, 347
Color White
Mounting Type Recessed
Series RK22VTL4R, RK22VTL2R, RK12VTL4R, RK12VTL2R, 2VTL2R, 2VTL4R, 2VTL4R, 2VTL4RT, 2VTL2RT, 2VTL4RF, 2VTL2RF

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 2VTLRF drywall bracket details 09-11-2014 2VTLRF Drywall bracket version details spec sheet View
    SPEC SHEET LED relight for 2x2 recessed parabolic LED relight for 2x2 recessed parabolic 7/22/2021 View
    SPEC SHEET LED relight for 2x4 recessed parabolic LED relight for 2x4 recessed parabolic 7/22/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_2VTL2R_30K_80CRI.pdf SpectralDataSheet_LL_2VTL2R_30K_80CRI.pdf 8/5/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_2VTL4R_30K_80CRI.pdf SpectralDataSheet_LL_2VTL4R_30K_80CRI 8/5/2022 View
  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions VTLR RELIGHT INSTRUCTIONS VTLR LED Relight Installation Instructions View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VTLR Series Replacement Parts Kit 2.17.2022.pdf VTLR Series Replacement Part Kits 2/17/2022 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ vt FAQs View
    Sell Sheet VTLR Sell Sheet VTLR Relight Kit Sell Sheet 6/9/2020 View
