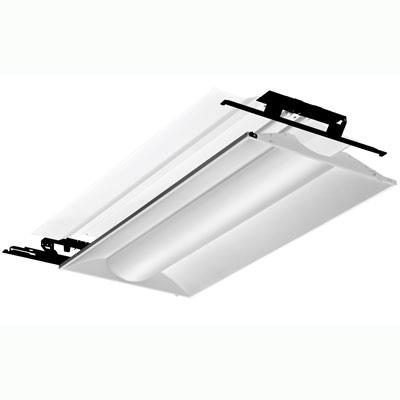

VT8R

Relighting for parabolic fixtures

By Lithonia Lighting

  • Overview
  • Specifications

The 2VT8R Relight assembly is the ideal solution for renovating obsolete and inefficient parabolic systems, delivering improved quality of light and refreshing the space. VTR volumetric lighting eliminates the “cave effect” by delivering the ideal amount of light to walls, work surfaces, and people. The 2VT8R Relight assembly is recommended for offices, schools, hospitals, and other general lighting applications where existing 2x4 or 2x2 parabolic fixtures are currently in use.


Construction

End bracket bases and lampholder brackets are constructed of 20-gauge powder-painted steel. End bracket bases are painted black to match existing parabolic fixture doorframe reveals. The one-piece reflector is die-formed aluminum finished in either highly reflective 92% white powder paint (standard) or in 95% specular anodized finish (HE option).

The doorframe / external reflector assembly is vaulted cold-rolled steel with embossed facets and is painted after fabrication. Impact-modified, single clear acrylic diffuser provides excellent shielding and wide distribution.

Optics

Volumetric illumination is delivered by creating an optimal mix of light to walls, partitions, vertical and horizontal work surfaces — rendering the interior space, objects and occupants in a more balanced, complementary luminous environment. Vaulted reflector cavity with linear facets softens and distributes light into the space while minimizing luminous contrast between the fixture and ceiling. Sloped end plates provide a smooth, luminous transition between fixture and ceiling while enhancing the perception of fixture depth.

Electrical

Standard ballast is high-efficiency, CEE (Consortium for Energy Efficiency) qualified, instant start, <10% THD, universal voltage and sound rated A. Suggested lamps are high-lumen, long-life super T8 lamps which contribute to optimizing system performance. Optional program start and step-dim bi-level ballasts are available as well as several ballast factor options to maximize energy savings and to allow the amount of light to be balanced to the application.

Installation

End bracket bases (painted black to match parabolic reveal) are secured to the host fixture with provided tek screws. The pre-wired electrical module is mounted to the host fixture channel with included self-tapping tek screws. The lampholder assemblies are pre-wired to the ballast and simply snap into position on the end brackets. Optimum lamp position relative to aperture is consistently maintained by the positive snap-fit installation. The ballast assembly wires to the supply voltage using a driver-disconnect plug system provided as standard. (A wiring connection cover is provided for use if required.) The one-piece highly efficient reflector slides into place and is secured without tools using integral tabs.

The unitized reflector / refractor doorframe assembly attaches firmly to the end bracket via a reliable sliding hinge and is secured in the closed position with a rotating cam latch. The doorframe and reflector assembly is cold-rolled steel with embossed facets and is painted after fabrication. Impact-modified, single clear acrylic diffuser provides excellent shielding and wide distribution.

Installation of Relight assembly does not significantly reduce air-handling functions. UL/cUL listing of the host fixture is not affected.

Suitable for damp location and air-handling installations.

Read More
Read Less
Size 2x2
Shape Rectangular
Light Source Fluorescent
Product Type Retrofit Kit
Regulatory Listing UL
Fixture Wattage 17
Voltage Rating 120-277, 347
Color White
Mounting Type Recessed
Series 2VT8R
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Relighting for 2x2 parabolic fixtures - T8 lamps Relighting for 2x2 parabolic fixtures - T8 lamps View
    SPEC SHEET Relighting for 2x4 parabolic fixtures - T8 lamps Relighting for 2x4 parabolic fixtures - T8 lamps View
