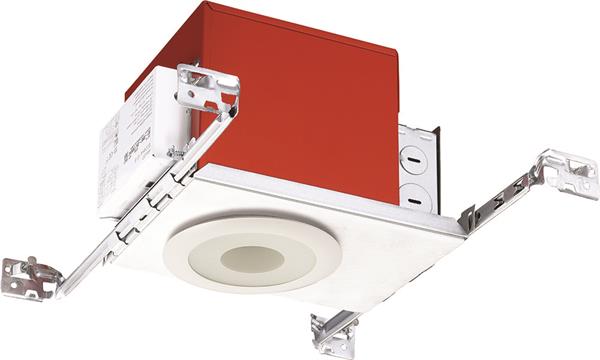

IC1LEDFW Housing

FireWall™ 4in LED Fire-Rated Integrated New Construction Housing

By Juno

    WarmDim  Energy Star®  CA Title 24/JA8
  • Overview
  • Specifications
The Juno® IC1LEDFW FireWall™ 4-inch Fire-Rated downlight solution offers an integral LED light engine delivering up to 1400 lumens and is compatible with a comprehensive selection of standard Juno trims. The new construction housing features an innovative, patent pending mechanical design stringently tested to conform to UL263 and ASTM STD E119 to provide protection against the spread of heat and flames into the ceiling cavity for 1 hour and 2 hours. The IC-rated fixture’s shallow housing can fit in a 2 x 6 construction and can be completely covered with insulation. The fixture is Air-Loc® sealed to stop infiltration and exfiltration of air, reducing heating and cooling costs. ENERGY STAR® Qualified and certified to meet the high efficacy requirements of California T24.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Warm Dimming
Lumens 700 LM, 800 LM, 1000 LM, 1400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Color Unfinished
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 11.6
Series IC1LEDFW

Read More Read Less
