CLF7L Linear, Continuous Run

7" Wide Vertex Vandal Resistant LED Fixture for Linear Runs. Ceiling or Wall Mount.

By Luminaire LED

    Buy America(n)
  • Overview
  • Specifications

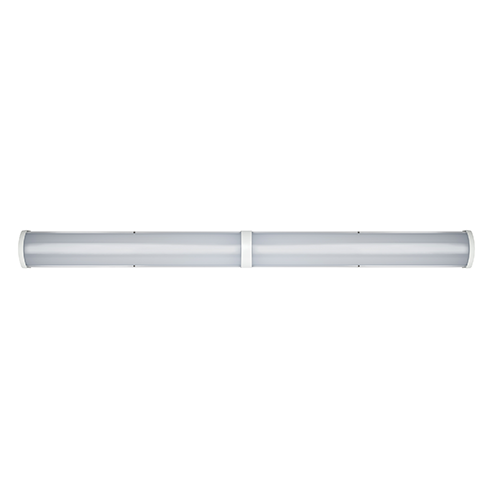

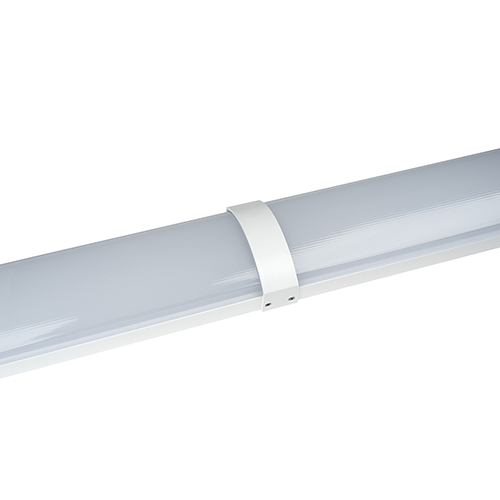

The vandal resistant Vertex CLF7L fixture for linear runs is a linear vandal resistant fixture. It combines sophisticated optical performance with an economical, steel construction that is typically used in applications where durability is required. Successful applications have included schools, airports, industrial facilities and public rest areas. The CLF7L is also available with energy saving occupancy sensors and can be continuous row mounted as needed. It is available in three lengths and in 2700K, 3000K, 3500K, 4000K, and 5000K CCT with 82 CRI.
Read More
Read Less
Light Source LED - Static
Lumens 1500 LM, 2000 LM, 3000 LM, 4400 LM, 5700 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Compliance Listing BAA
Environmental Listing Damp Location
Regulatory Listing UL
Product Type Linear
Series CLF7L
Application Type Education, Healthcare, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 15, 20, 25, 40, 50
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-VERTEX-CLF7L-LED.pdf CLF7L Linear LED 6/24/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions InstallationSheet-CLF7L-CLF11L-LED.pdf CFL7L, CFL11L Installation Instruction Sheet 3/15/2020 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet CLF7-REPLACEMENT-PARTS.pdf CLF7 Replacement Parts 6/22/2021 View
