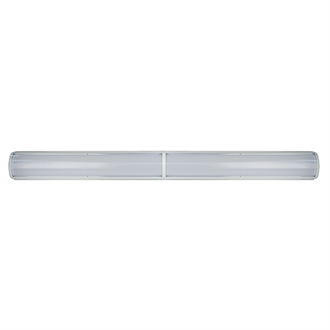

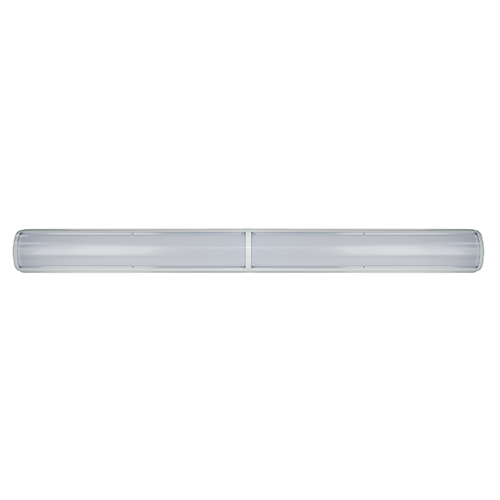

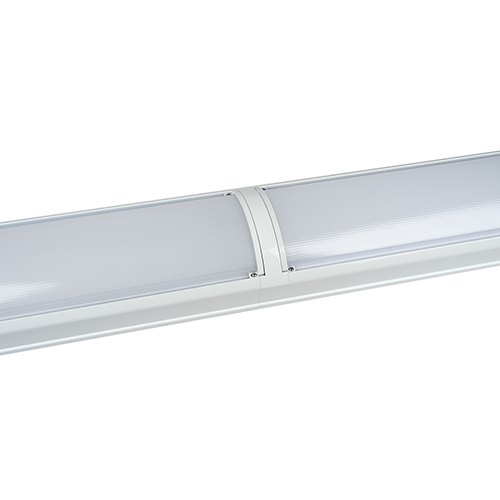

VPF8L Linear, Continuous Run

8" Wide Vision Vandal Resistant LED Fixture for Linear Runs. Ceiling, Pendant or Wall Mount.

By Luminaire LED

    Buy America(n)
  • Overview
  • Specifications
The vandal resistant Vision VPF8L fixture for linear runs features an all-aluminum, ligature resistant construction which allows it to be used in any environment. A polycarbonate lens provides complete control of glare and LED image while maintaining the high efficiency of clear optical material. Optional Microwave or Bluetooth connected occupancy sensors can be mounted discreetly behind the lens for a clean fixture appearance. The VPF8L is available in 2700K, 3000K, 3500K, 4000K, 5000K, and can be row mounted to any length. A natatorium finish is standard for the VPF8L.
Read More
Read Less
Light Source LED - Static
Lumens 1400 LM, 2100 LM, 3000 LM, 4100 LM, 5200 LM, 5700 LM, 8000 LM, 11,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Linear
Series VPF8L
Application Type Education, Healthcare, Natatorium, Vandal Resistant
Fixture Wattage 100, 15, 20, 25, 40, 50, 70
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-VISION-VPF8L-LED.pdf VPF8L Linear LED 7/21/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions InstallationSheet-VPF8L-LED.pdf VPF8L Installation Instruction Sheet 3/18/2020 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VPF8-REPLACEMENT-PARTS.pdf VPF8 Replacement Parts 7/1/2021 View
