Luminaire LED

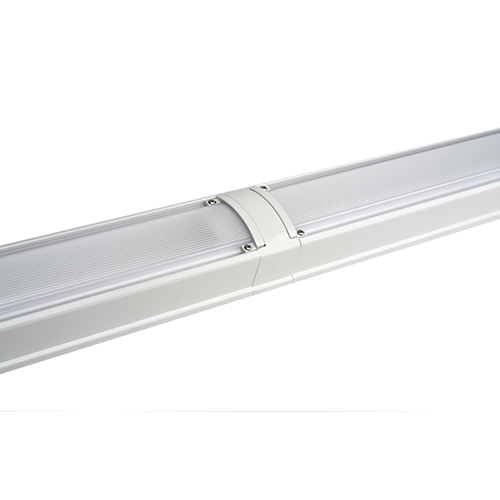

VPF4L Linear, Continuous Run

4" Wide Vision Vandal Resistant LED Fixture for Linear Runs. Ceiling, Pendant or Wall Mount.
    CA Title 20Buy America(n) Option AvailableBuy America(n) Option Available
  • Specifications
The vandal resistant Vision VPF4L fixture for linear runs features an all-aluminum, ligature resistant construction which can be used in any environment. A polycarbonate lens provides complete control of glare and LED image while maintaining the high efficiency of clear optical material. Optional Bluetooth connected occupancy sensors can be mounted discreetly behind the lens for a clean fixture appearance. The VPF4L 4-inch wide fixture is available in 2700K, 3000K, 3500K, 4000K, 5000K or Amber, and can be row mounted to any length. A natatorium finish is standard for the VPF4L.
Read More
Read Less
Light Source LED - Static
Lumens 1200 LM, 2200 LM, 2900 LM, 3100 LM, 4500 LM, 5400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Linear
Series VPF4L
Application Type Education, Healthcare, Natatorium, Vandal Resistant
Fixture Wattage 15, 20, 25, 30, 40, 50
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet LUMINAIRE-LED-VISION-VPF4L-LED.pdf VPF4L Linear LED 8/28/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions InstallationSheet-VPF4L-LED.pdf VPF4L 4" Width Continuous Linear Surface, Wall & Ceiling Mount 3/15/2020 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VPF4-REPLACEMENT-PARTS.pdf VPF4 Replacement Parts 7/1/2021 View
