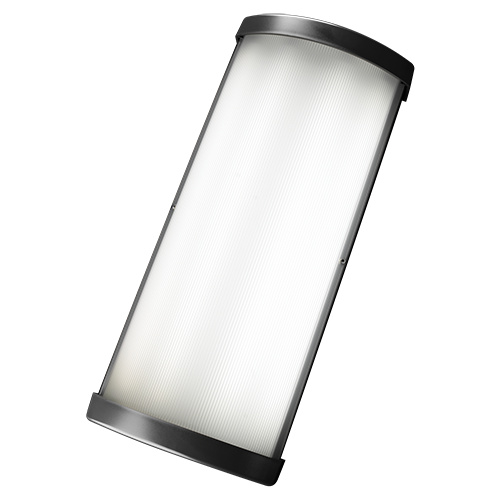

CLF11 Linear, Single Mount

11" Wide Vertex Vandal Resistant LED Fixture. Available in three fixture lengths for Ceiling or Wall Mount.

By Luminaire LED

    Buy America(n)
  • Overview
  • Specifications
Vertex CLF11 is a linear vandal resistant fixture. It combines sophisticated optical performance with an economical, steel construction that is typically used in applications where durability is required. Successful applications have included schools, airports, industrial facilities and public rest areas. The CLF11 is also available with energy saving occupancy sensors and can be continuous row mounted as needed. It is available in three lengths and in 2700K, 3000K, 3500K, 4000K, and 5000K CCT with 82 CRI.
Read More
Read Less
Light Source LED - Static
Lumens 1800 LM, 2400 LM, 3600 LM, 5400 LM, 8100 LM, 10,800 LM, 16,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Compliance Listing BAA
Regulatory Listing UL
Product Type Linear
Series CLF11
Application Type Education, Healthcare, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 100, 160, 20, 25, 40, 50, 80
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-VERTEX-CLF11-LED.pdf CLF11 LED 6/24/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions InstallationSheet-CLF7-CLF11-LED.pdf CLF7, CLF11 Installation Instruction Sheet 3/15/2020 View
    Installation Instructions InstallationSheet-CLF7-CLF11-LED-w-Corner-Back-Box.pdf CLF7, CLF11 w-Corner Back Box Installation Instruction Sheet 3/15/2020 View
