Product Image

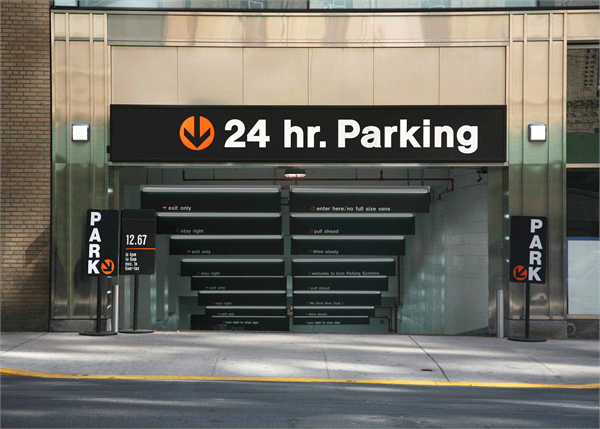

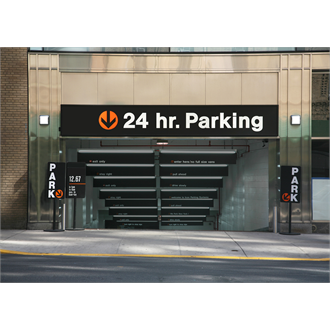

SWP1212_parking

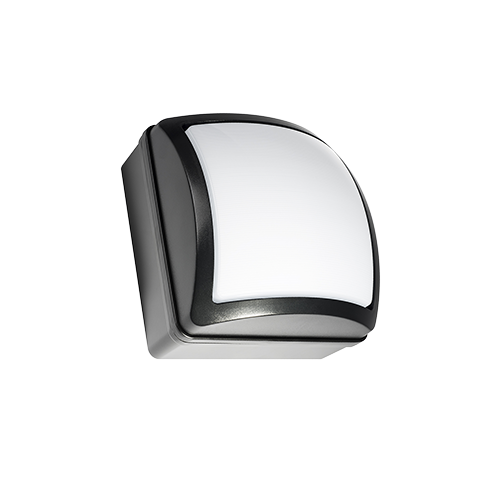

SWP1212 BACK BOX.jpg
SWP1212 BACK BO KOX.jpg

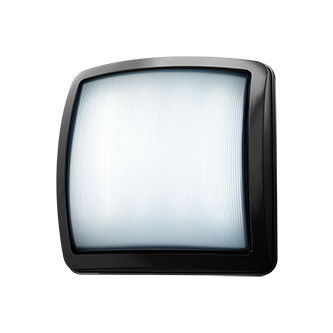

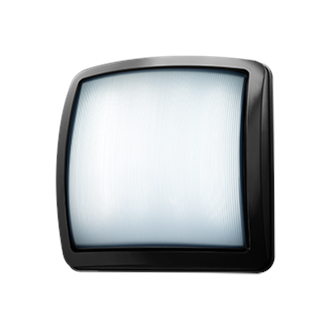

SWP1212 Surface Mount

12”x12” Swoop Fixture is Uniquely Designed to Provide an Architectural Vandal Resistant Solution. Standard LED, Amber or High Output.

By Luminaire LED

    CA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

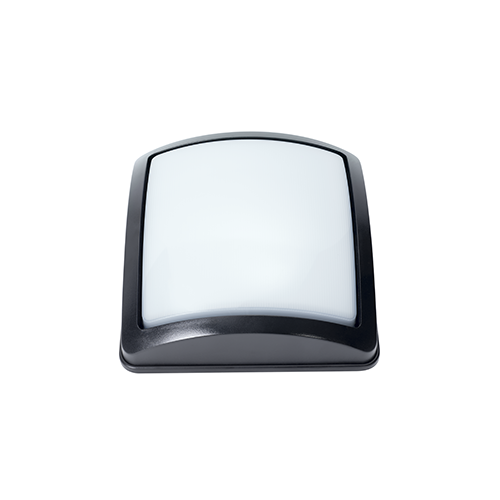

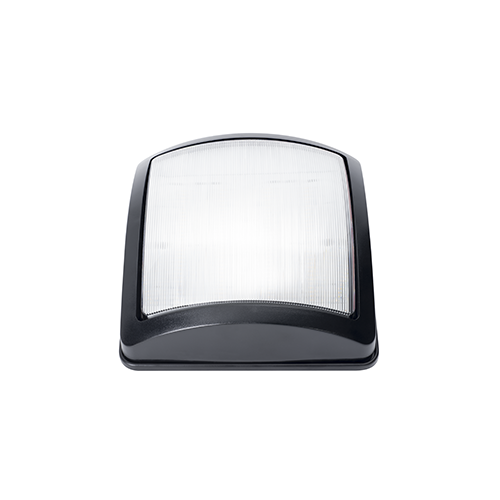

Swoop SWP1212 brings an architectural feel to a robust vandal resistant, IP66 rated, 5” inch deep square fixture. It features a durable, color-impregnated, polycarbonate housing supported by a marine grade, die cast aluminum base plate to provide a lighting fixture that will survive in any challenging environment. Its curved lens is made from a one-piece injection molded UV stabilized prismatic polycarbonate with minimum 0.140” wall thickness. SWP1212 is available in 2700K, 3000K, 3500K, 4000K, and 5000K CCT with 82 CRI.
Read More
Read Less
Light Source LED - Static
Lumens 200 LM, 400 LM, 1500 LM, 3000 LM, 4500 LM, 5600 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 82
Compliance Listing BAA, CA Title 20
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Surface Light
Series SWP1212HO, SWP1212
Application Type Behavioral Health, Education, Vandal Resistant
Fixture Wattage 15, 25, 40, 50
Voltage Rating 120, 120-277, 277, 347
Shape Curved

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-SWOOP-SWP1212HO-LED-HIGH-OUTPUT.pdf SWP1212 LED High Output 6/24/2021 View
    SPEC SHEET LUMINAIRE-LED-SWOOP-SWP1212-LED.pdf SWP1212 LED Standard 7/6/2022 View
    SPEC SHEET LUMINAIRE-LED-SWOOP-SWP1212-LED-AMBER.pdf SWP1212 LED Amber 7/6/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions InstallationSheet-SWP610-SWP1212-LED.pdf SWP610 & SPW1212 Surface Mount 3/18/2020 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet SWP1212-REPLACEMENT-PARTS.pdf SWP1212 and SWP1212HO Replacement Parts 6/21/2021 View
