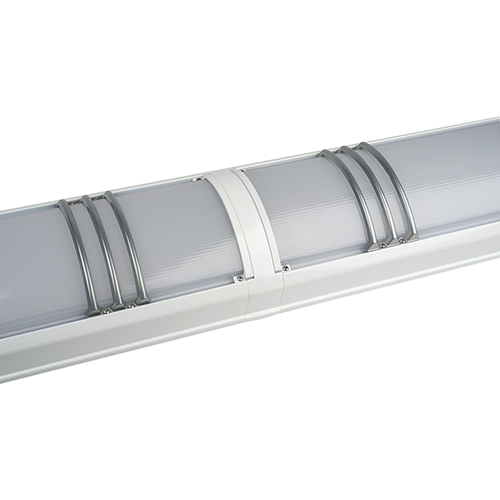

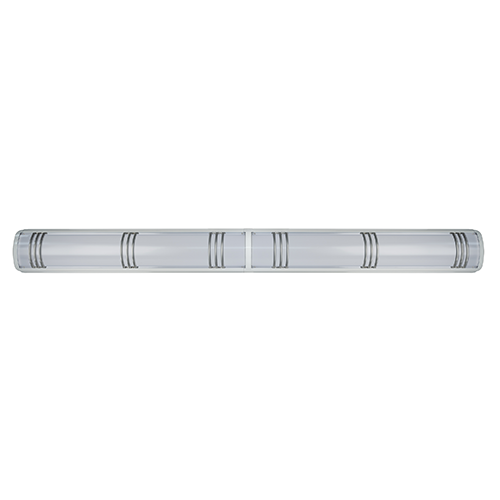

SPC8L Linear, Continuous Run

8" Wide Sonar Vandal Resistant LED Fixture for Linear Runs. Ceiling, Pendant or Wall Mount.

By Luminaire LED

    Buy America(n)
  • Overview
  • Specifications
The Sonar SPC8L series offers architectural flexibility while maintaining maximum vandal resistance. A wide variety of grill configurations and colors are available, which can be combined for linear runs. The all aluminum body construction enables the SPC8L to be used in any environment. The SPC8L fixture is available in 2700K, 3000K, 3500K, 4000K, 5000K. Optional Microwave or Bluetooth connected occupancy sensors can be mounted discreetly behind the lens for a clean fixture appearance. Natatorium finish is standard for the SPC8L.
Read More
Read Less
Light Source LED - Static
Lumens 1400 LM, 2100 LM, 3000 LM, 4100 LM, 5200 LM, 5700 LM, 8000 LM, 11,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Linear
Series SPC8L
Application Type Education, Natatorium, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 100, 15, 20, 25, 40, 50, 70
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-SONAR-SPC8L-LED.pdf SPC8L Linear LED 7/21/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions InstallationSheet-SPC8L-LED.pdf SPC8L Installation Instruction Sheet 3/18/2020 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet SPC8-REPLACEMENT-PARTS.pdf SPC8 Replacement Parts 7/1/2021 View
