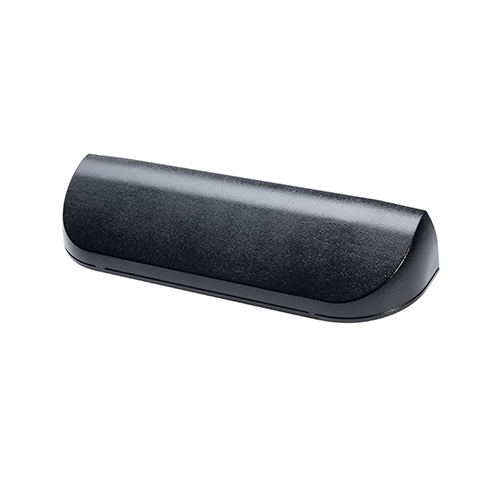

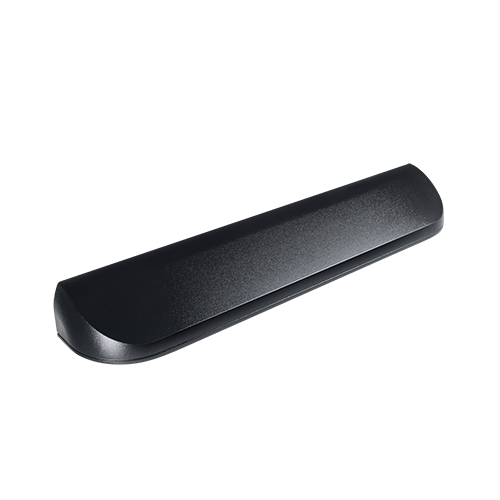

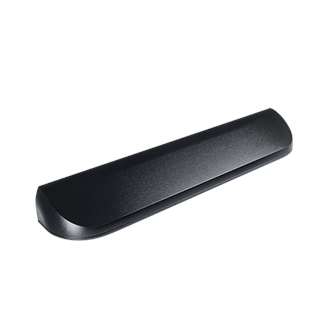

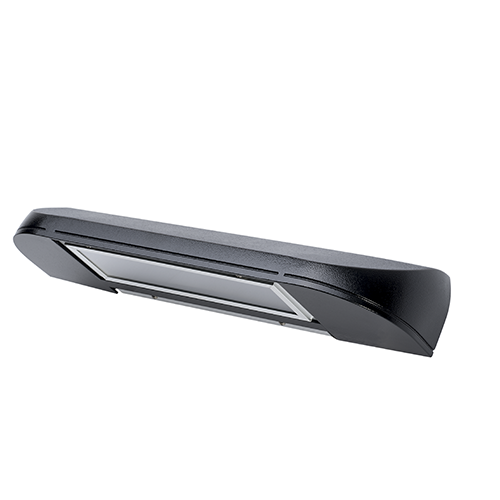

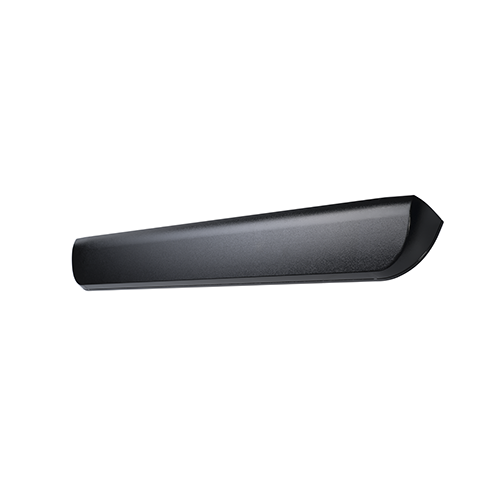

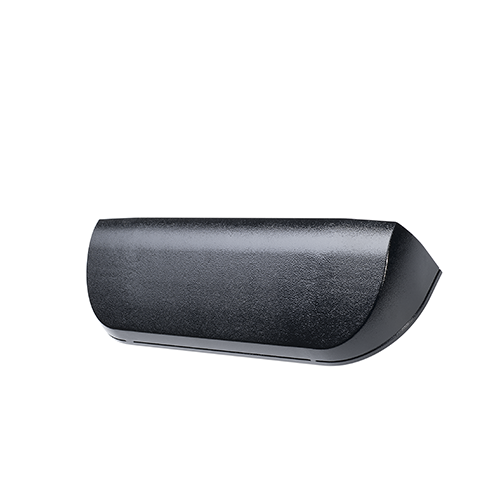

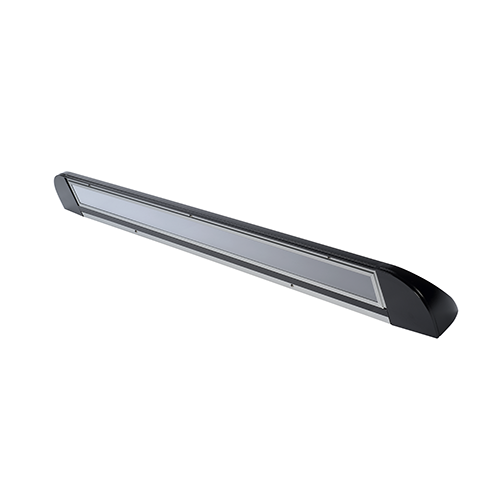

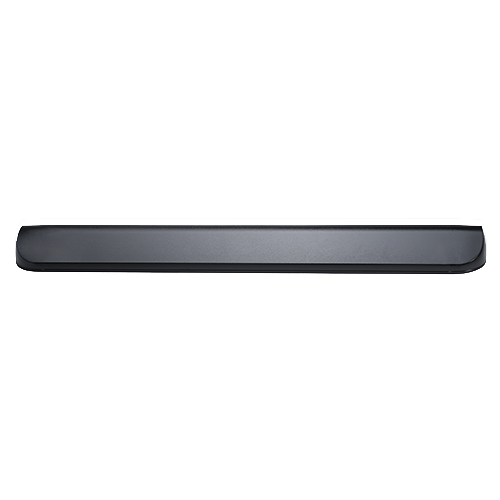

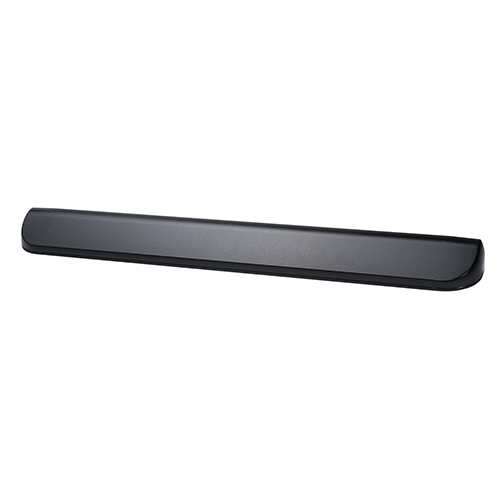

AEL Wallpack

Vandal Resistant Architectural Full Cut-Off Path of Egress LED Luminaire. Standard LED CCTs or Amber.

By Luminaire LED

    Buy America(n)
  • Overview
  • Specifications
AEL combines a unique, patented design shaped with high performance, full cut-off optics to achieve completely unobtrusive illumination of a space or path of egress. When mounted over a doorway, the fixture is perceived as an element of the building structure and, additionally, provides water protection in the form of a drip cap over the doorway. Multiple lengths are available to match any given door opening and a unique quick mount system facilitates installation and maintenance. AEL is available in 2700K, 3000K, 3500K, 4000K, 5000K or single-frequency Amber.
Read More
Read Less
Light Source LED - Static
Lumens 290 LM, 300 LM, 500 LM, 600 LM, 700 LM, 800 LM, 850 LM, 900 LM, 1200 LM, 1300 LM, 1500 LM, 1600 LM, 1900 LM, 2000 LM, 2900 LM, 3000 LM, 3100 LM, 3200 LM, 3300 LM, 3400 LM, 3500 LM, 3600 LM, 3700 LM, 3900 LM, 5800 LM, 5900 LM, 6000 LM, 6200 LM, 6400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 82
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Wallpack
Series AEL
Application Type Education, Healthcare, Natatorium, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 10.8, 14.9, 17.6, 18.8, 26.3, 27.9, 35.2, 52, 9.4
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less
