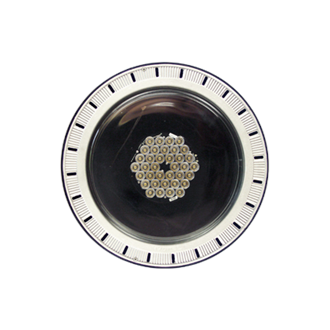

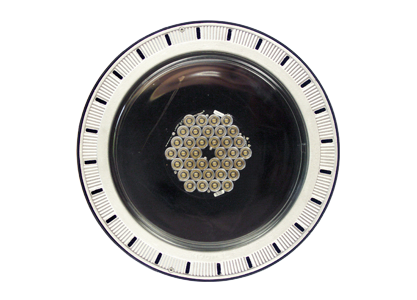

RFM98 LED Retrofit

LED Retrofit Kit for M9800 Series

By Hydrel

    Buy America(n)
  • Overview
  • Specifications

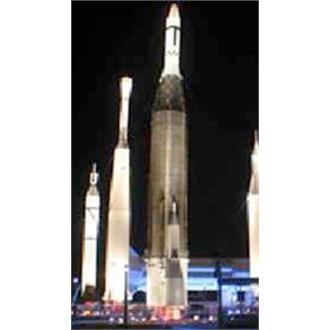

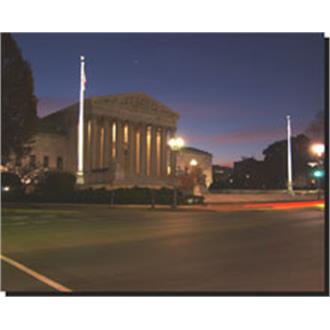

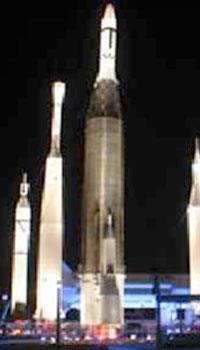

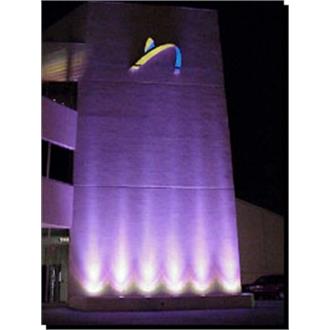

The M9800 Series Modular In-grade lights are multi-purpose units designed for flush mounting in soil or concrete. The M9800's are used to uplight large architectural and landscape features. These are the first, modular 400 watt in-grade uplights which provide a new alternative to conventional flood lighting. The units consist of a factory sealed, thermally protected Lamp Module and epoxy encapsulated Power Module placed in a secured Rough-In Section (RIS) which includes channeled convective cooling, an integral junction box, and door assembly. The M9800 has a 460 mm (18 in.) footprint with a cylindrical RIS. The RFM98 can retro-fit into existing housings for a quick and easy installation.
Read More
Read Less
Light Source LED - Static
Lumens 3100 LM, 5300 LM
CCT / LED Color 3000 K, 4100 K, 5000 K, 5300 K
CRI 80
Product Type Retrofit Kit
Compliance Listing BAA
Environmental Listing IP68, Wet Location
Regulatory Listing CSA, cUL
Dimming Protocol 0-10V
Light Distribution Flood, Horizontal Flood, Horizontal Spot, Medium Flood, Narrow Spot, Very Wide Flood, Wide Flood
Fixture Wattage 54
Voltage Rating 120-277
Mounting Type In-grade
Series RFM98

Read More Read Less
