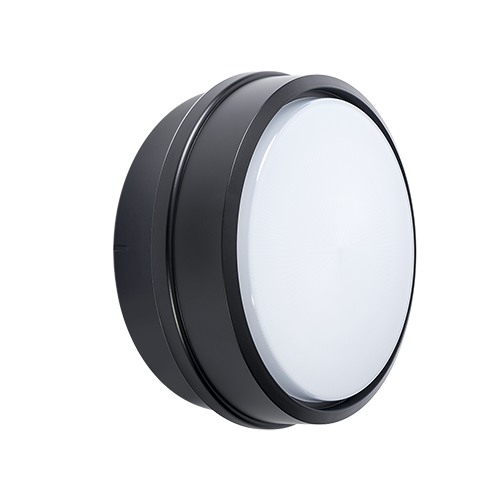

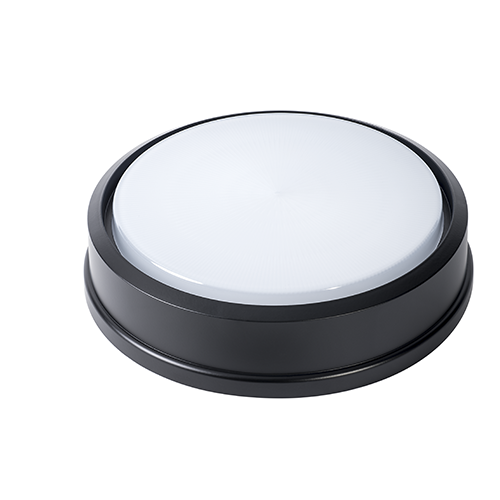

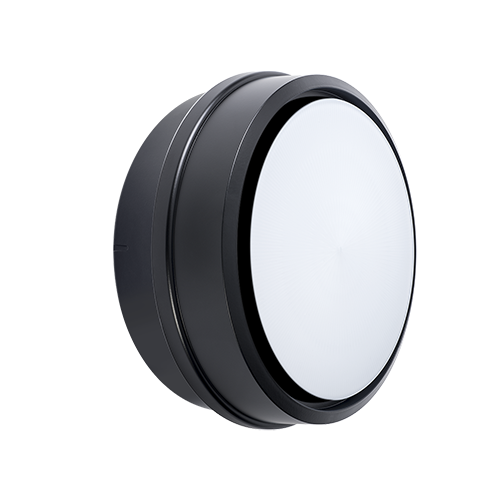

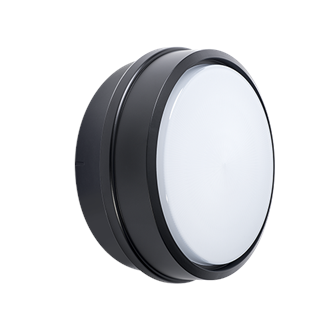

APX13 Flat Lens Surface Light

13" ANYX Series Vandal Resistant Flat Lens Fixture with Decorative Trim Options. Standard LED or High Output LED.

By Luminaire LED

    Buy America(n)
  • Overview
  • Specifications

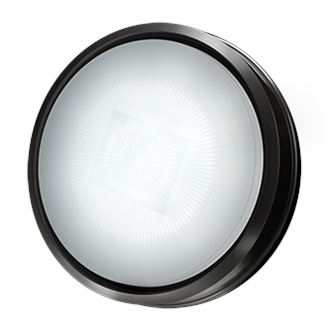

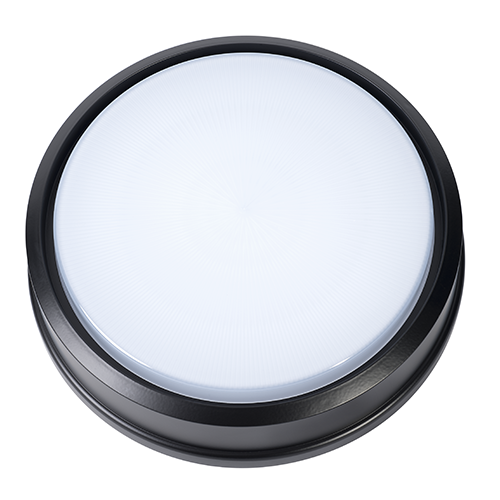

Apex APX13 is a circular vandal resistant fixture with a flat lens. It features a die cast, marine grade aluminum external trim, as well as an innovative twist-lock system. Measuring 13” in diameter and 3” in depth, it is available in 2700K, 3000K, 3500K, 4000K, and 5000K CCT with 82 CRI. The APX13 has been installed successfully in large scale projects such as dorm rooms, unsecured hallways, transportation terminals and schools.
Read More
Read Less
Light Source LED - Static
Lumens 1000 LM, 1300 LM, 1600 LM, 2000 LM, 3800 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Surface Light
Series APX13, APX13HO
Application Type Education, Healthcare, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 15, 25, 50
Voltage Rating 120, 120-277, 277, 347
Shape Round

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-APEX-APX13HO-LED-FULL-CUT-OFF-HIGH-OUTPUT.pdf APX13 LED Full Cut Off (FCL), High Output 3/2/2021 View
    SPEC SHEET LUMINAIRE-LED-APEX-APX13HO-LED-HIGH-OUTPUT.pdf APX13 LED High Output 3/2/2021 View
    SPEC SHEET LUMINAIRE-LED-APEX-APX13-LED.pdf APX13 LED Standard 3/2/2021 View
    SPEC SHEET LUMINAIRE-LED-APEX-APX13-LED-FULL-CUT-OFF.pdf APX13 LED Full Cut Off (FCL) 3/2/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Installation Sheet for APX13 with SHCAB.pdf APX13 with SHCAB Installation Instruction Sheet 4/14/2020 View
    Installation Instructions InstallationSheet-APX13-LED.pdf APX13 Installation Instruction Sheet 3/13/2020 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet APX13-REPLACEMENT-PARTS.pdf APX13 Replacement Parts 6/22/2021 View
