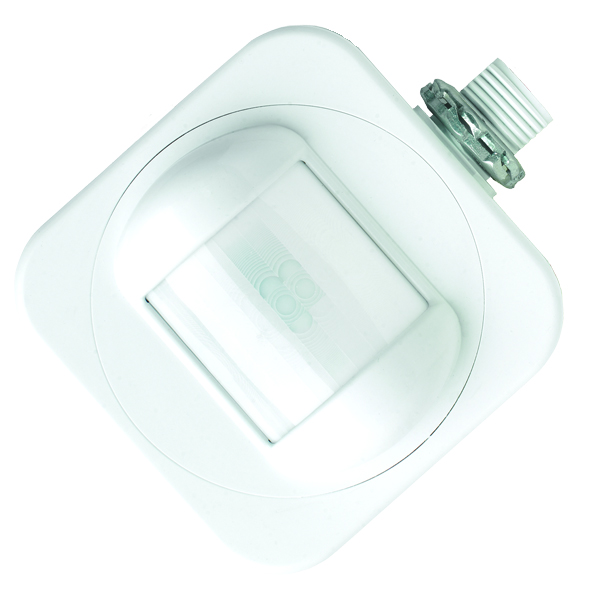

Product Image

HMRB 10 480

High Bay End of Aisle, Fixture, Line Volt, 480 VAC

By SensorSwitch

  • Overview
  • Specifications
High bay aisleway lighting control is made simple with the HMRB 10 480 Series occupancy sensor. This unique sensor is line powered and enables direct switching of 480 VAC lighting loads. Designed to mount 30-45 ft high to a standard junction box, this sensors view pattern extends 110 ft down an aisleway.

The HMRB 10 480 provides 5 wires for installation. Two pairs of hot and load wires dual switch the 480 VAC line feeds to a ballast, thus meeting the NEC requirements for simultaneously disconnecting all ungrounded conductors. High humidity or cold damp environments are accommodated by adding the LT option.
PIR Occupancy Detection
Up to 45 ft Mounting
Coverage up to 110 Linear Feet
Two Self-Contained Relays - No Power Packs needed
Dual Switching Relays
No Minimum Load Requirements
Time Delay: 30 sec to 20 min
Green LED Status indicator
Read More
Read Less
Control Device Type Occupancy Sensor
Mounting Type Fixture Attached
Product Type Sensor
Color White
Finish Gloss
Voltage Rating 480
Environmental Listing High Humidity
Series HMRB
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HMRB 10 480 HMRB 10 480 High Bay Sensor, Fixture Mount, Line Voltage Specification Sheet View
