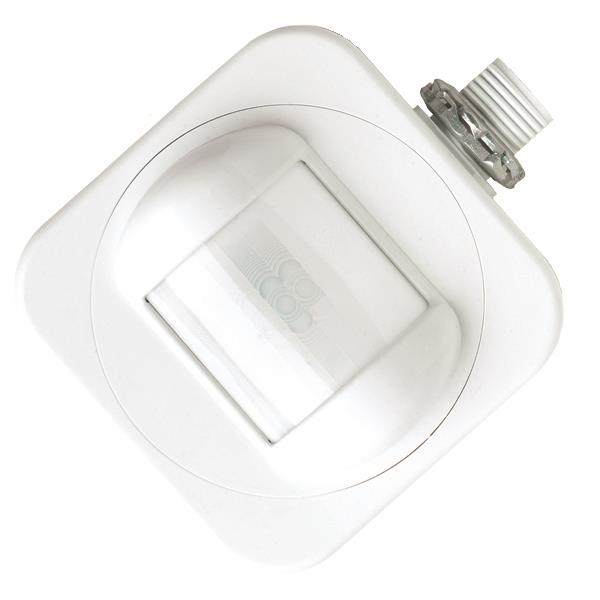

HMRB 10

High Bay End of Aisle, Fixture, Line Volt, PIR
  • Specifications
High Bay Aisle Way lighting control is easily accomplished by the HMRB 10 Series Passive Infrared (PIR) occupancy sensor. This line voltage sensor easily installs to a standard junction box through a 1/2 inch knockout. Designed to be mounted 30 to 45 ft high at the end of the aisle; the HMRB 10 views up to 110 linear ft of aisle way space. Using an internal line voltage relay, the HMRB 10 SH controls HID Bi-Level fixtures using Class 1 wiring means, whereas the HMRB 10 controls fluorescent fixtures directly without the need of a Power Pack. For freezer applications, use the HMRB 10 LT or HMRB 10 SH LT for cold temperature and corrosion resistant characteristics. If individual fixture control is desired, refer to CMR 6 and CMRB 6 Series sensors.
PIR Occupancy Detection
Up to 45 ft Mounting
Coverage up to 110 Linear Feet
Self-Contained Relay - No Power Pack needed
No Minimum Load Requirements
Time Delay: 30 sec to 20 min
Green LED Indicator
Read More
Read Less
Control Platform Sensor Switch Standalone
Control Device Type Dimming Switch
Mounting Type Fixture Attached
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating 347
Environmental Listing High Humidity
Series HMRB
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet HMRB 10 HMRB 10 High Bay Sensor, Fixture Mount, Line Voltage Specification Sheet 6/22/2015 View
