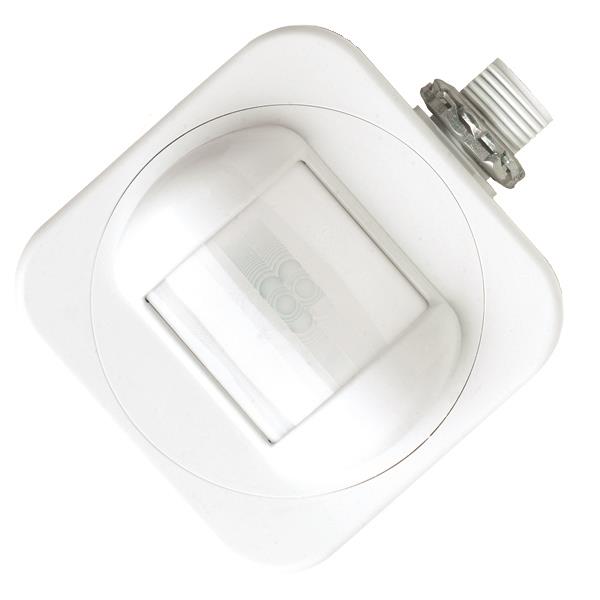

Product Image

HMB 10

High Bay End of Aisle, Fixture, Low Volt, PIR

By SensorSwitch

  • Overview
  • Specifications
High Bay Aisle Way lighting control is easily accomplished by the HMB 10 Series Passive Infrared (PIR) occupancy sensor. This low voltage sensor easily installs to a standard junction box through a 1/2 inch knockout. Designed to be mounted 30 to 45 ft high at the end of the aisle; the HMB 10 views up to 110 linear ft of aisle way space. When used with standard PP20 power packs, these sensors are ideal for on/off control of T5/T8 fluorescent lighting. However, HID bi-level fixtures can also be controlled when the HMB 10 is partnered with a PP20 SH power pack with the start-to-high feature. For inner aisle coverage consider the CMB 50 Bi-Directional Aisle Way sensor, or the CMB 6 Series sensor for 360~176; coverage. If individual fixture control is preferred, the HMRB 10 Series sensor is recommended.

Up to 45 ft Mounting
Aisle Way Coverage Pattern
Time Delay: 30 sec to 20 min
Alternating Relay Operation
Two Self-Contained Relays - No Power Packs needed
No Minimum Load Requirements
Push-Button Programmable
Green LED Indicator
100 Hr. Lamp Burn-in Timer Mode
Read More
Read Less
Control Device Type Dimming Switch
Mounting Type Fixture Attached
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating Low Voltage
Environmental Listing High Humidity
Series HMB
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HMB 10 HMB Low Voltage, Fixture Mount High Bay, End of Aisle Occupancy Sensor Spec Sheet View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC7-002.pdf RM,CM,CMB Ceiling, Recessed & Fixture Mount, Low Voltage Occupancy Sensors Ins Programming Sheet. View
