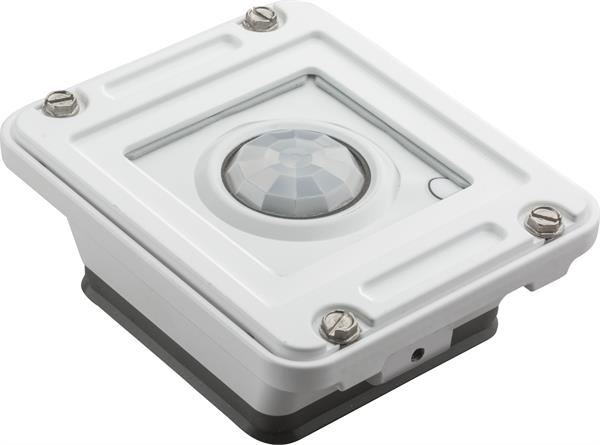

Explore how nLight controls enhance Industrial fixtures

Check it out!

FEX Low Bay

Industrial Linear LED Low Bay

By Lithonia Lighting

    DLC StandardCA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

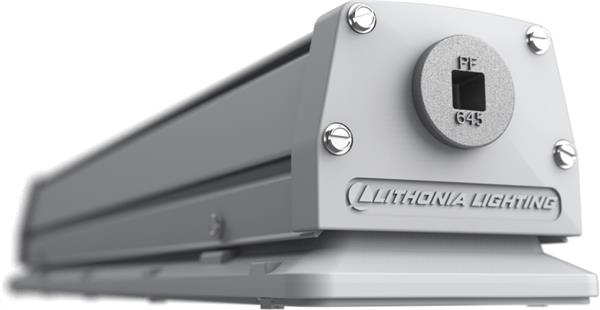

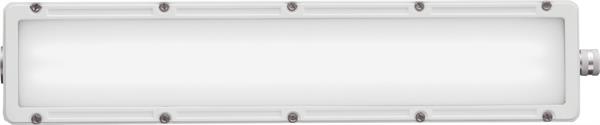

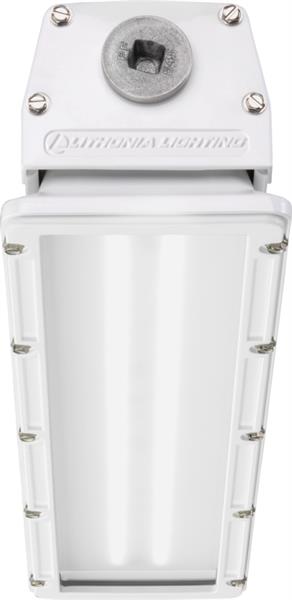

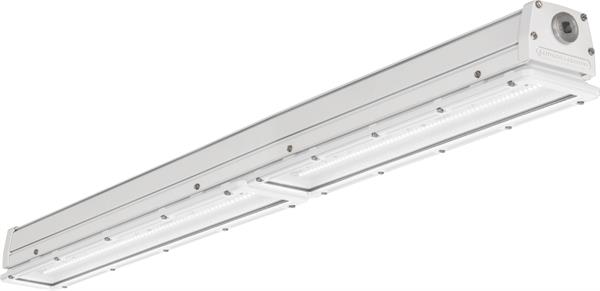

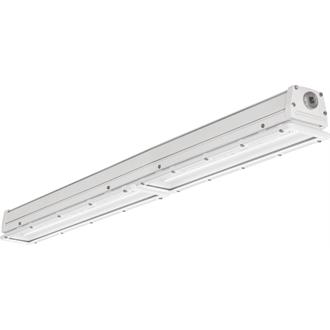

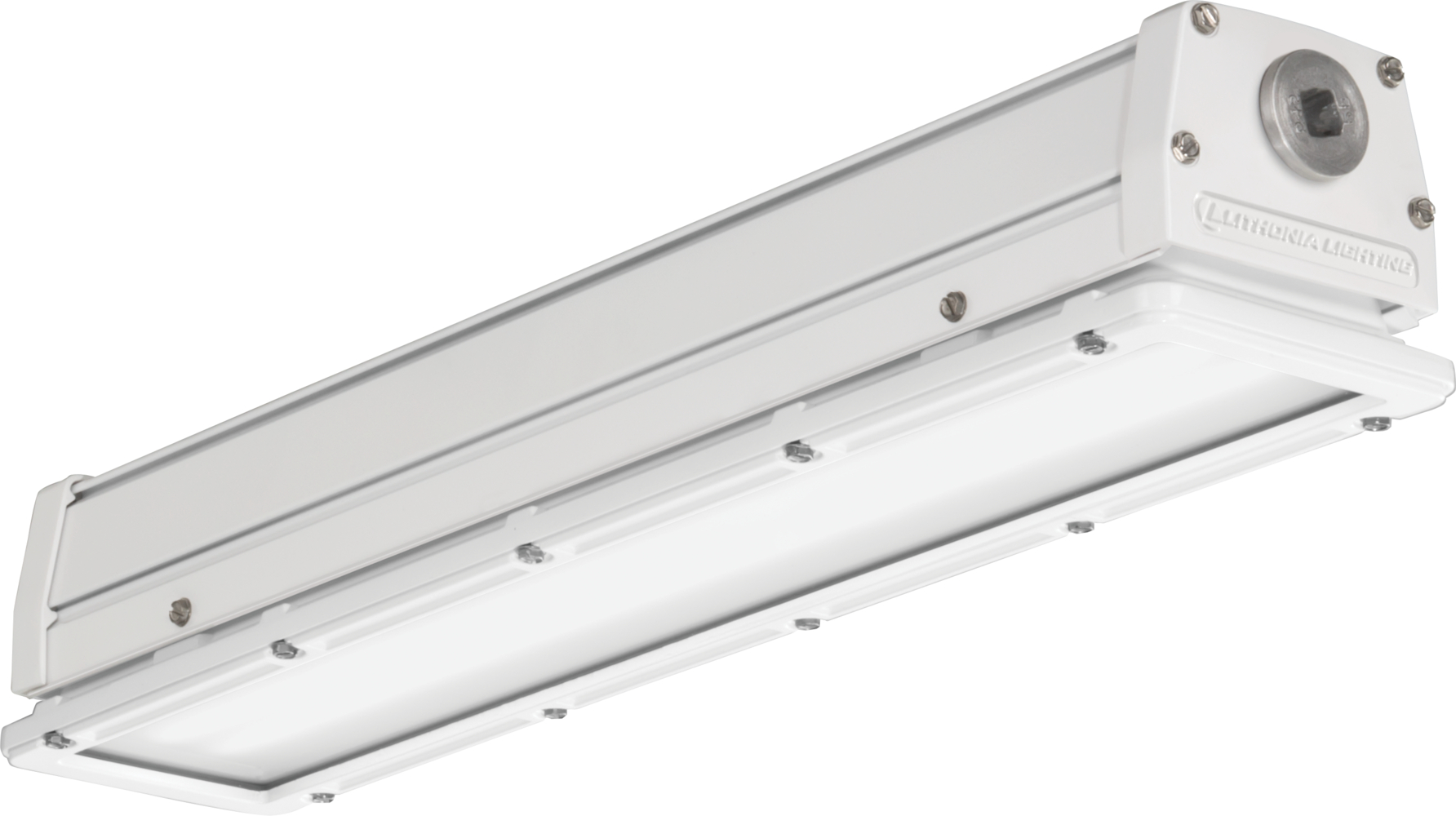

The FEX is an entirely new class of product for the Lithonia Lighting® Vapor Tight Channel. Instead of your traditional plastics and fiberglass with limited thermal capabilities, FEX is an all metallic low bay, vapor tight strip. This high abuse, high heat, high seal fixture is perfect for your heavier industrial applications where plastics and fiberglass just won’t make the cut.

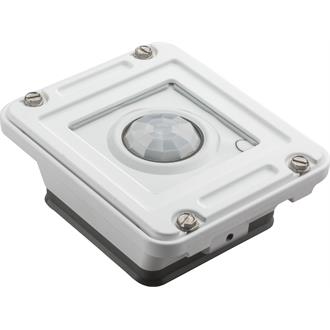

The FEX now boasts up to 28000LM in a 4ft fixture and 9000LM in a 2ft fixture, both glass & polycarbonate lens for different environmental challenges, up to 70Cº ambient ratings on low lumen packages – significantly up from the previous generation -- while maintaining IP66, 67, and 69K ratings and 6kV surge protection standard! The FEX series update also includes the new Independent driver system (IDS) option for dual power inputs in tunnels and in safety zones! Optimize FEX with one of several embedded control options, including nLight® networked lighting controls, your go-to solution for energy savings and rebate potential.

Updated Key Listings
  • CSA Listed to UL 1598

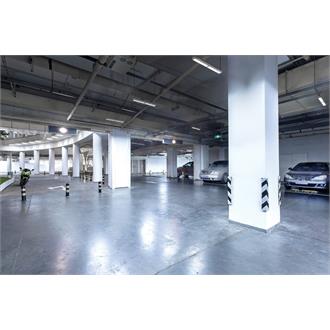

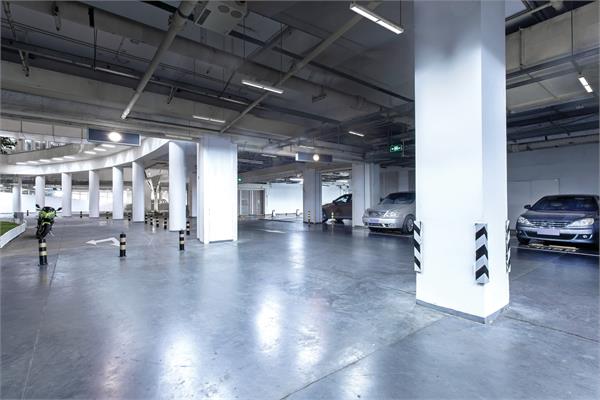

  • DLC Premium, Standard, Parking Garage Listed
  • Wet Location Listed

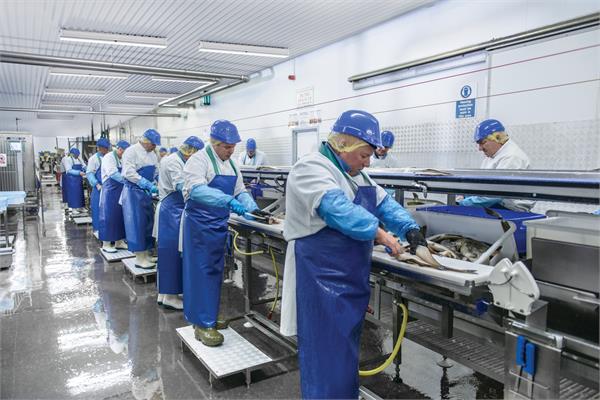

  • NSF2 Splash Zone
  • CSA Marine Listed
  • IP65, 66, 67, 69K Rated
  • CSA Ambient Rated up to 70Cº
Read More
Read Less
Size 4FT
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 12,000 LM, 14,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 28,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Low Bay
Compliance Listing BAA, CA Title 20, DLC Standard
Environmental Listing IP65, IP66, IP67, IP69K, Marine Rated, NEMA 4X, NSF, Wet Location
Regulatory Listing cCSAus
Dimming Protocol 0-10V
Fixture Wattage 104, 34, 52
Voltage Rating 347-480
Color Black, Silver, White

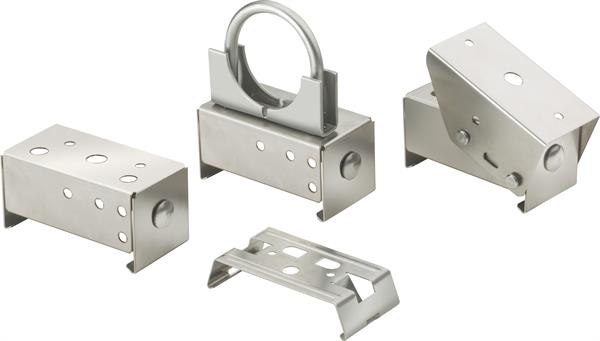

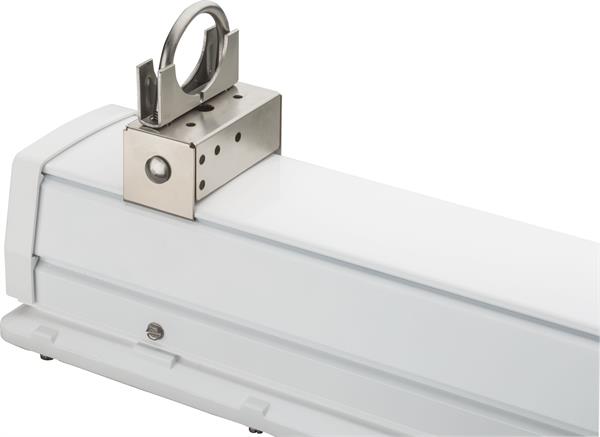

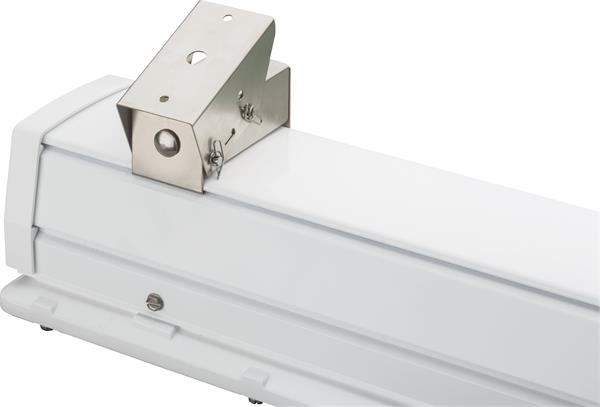

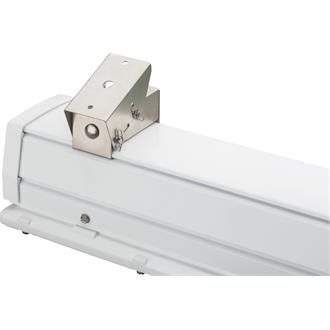

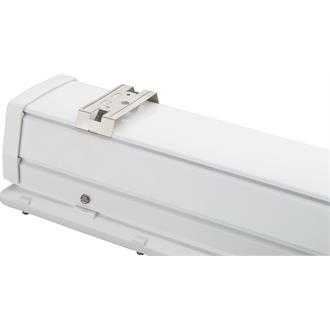

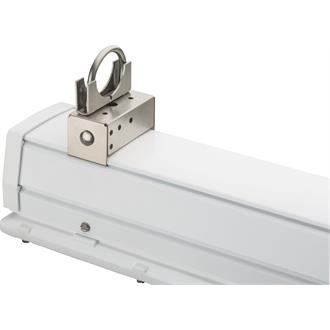

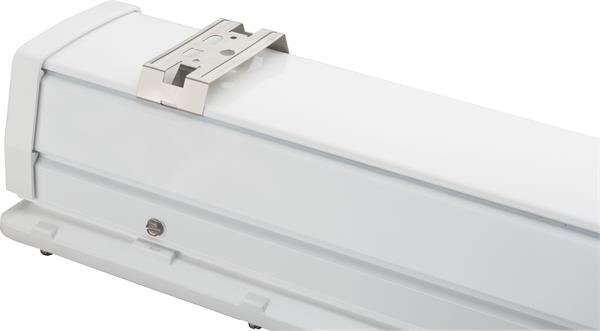

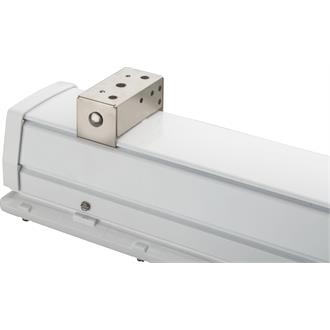

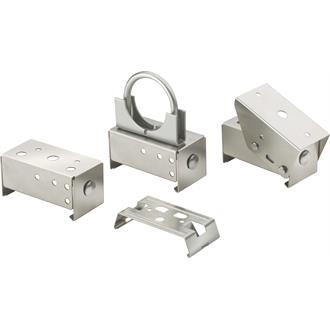

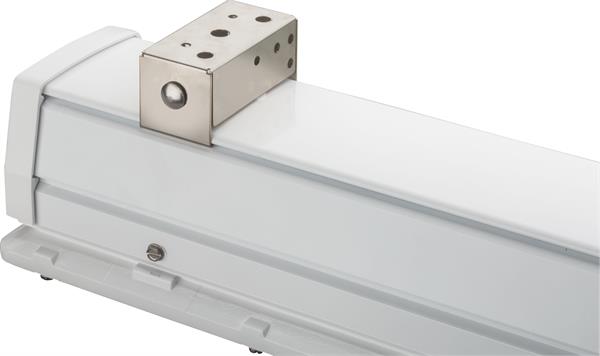

Mounting Type Pole Mount, Surface, Suspended
Series FEX

Read More Read Less
