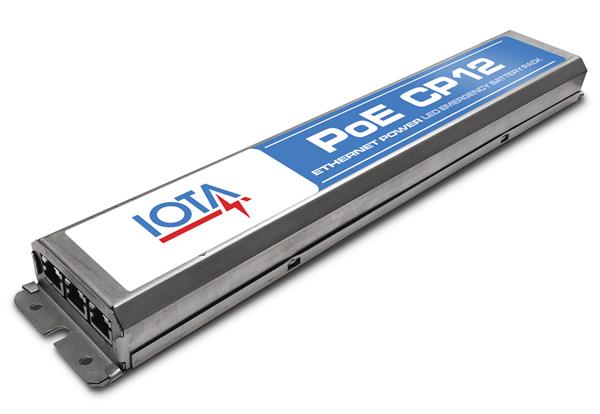

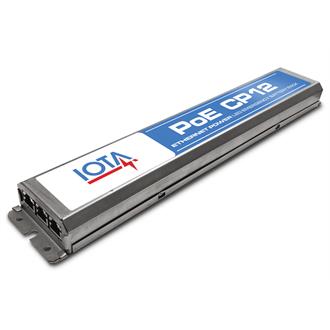

IOTA POE CP12

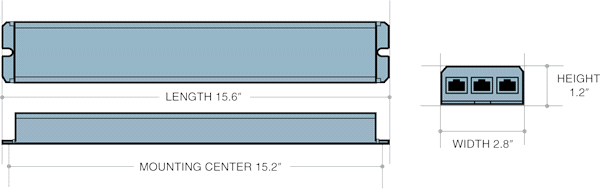

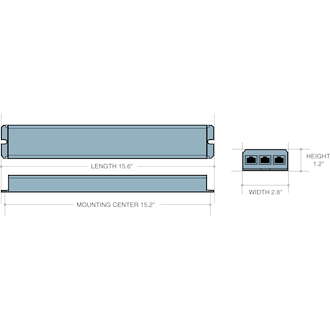

Dimensions - POE CP12 - Length: 15.6in, Width: 2.8in, Height: 1.2in, Mounting Center: 15.2in

POE CP12 Emergency LED Driver

12 Watt Constant Power LED Emergency Driver for Power-over-Ethernet Applications

By IOTA

  • Overview
  • Specifications
The POE CP12 from IOTA Engineering is a UL Listed emergency lighting LED battery pack (LED emergency driver) for Power over the Ethernet (PoE) systems, and works in conjunction with a PoE normal lighting LED driver to convert a PoE normal lighting luminaire to an emergency luminaire compliant with NFPA-101. In the event of a power failure, the POE CP12 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available with different output configurations for individual fixture requirements.
LED Operation
  • 12 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Power-over-Ethernet Input
  • UL Listed for field and factory installation
  • Constant Power Design maintains illumination throughout the 90-minute runtime with no light degradation
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers, or strips, reducing product SKUs for emergency options.
Features
  • UL 924 Listed, UL Listed to FTBV
  • UL 1310 Certified, Output Class 2 Compliant
  • RJ-45 or hardwire connections to Driver and LED array available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Load Voltage Rating 10-60 VDC
Output Power 12 Watts
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing UL
Compliance Listing ROHS
Environmental Listing Damp Location
Series POE

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET POE CP12 Specifications Specification Sheet for POE CP12 Models 9/25/2019 View

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model POE CP12 STEP File - 3D Model of POE CP12 units 7/15/2020
    Installation Instructions POE CP12 V1A V1A - Hardwire Connections to LED Load 9/24/2019 View
    Installation Instructions POE CP12 V1B V1B - RJ-45 Connections to LED Load 9/24/2019 View
    Wiring Diagram Emergency Operation Only - V1A DWG File - Emergency operation only without normal POE driver - V1A model (hardwire connections to load) 7/10/2020
    Wiring Diagram Emergency Operation Only - V1A PDF File - Emergency operation only without normal POE driver - V1A model (hardwire connections to load) 7/10/2020 View
    Wiring Diagram Emergency Operation Only - V1B DWG File - Emergency operation only without POE normal driver - V1B model (RJ-45 connections to load) 7/10/2020
    Wiring Diagram Emergency Operation Only - V1B PDF File - Emergency operation only without POE normal driver - V1B model (RJ-45 connections to load) 7/10/2020 View
    Wiring Diagram Typical Installation - V1A DWG File - Typical installation to POE luminaire - V1A model (hardwire connections to LED load and normal driver) 7/10/2020
    Wiring Diagram Typical Installation - V1A PDF File - Connections to a POE luminaire - V1A model (hardwire connections to LED load and normal driver) 7/10/2020 View
    Wiring Diagram Typical Installation - V1B DWG File - Typical installation to POE luminaire - V1B model (RJ-45 connections to led load and normal driver) 7/10/2020
    Wiring Diagram Typical Installation - V1B PDF File - Typical installation to POE luminaire - V1B model (RJ-45 connections to led load and normal driver) 7/10/2020 View
