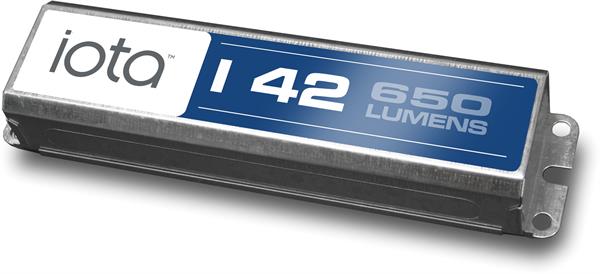

I42 Emergency Ballast

Emergency Ballast for 4-Pin LED Retrofit (TLED) and Compact Fluorescent Luminaires

By IOTA

  • Overview
  • Specifications
The I42 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I42 switches to the emergency mode and operates one or two of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can. The I42 utilizes AC output to ensure compatibility with new lamp technologies, and features lamp selector leads for optimizing light output for designated lamp types.
Initial Lumen Output
  • 650 Lumens
Lamps Operated
  • Select LED Retrofit Tubes
  • (1) 10W-42W 4-Pin Compact
  • (2) 10W-18W 4-Pin Compact
  • (1) 18W-35W Long Compact
Features
  • AC output for compatibility with low mercury content amalgam lamps
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit Isolation protects unit when load is absent
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Six mounting configurations available
  • Galvanized steel case

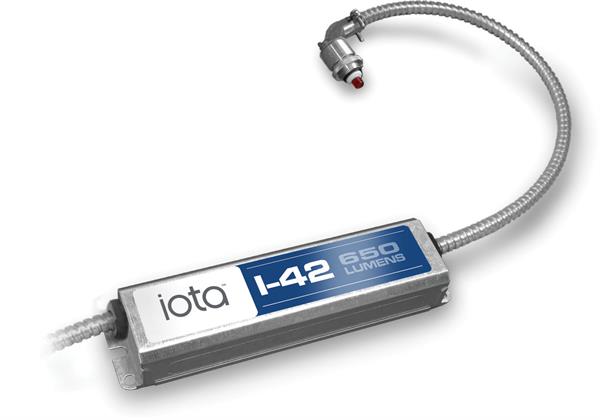

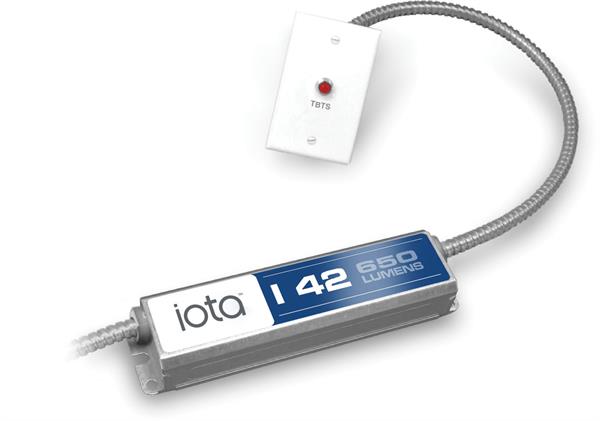

  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Lamp selector leads optimize light output for designated lamp type
  • Rated for use in damp locations, plenum, and enclosed and gasketed fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series I42
